INSTALLATION : POWER AND DATA CABLING REQUIREMENTS
2
02.9687.0001 C 31 October 2013 13
WARNING: DO NOT connect to three-phase service in countries with 240 volt power.
For single-phase power at 100 to 240 volts RMS:
For three-phase power at 208 volts RMS:
WARNING: It is not recommended to power any VARI❋LITE luminaire from a dimmer - even in
'NONDIM' mode. Dimmer and non-dim modules are not suitable sources of power because their
output modifies the AC wave form. This may work for a short time, but will eventually result in power
problems, luminaire mis-operation and/or failure and may void the luminaire’s warranty.

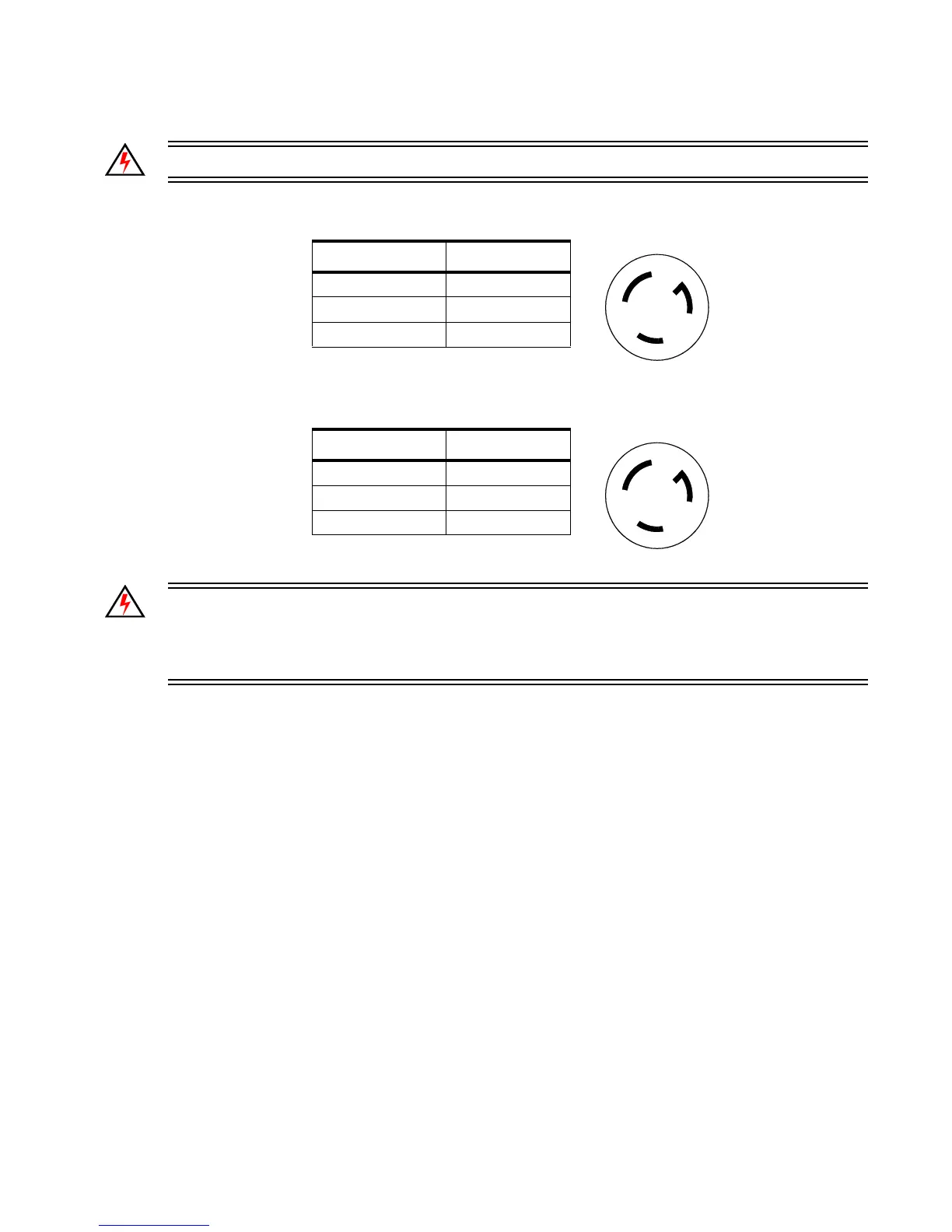

Connection Pin
AC Neutral X
AC Line Y
Ground (Earth) G
Connection Pin
Phase 1 X
Phase 2 Y
Ground (Earth) G
X
Y
G
X
Y
G
