Power and Data Cabling Requirements
Power
The luminaire requires standard AC power distribution from 100-240 VAC, 50/60 Hz. Current
required depends on the AC supply voltage and product model. Refer to “Current vs. Voltage” on
page 14 for all models covered in this manual.
Note: The mating Neutrik PowerCon connector is supplied, however, you will need to purchase or
construct a cable appropriate for your application.

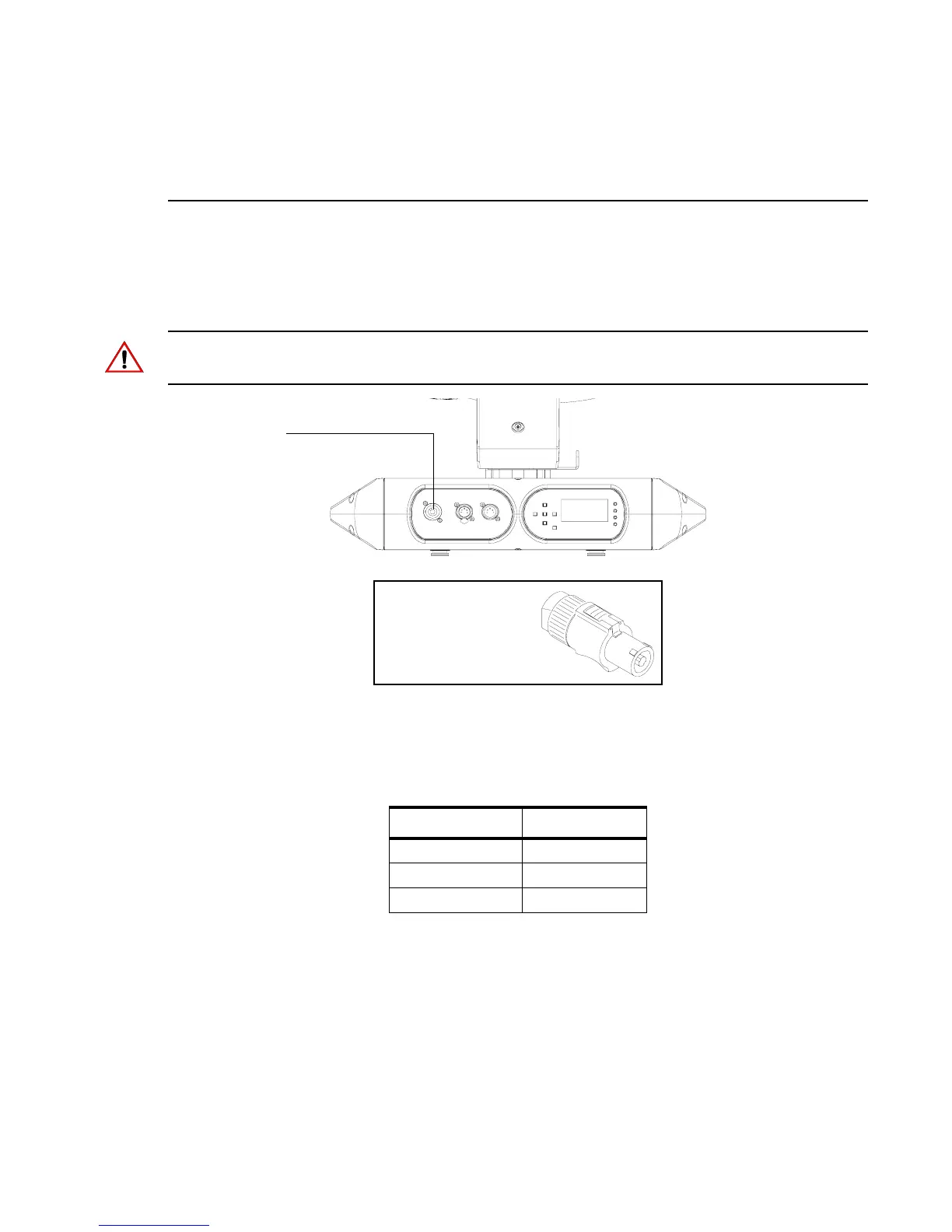

Figure 2-1: Power Connector
Depending on the application, the luminaire’s AC input cable may require a different connector. If
required, install a new connector meeting your requirements using the following wire color code
reference:
Neutrik PowerCon
Connector (supplied)
AC Power Input
3-Pole Neutrik PowerCon
Locking Connector for AC
Input Power
Wire* Connection
Green/Yellow AC Ground
Blue AC Neutral
Brown AC Line
* International (Harmonized) Standard
