Philips VL440 - Menu Operation; What Is the Menu System; Controls Operation

VARI❋LITE - VL440 / VL770 / VL880 LUMINAIRE USER’S MANUAL
62 31 October 2013 02.9687.0001 C
Menu Operation
What Is the Menu System?
The menu system is a programmable set of commands used to configure, address, operate, and test the
luminaire. The menu system is controlled at the Menu Display available at the enclosure input panel.

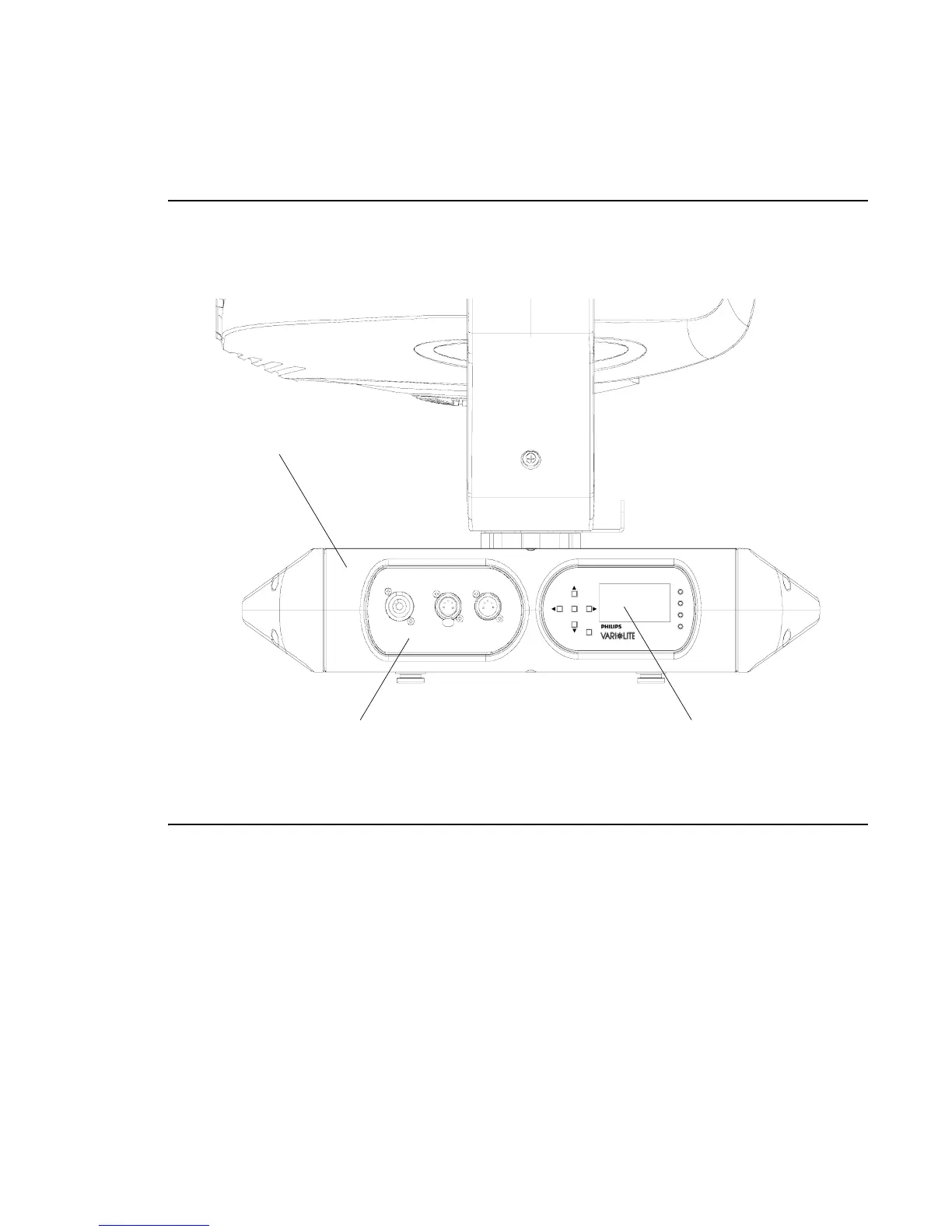

Figure 4-1: Menu Display Location
Controls Operation
The menu system is controlled by an ENTER, ESC (Escape), and four Arrow (YUVZ) buttons.
These buttons function are shown in Figure 4-2.
POWER
TX
RX
ERROR
ENTER
ESC
AC INPUT DATA THRU DATA IN
Menu DisplayEnclosure Input Panel
Luminaire
Enclosure
