MENU SYSTEM : MENU OPERATION
4
02.9687.0001 C 31 October 2013 63

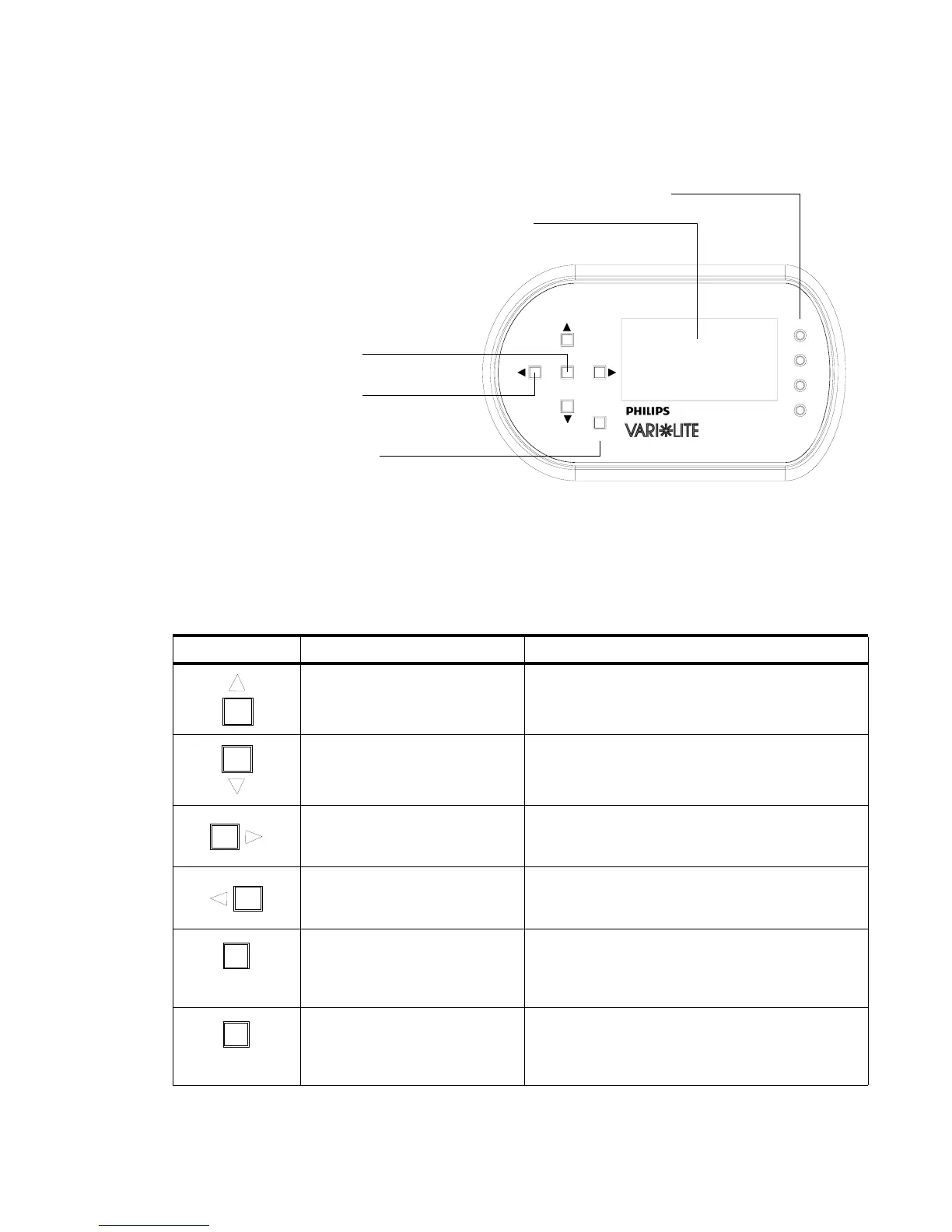

Figure 4-2: VL400 / VL440 / VL770 Spot Luminaire Menu Control
POWER
TX
RX
ERROR
ENTER
ESC
Enter Button
Arrow Keys
LCD Display - Displays all Data and Luminaire Settings
Escape (ESC)
(Left/Right/Up/Down)
Luminaire Status Indicators
(Power On, Transmitting DMX, Receiving DMX, Error in Luminaire Operation)
Table 1: Menu Control Buttons
Button Description Action
Up Arrow Menu Navigation / Data Selection
Down Arrow Menu Navigation / Data Selection
Right Arrow Menu Navigation / Data Selection
Left Arrow Menu Navigation / Data Selection
ENTER
Enter Button To Select or Change a Setting or Data Value
ESC
Escape Button
Used to Access Main Menu Parameters, Exit, or
Return to Previous Menu Item
