VARI❋LITE - VL440 / VL770 / VL880 LUMINAIRE USER’S MANUAL
32 31 October 2013 02.9687.0001 C

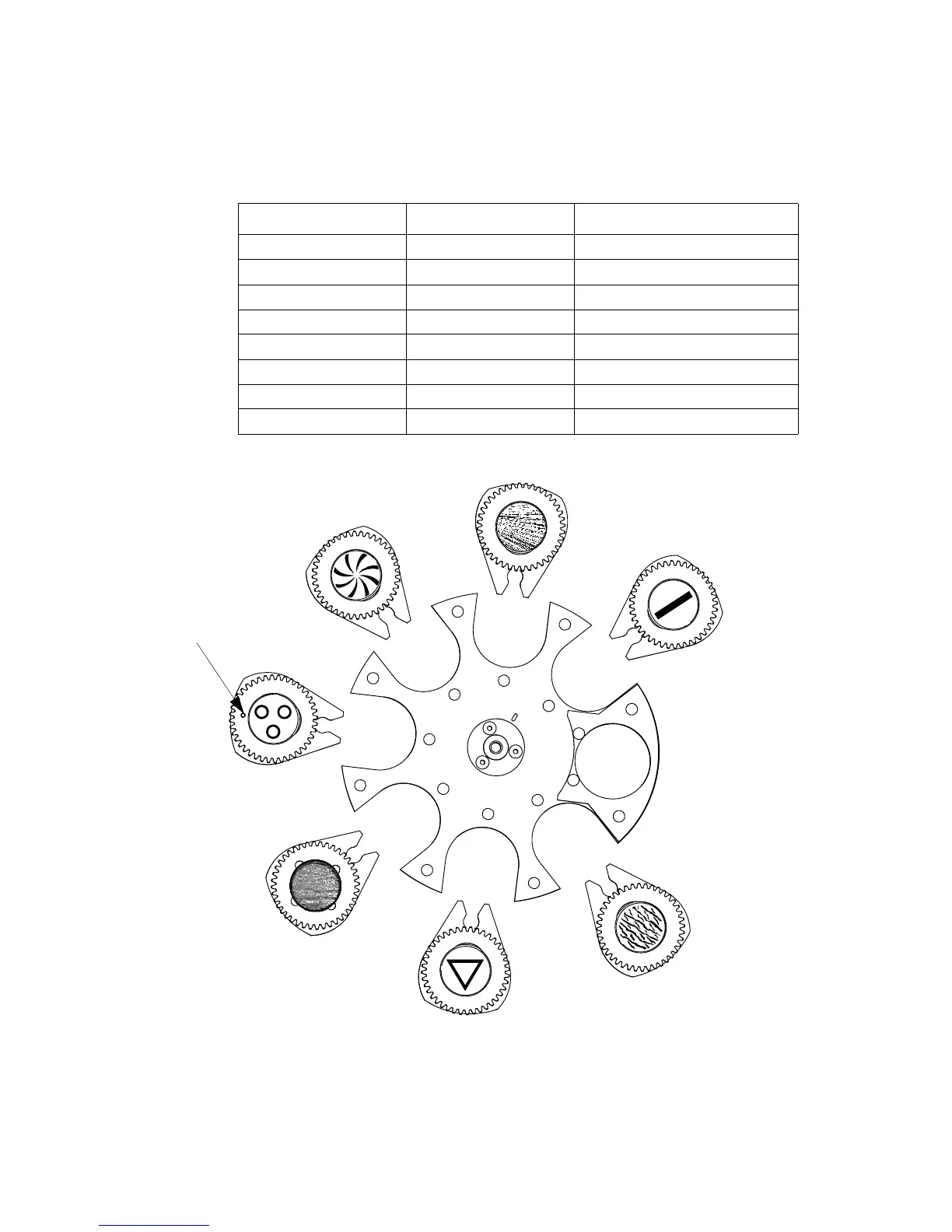

Figure 3-2: Rotating Gobo Wheel - Standard Gobo Load
Table 2: Rotating Gobo Wheel - Standard Effects and Positions
Position Gobo Gobo Part Number
0 (Open) None None
1 Vertical Slot 21.6004.4011
2 Alpha Rays 21.6004.7029
3 Pinwheel 2 21.6004.4322
4 Tri Cone 21.6004.6008
5 Glacier (gag) 21.9687.8002
6 Triangle 21.6004.4009
7 Shock Breakup 21.6004.7018
Open
Triangle Gobo
Tri Cone Gobo
(with locating magnet)
Open Position
(no gobo or gag)
Glacier Gag*
Pinwheel 2 Gobo
Alpha Rays Gobo
Vertical Slot Gobo
Shock Breakup Gobo
Locating Magnet
2
1
3
4
5
6
7
0
NOTE: *Glacier gag assembly can be installed
in any position EXCEPT position 4. This gag
assembly is not offered with a locating magnet.
