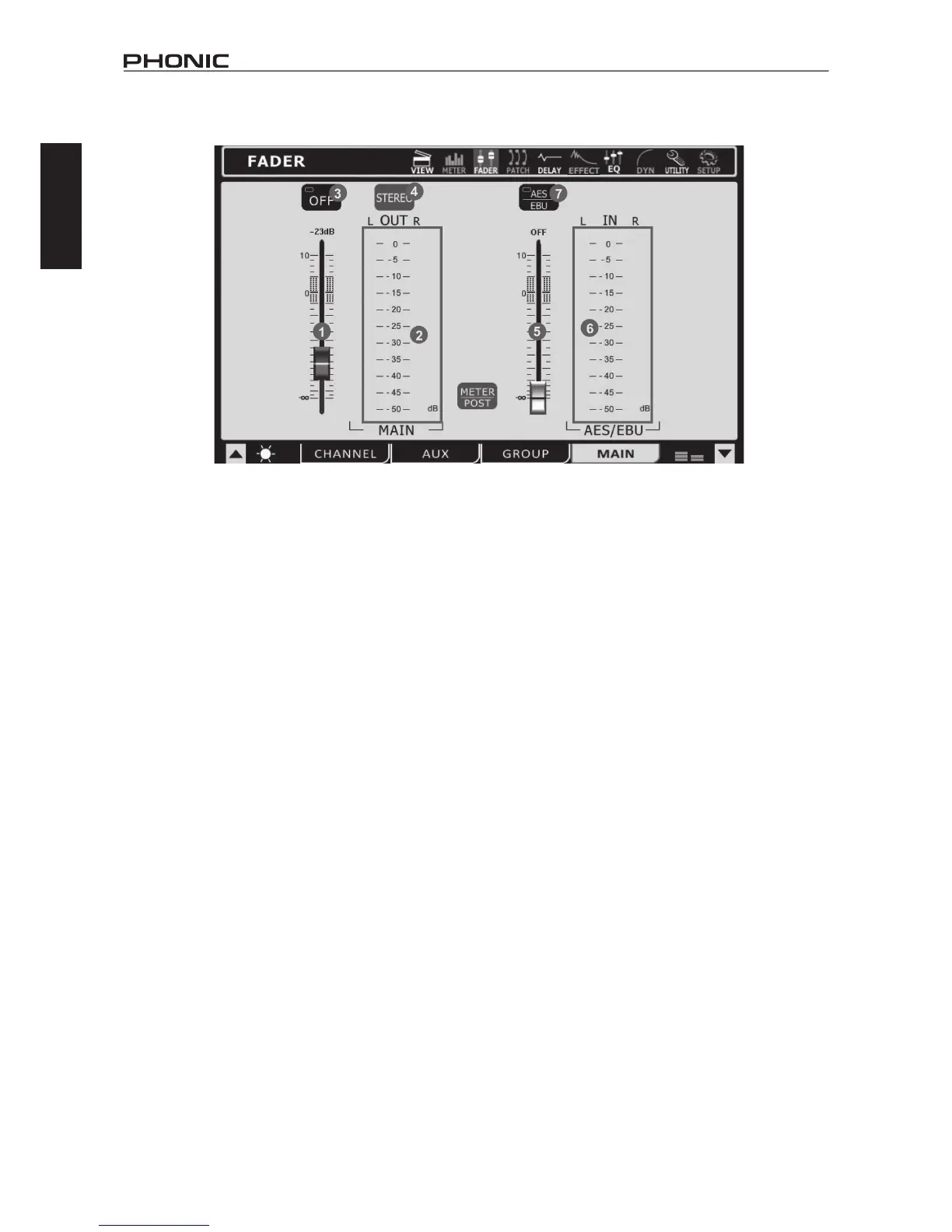

3.3 Main Tab

3.3.1 Main Fader

ThisfaderwilladjustthenaloutputleveloftheMainmix.

3.3.2 Level Meter

ThisstereolevelmetershowsthenaloutputleveloftheMain.BypushingtheMeterPre/Postbuttonthatisincludednexttothismeter,

users are able to also view the pre-fader signal.

3.3.3 On/Off Button

ThisbuttonwillactivateanddeactivatetheMainmix.Whensettooff,theMainmixwillnotbesentthroughtheMainoutputjacks.

3.3.4 Stereo / Mono Button

Pushingthisbuttonwilladjustthemainoutputsignalbetweenastereosignalandamonosignal.Thiseffectivelybypassesthepancontrols

on all channels and combines stereo signals.

3.3.5 AES/EBU Level Fader

ThisfaderwilladjusttheincomingsignallevelfromanyexternalAES/EBU-enableddevicecurrentlyconnectedtotheappropriateXLR

AES/EBU inputs on the rear of the IS16.

3.3.6 AES/EBU Meter

The incoming signal levels from the AES/EBU input can be viewed through this meter.

3.3.7 AES/EBU In Button

WhentheMainmixisactive,theAES/EBUbuttonwillallowtheDigitalinputsignal(receivedthroughtheAES/EBUinput)tobesenttothe

mainmix.TheDigitaloutputsignal,takenfromthemainstereomix,willalwaysbeactivated.
