Photon Systems Instruments FluorPen FP 110 - Extended Temperature Range Battery Pack

© PSI (Photon Systems Instruments), spol. s r. o.
55

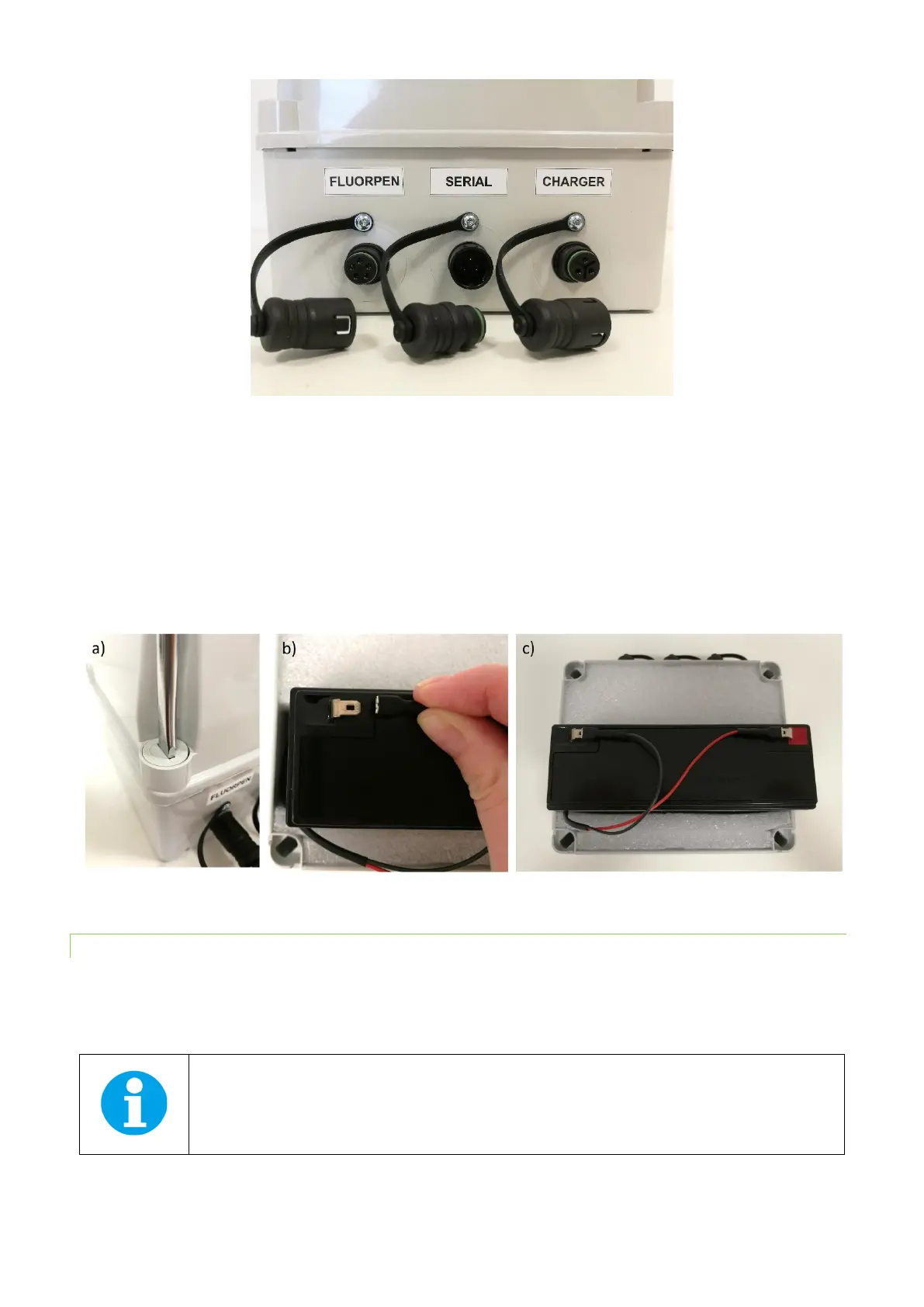

Fig. 33 Connectors of Standard Battery Pack.
Replacement of the Battery:
If the battery needs to be changed follow these steps:
1. Unscrew 4 screws (in each corner of the battery casing) and remove the battery pack cover (Fig. 34a).
2. Disconnect the internal battery from the cables.
3. Place new battery inside the casing, connect it with the cables – red cable with red and black cable with black
marked connector (Fig. 34b, c). Replace the cover.
Fig. 34 Replacement of battery in a Standard Battery Pack.
15.1.2 EXTENDED TEMPERATURE RANGE BATTERY PACK
Extended temperature range battery pack (Fig. 35) is intended for operation within temperature range from -40 ºC to
+60 ºC. Operating time is up to 2 years (QY measurement every 1 hour). The pack includes battery case with non-
rechargeable Li-SOCl2 battery (5.5Ah), two types of cables (serial and device) and serial convertor.
Extended temperature range battery pack cannot be recharged. Spare battery is offered as additional
accessory.
