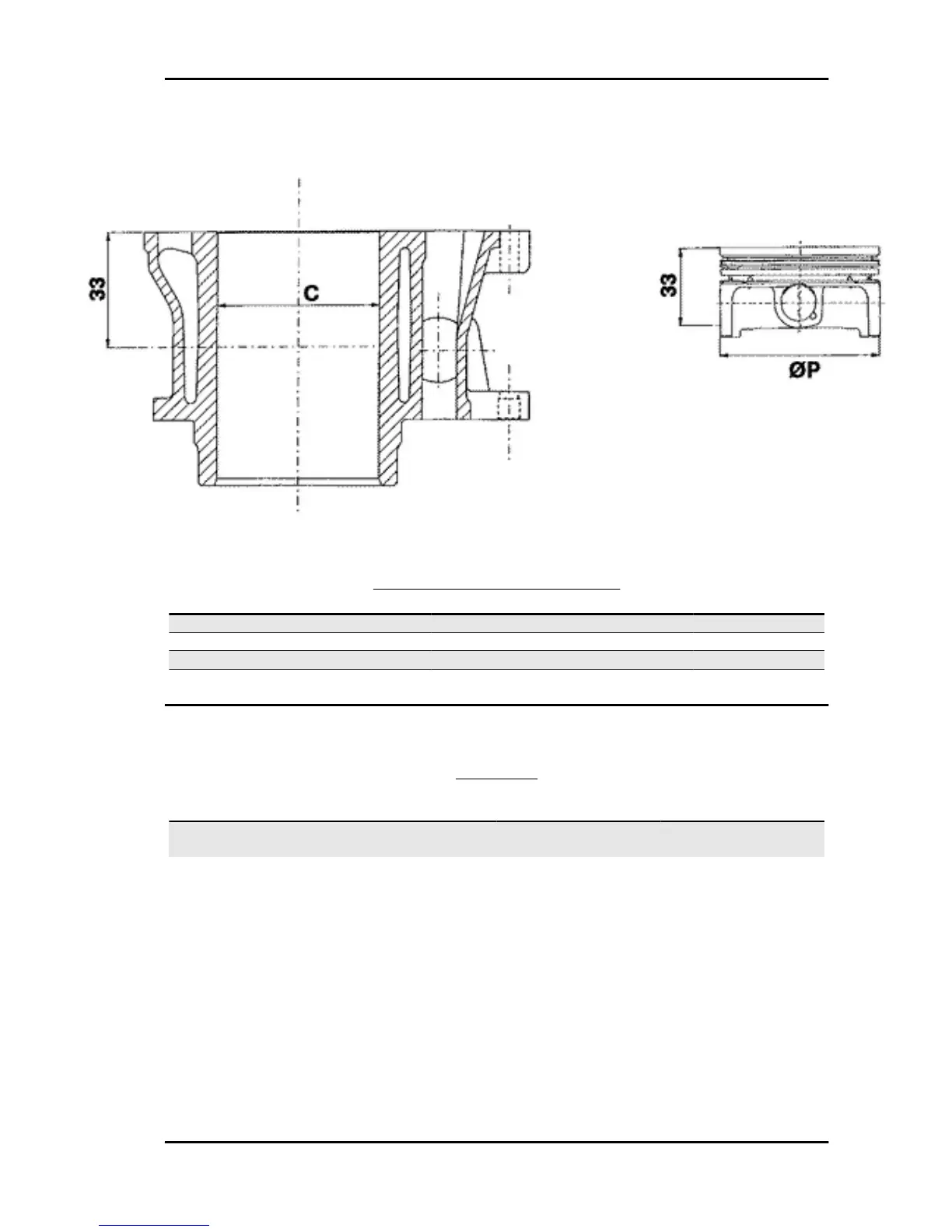

Cylinder - piston assy.
ENGINE COUPLING CATEGORY
Name Initials Cylinder Piston Play on fitting
Cylinder M 72.01 ÷ 72.017 71.953 ÷ 71.960 0.050 - 0.064
Cylinder N 72.017 ÷ 72.024 71.960 ÷ 71.967 0.050 - 0.064
Piston O 72.024 ÷ 72.031 71.967 ÷ 71.974 0.050 - 0.064
Piston P 72.031 ÷ 72.038 71.974 ÷ 71.981 0.050 - 0.064
Crankcase - crankshaft - connecting rod
CRANKSHAFT
Titolo Durata/Valore Testo Breve (< 4000
car.)
Indirizzo Immagine
Crankshaft Crankshaft to crankcase
axial clearance
Crankshaft to crankcase axial clearance
MP3 250 i.e. Characteristics
CHAR - 9
