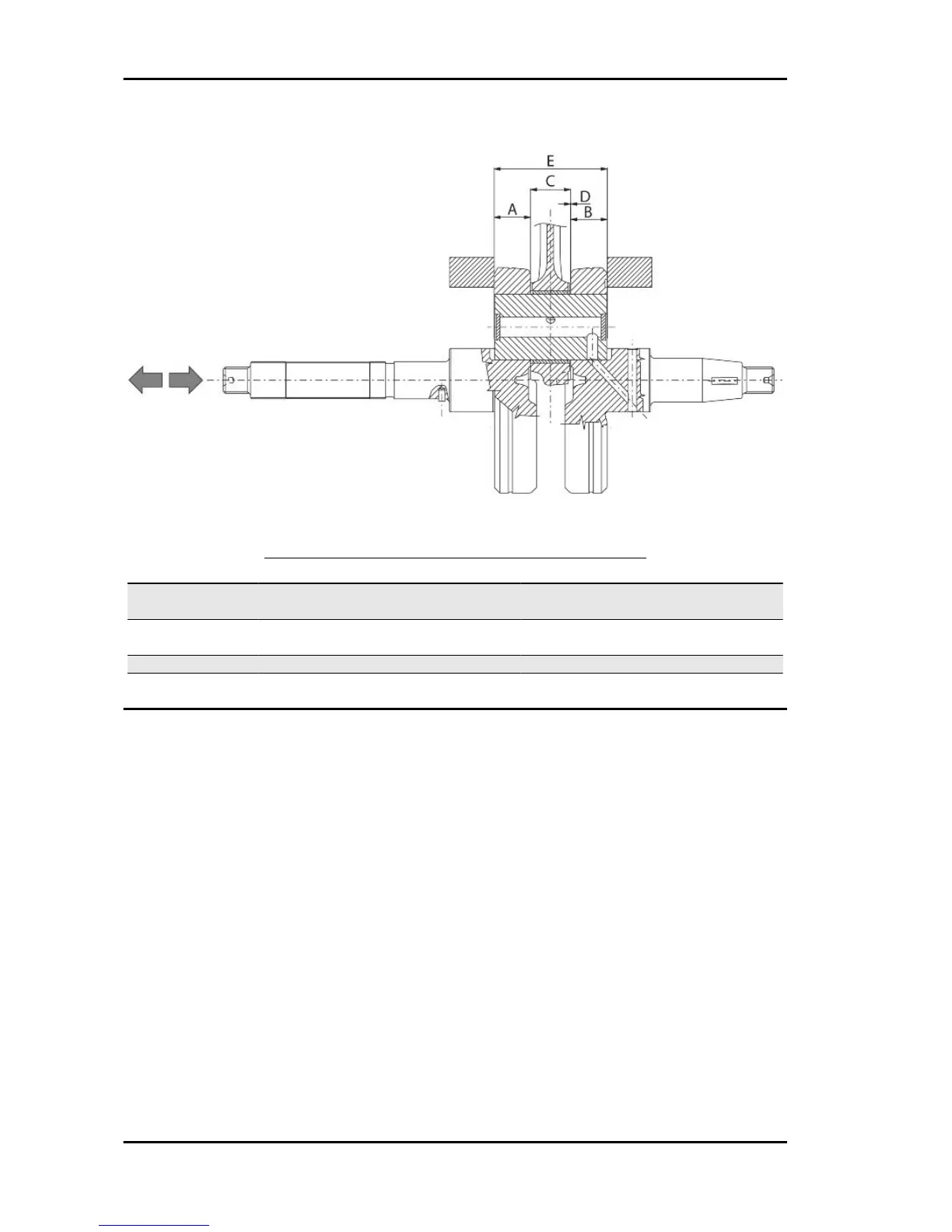

CRANKSHAFT/ CRANKCASE AXIAL CLEARANCE
Name Description Dimensions Initials Quantity
Half-shaft, trans-
mission side
16.6 +0-0.05 A D = 0.20 - 0.50
Flywheel-side half-
shaft
16.6 +0-0.05 B D = 0.20 - 0.50
Connecting rod 18 -0.10 -0.15 C D = 0.20 - 0.50
Spacer tool 51.4 +0.05 E D = 0.20 - 0.50
Slot packing system
Characteristic
Compression ratio
10.5 ÷ 11.5 : 1
