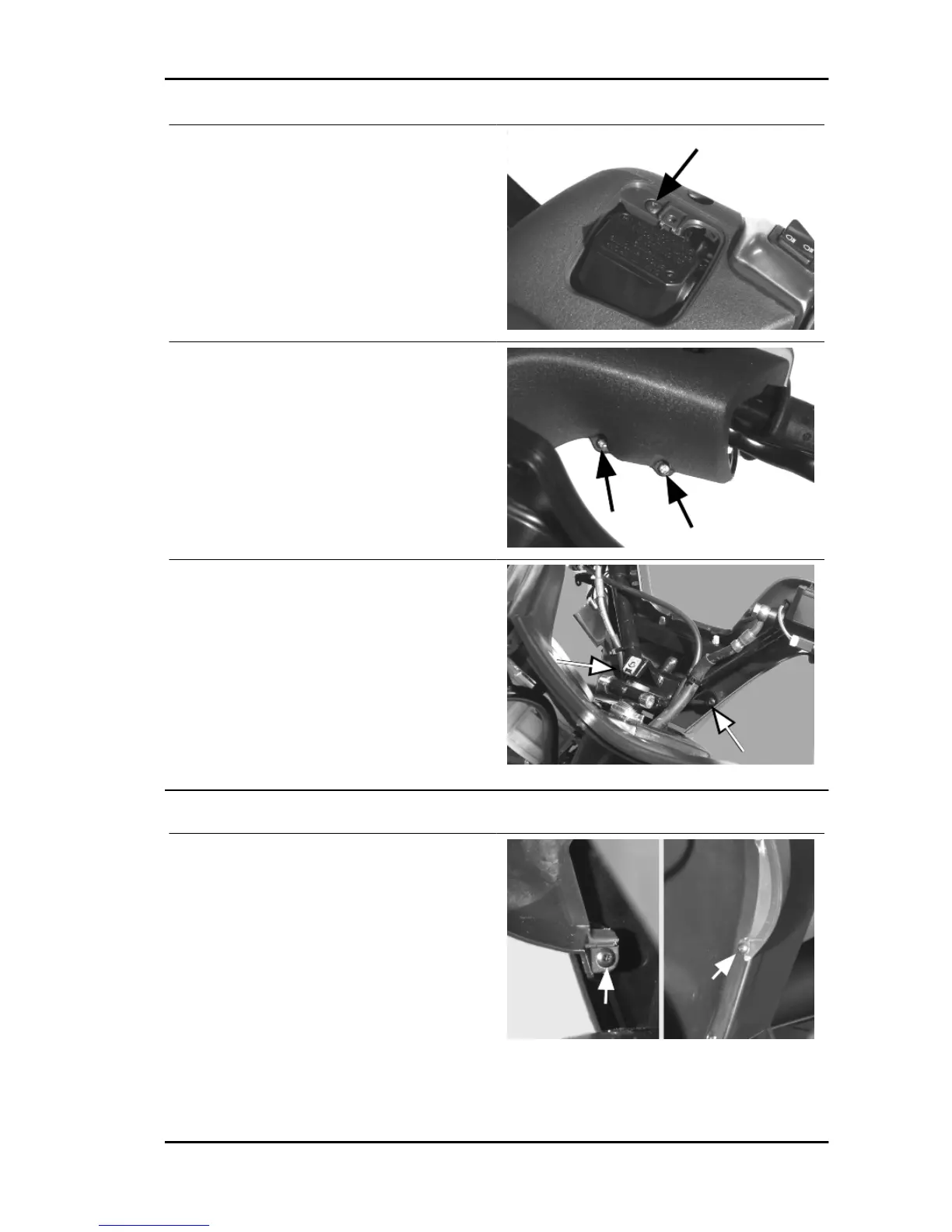

Remove the two screws under the brake pump
caps previously removed.
Unscrew the two pairs of screws in the lower part
of the half-handlebar.
After removing the front part of the handlebar cov-
er, access the two screws fixing the rear part to the
handlebar, as indicated in the photograph.
Headlight assy.
Remove the radiator cover.
Remove the two wheelhouses with the turn indi-
cator.
Unscrew the two screws fixing the wheelhouse to
the shield.
Disconnect the cable guide; after that, turn the
wheelhouse anticlockwise (inwards) to release it
from the shield supports.
