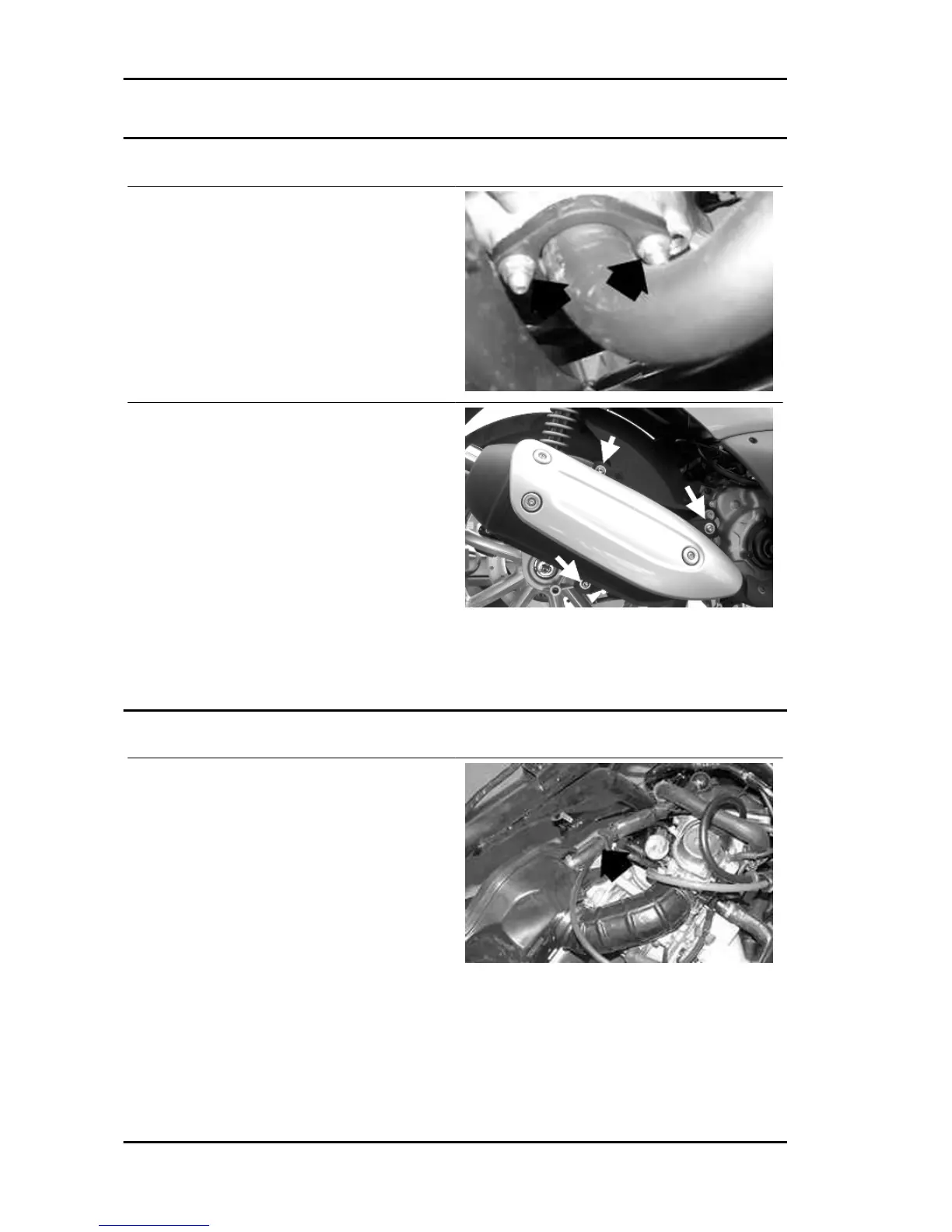

Exhaust assy. Removal
- Undo the two exhaust manifold fixings on the
head.
- Undo the three screws fixing the muffler to the
support arm.
- Remove the full muffler unit.
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
Nuts fixing muffler to support arm 27 ÷ 30 Nut fixing muffler to cylinder head 16 ÷ 18
Removal of the engine from the vehicle
- Disconnect the battery.
- Remove seat, side fairings, and footrests.
- Drain coolant.
- Remove the silencer assembly.
- Remove the silencer mounting bracket.
- Remove the rear wheel.
- Remove the shock-absorbers lower fixings.
- Remove the throttle cable.
- Detach the air filter bellow and manifold shown in
the figure.
- Detach engine earth cable.
- Disconnect the electrical devices on the carbu-
rettor and the starter motor power cord.
Engine from vehicle B 125-250
ENG VE - 100
