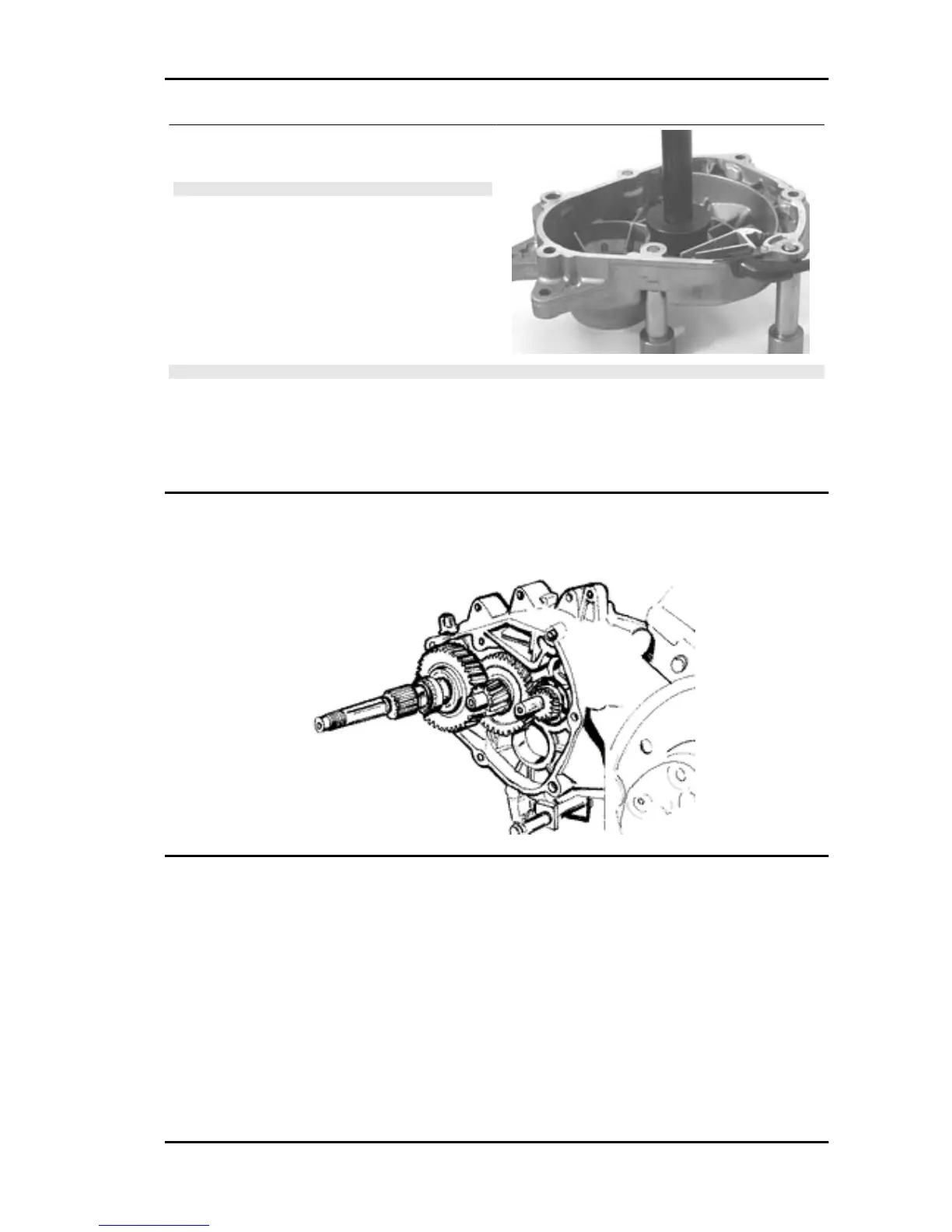

- Refit the driven pulley shaft bearing with a mod-
ular punch as shown in the figure.
N.B.
IF THE BEARING HAS AN ASYMMETRICAL BALL RETAIN-
ER, PLACE IT SO THAT THE BALLS ARE VISIBLE FROM
THE HUB INNER SIDE.
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020363Y 20 mm guide
N.B.
WHEN FITTING THE BEARINGS ON THE ENGINE CRANKCASE, SUPPORT THE CRANKCASE
PREFERABLY ON A SURFACE TO ALLOW THE BEARINGS TO BE DRIVEN VERTICALLY.
- Refit the seeger ring with the opening facing the bearing and fit a new oil guard flush with the crankcase
from the pulley side.
Refitting the hub bearings
- Install the three shafts in the engine crankcase as shown in the figure.
B 125-250 Engine
ENG - 129
