Refitting the ub cover
- Fit a new gasket together with the centring dow-
els.
- Seal the gasket of the breather pipe using black
silicone sealant.
- Fit the gearbox cover, making sure the breather
pipe is in the correct position.

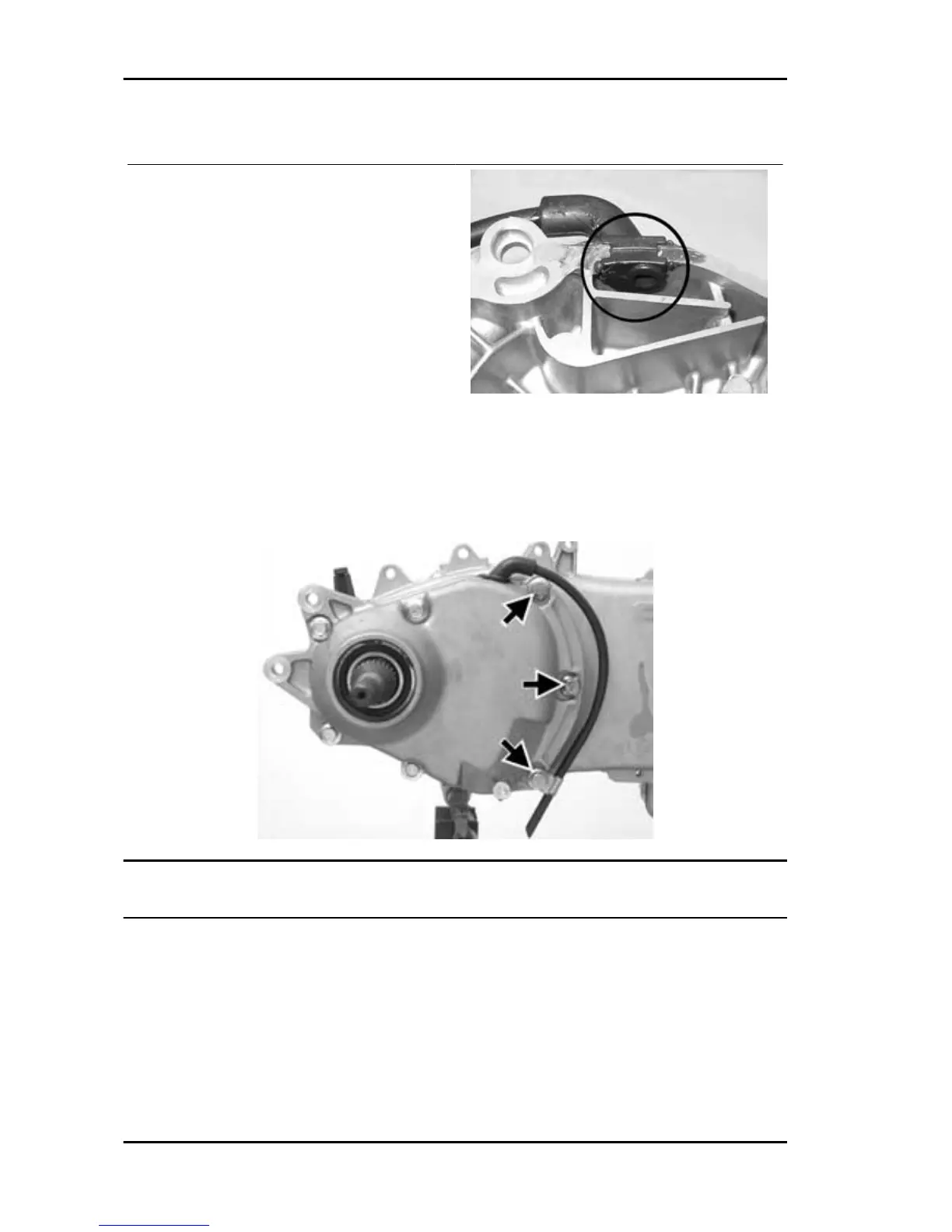

- Place the 3 shortest screws, identifiable by their
different colour, as shown in the figure.
- Fasten the breather pipe support bracket with the
lower short screw.
- Assemble the remaining 4 screws and tighten the
7 screws to the prescribed torque.
Locking torques (N*m)
Rear hub cover screws 24 ÷ 27
Flywheel cover
Engine B 125-250
ENG - 130
