PIAGGIO B 250 - Page 133

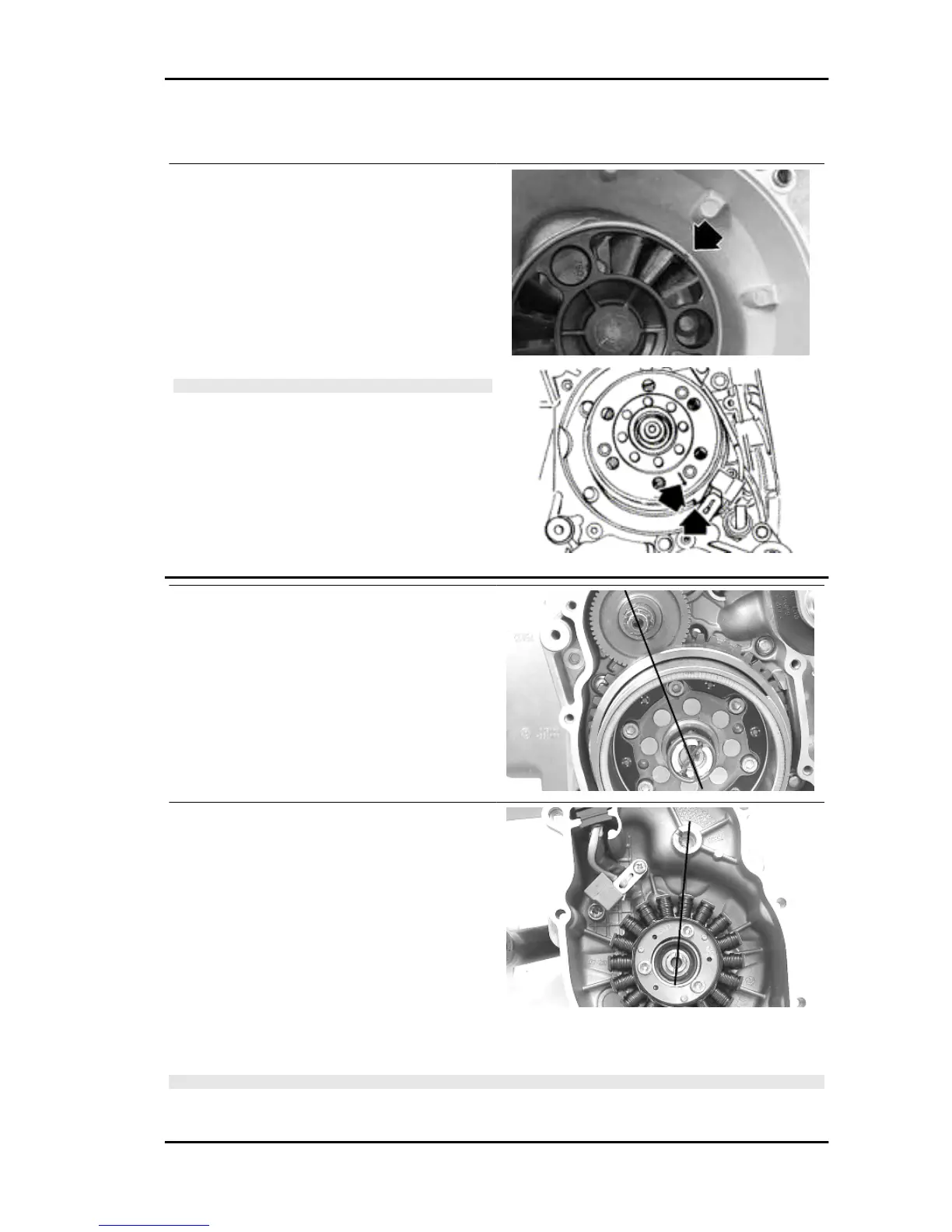

Refitting the flywheel cover
- Place the flywheel with the top dead centre mark
aligned with the crankcase.
- Place the flywheel cover by aligning the reference
marks of the drive and the crankcase cover.
- Reassemble the cover on the engine, placing the
three connectors in the drive for the water pump.
- Carry out the steps in the reverse order from the
dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL
CONNECTOR. MAKE SURE THE CENTRING DOWELS ARE
PRESENT.
- Position the spline clip on the crankshaft and ori-
ent the end as shown in the figure.
- Orient the water pump shaft with reference to the
transmission gear seat as shown in the photo.
- Refit the cover over the engine and tighten the screws to the prescribed torque.
- Carry out the steps in the reverse order from the dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL CONNECTOR. MAKE SURE THE CEN-
TRING DOWELS ARE PRESENT.
B 125-250 Engine
ENG - 133
