Locking torques (N*m)
Flywheel cover screws 11 - 13
Flywheel and starting

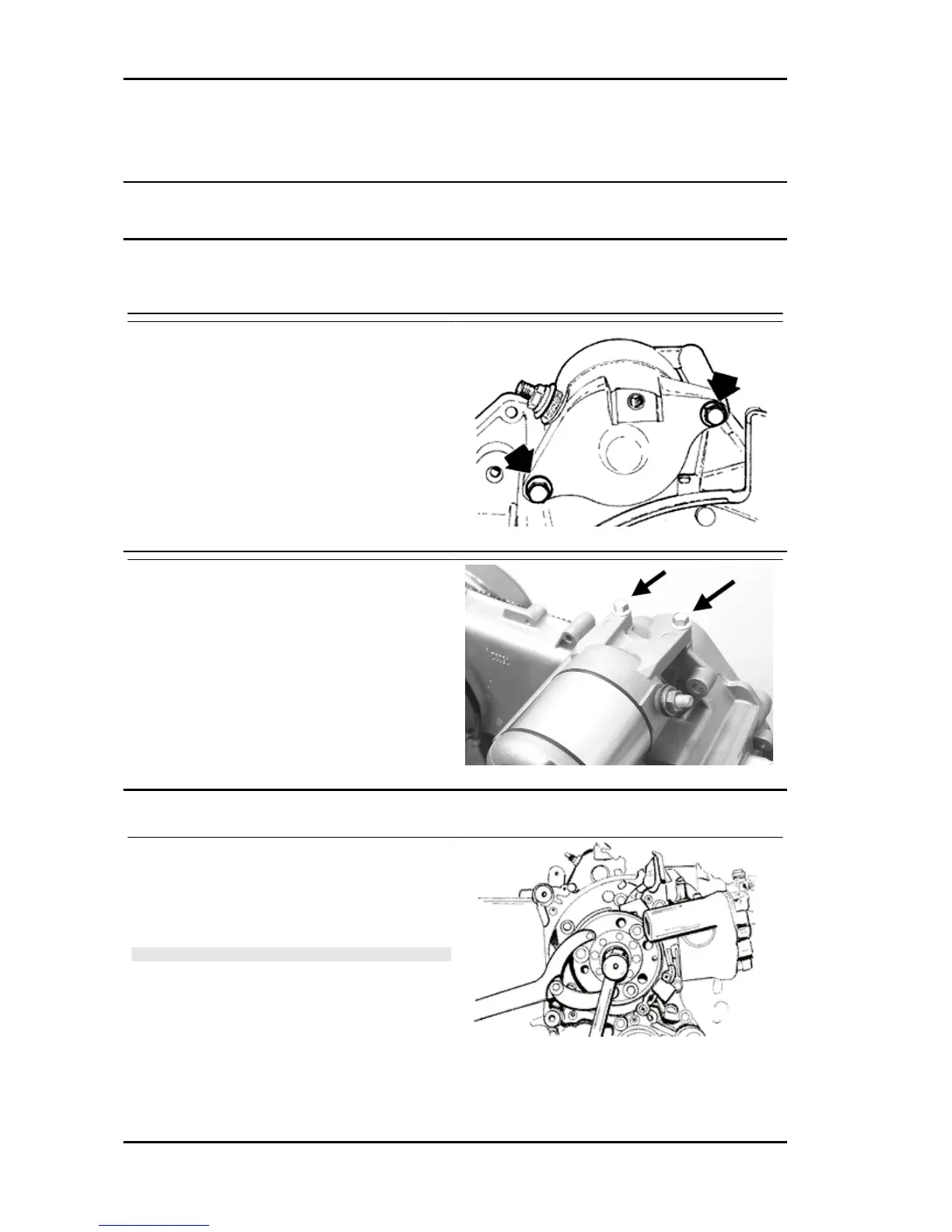

Removing the starter motor
Version 125
- Remove the two screws indicated in the figure.
- Take the starter motor out of its seat
- Remove the two screws indicated in the figure.
- Take the starter motor out of its seat
Removing the flywheel magneto
- Lock the rotation of the Flywheel with the calliper
spanner tool.
- Remove the nut.
- Take out the flywheel.
CAUTION
THE USE OF A CALLIPER SPANNER OTHER THAN THE
ONE SUPPLIED COULD DAMAGE THE STATOR COILS
Specific tooling
020565Y Flywheel lock calliper spanner
008564Y Flywheel extractor
Engine B 125-250
ENG - 134
