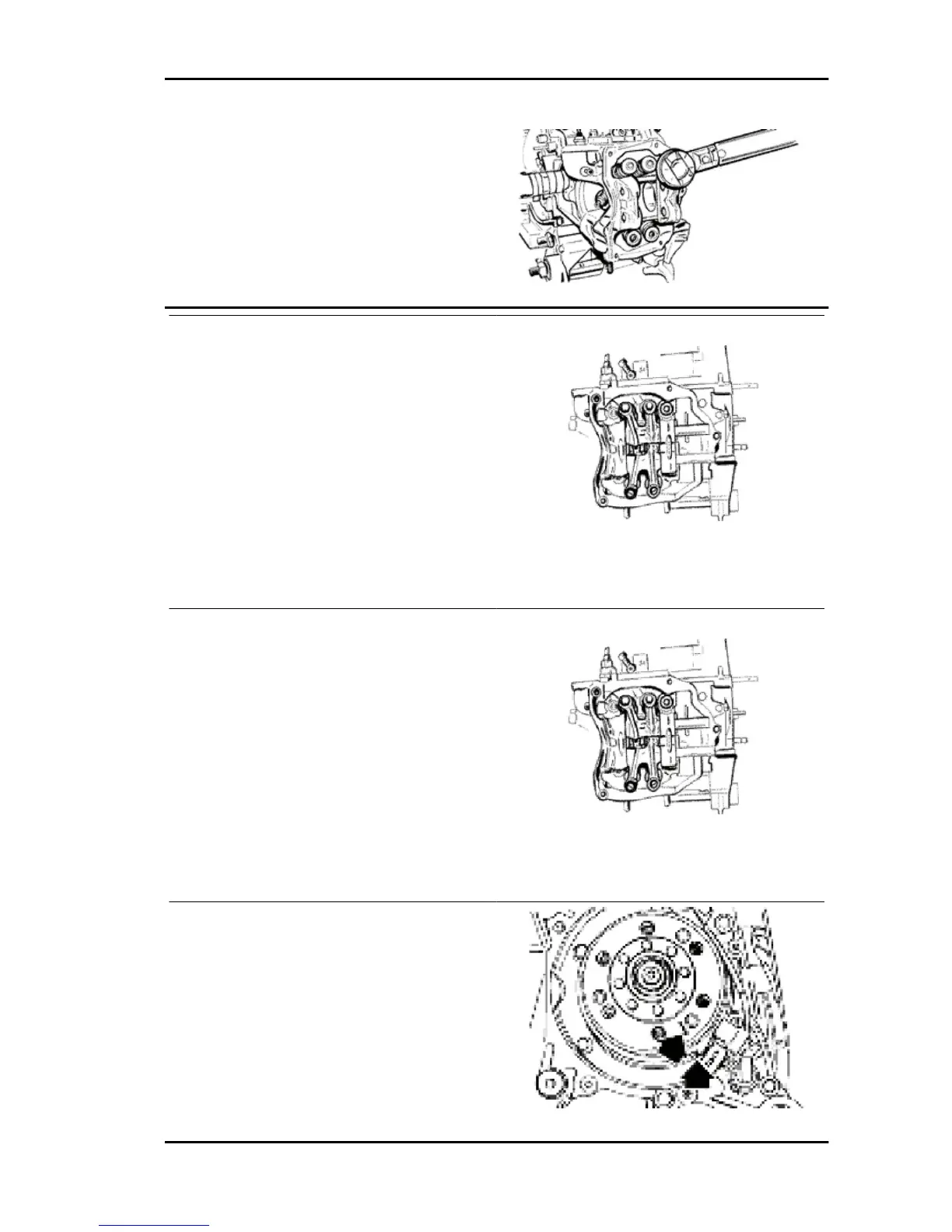

Assemble the lower timing chain sprocket wheel
on the crankshaft, with the chamfer facing the in-
sertion side.
- Loop the timing chain around the sprocket on the
crankshaft.
- Fit the chain tensioner slider from the cylinder
head side.
- Fit the spacer and the screw fastener.
- Tighten the screws to the prescribed torque.
Locking torques (N*m)
Slider screw 10 ÷ 14 Nm
Fit the pins and rocking levers.
- Lubricate the two rocking levers through the
holes at the top.
- Lubricate the 2 bearings and insert the cam shaft
in the cylinder head with the cams corresponding
to the rockers.
- Insert the retention plate and tighten the two
screws shown in the figure to the prescribed tor-
que.
Locking torques (N*m)
Plate screws 4 ÷ 6 Nm
Insert the spacer on the cam shaft.
- Rotate the engine so that the piston is at top dead
centre, using the reference marks on the flywheel
and the crankcase.
- Holding this position insert the chain on the cam-
shaft control pulley.
B 125-250 Engine
ENG - 165
