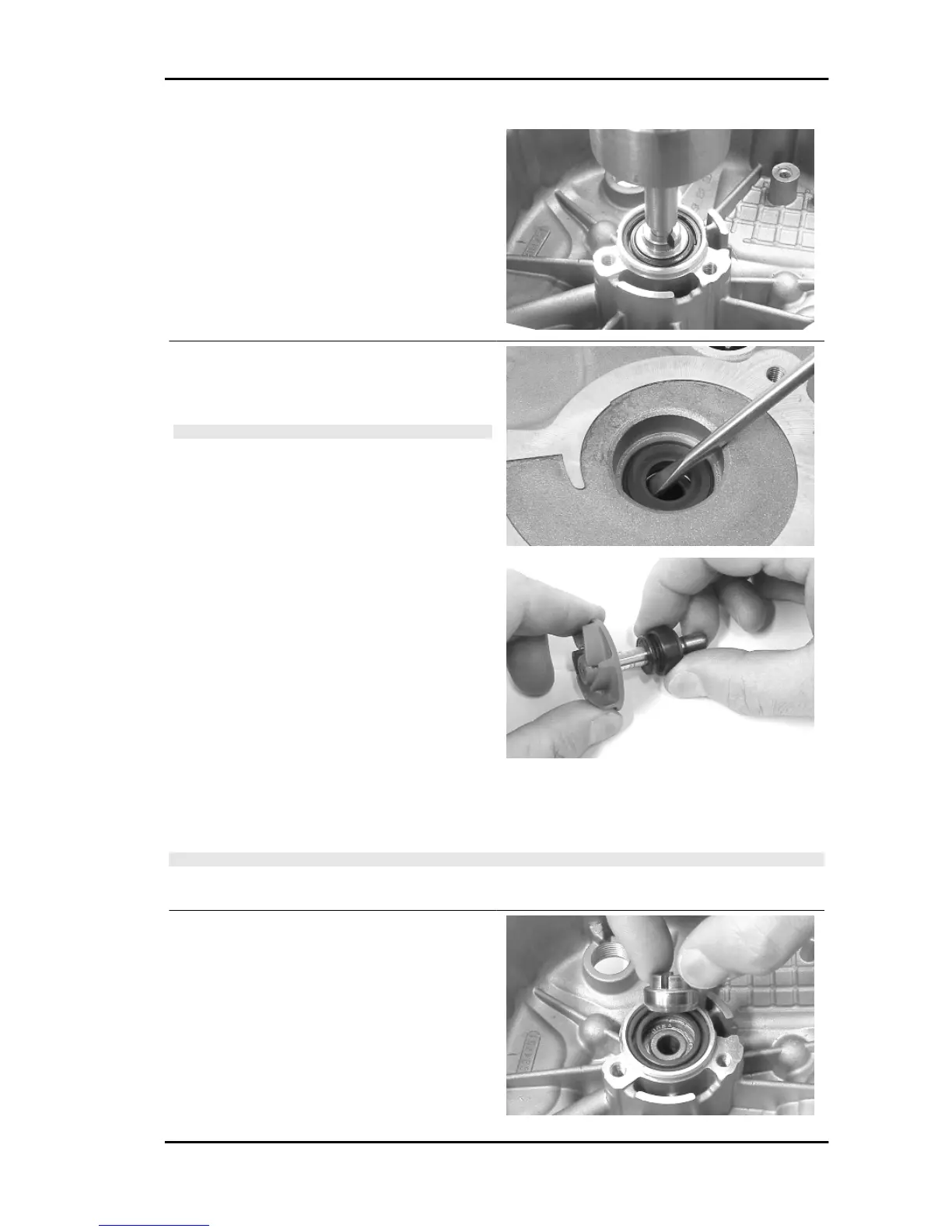

Remove the ceramic seal from the pump shaft.
Using a screwdriver, remove the ceramic ring and
sealing gasket from the flywheel cover.
N.B.
IN THE EVENT YOU PLAN TO REUSE THE MECHANICAL
SEAL, PAY ATTENTION DURING THE DISASSEMBLY
STAGES IN ORDER TO NOT CHIP THE CERAMIC RING.
- Remove the joint from the seat inside the seal ring.
- Position the flywheel cover in the press while sustaining it using the surface to be used for coupling
with the engine case.
CAUTION
CHECK THE POSITIONING OF THE CENTRING DOWELS. PROPERLY PROTECT THE COUPLING
SURFACE.
Centre the cover until it permits insertion of the pin
and then eject the seal ring and the two ball bear-
ings.
Specific tooling
020628Y Water pump service kit
B 125-250 Cooling system
COOL SYS - 261
