Specification Desc./Quantity
11 Saddle electrical opening button
12 Saddle opening actuator
13 Plug socket 12 V - 180 W MAX
14 Fuse 15 A (N°8)
15 Battery 12V-12Ah
16 Helmet compartment lighting button
17 Helmet compartment lamp bulb 12V-5W
Checks and inspections
Immobiliser
The electric ignition system is fed with direct cur-
rent and is protected by an antitheft immobilizer
integrated to the control unit.
The ignition system consists of:
- electronic control unit
- immobilizer aerial
- master and service keys with built-in transponder
- H.V. coil
- diagnosis LED
The diagnosis LED also works as a blinking light
to deter theft. This function is activated every time
the key switch is set to «OFF», when the side
stand is lowered or the engine emergency cut-off
switch is set to «OFF». It remains activated for 48
hours in order not to affect the battery charge.

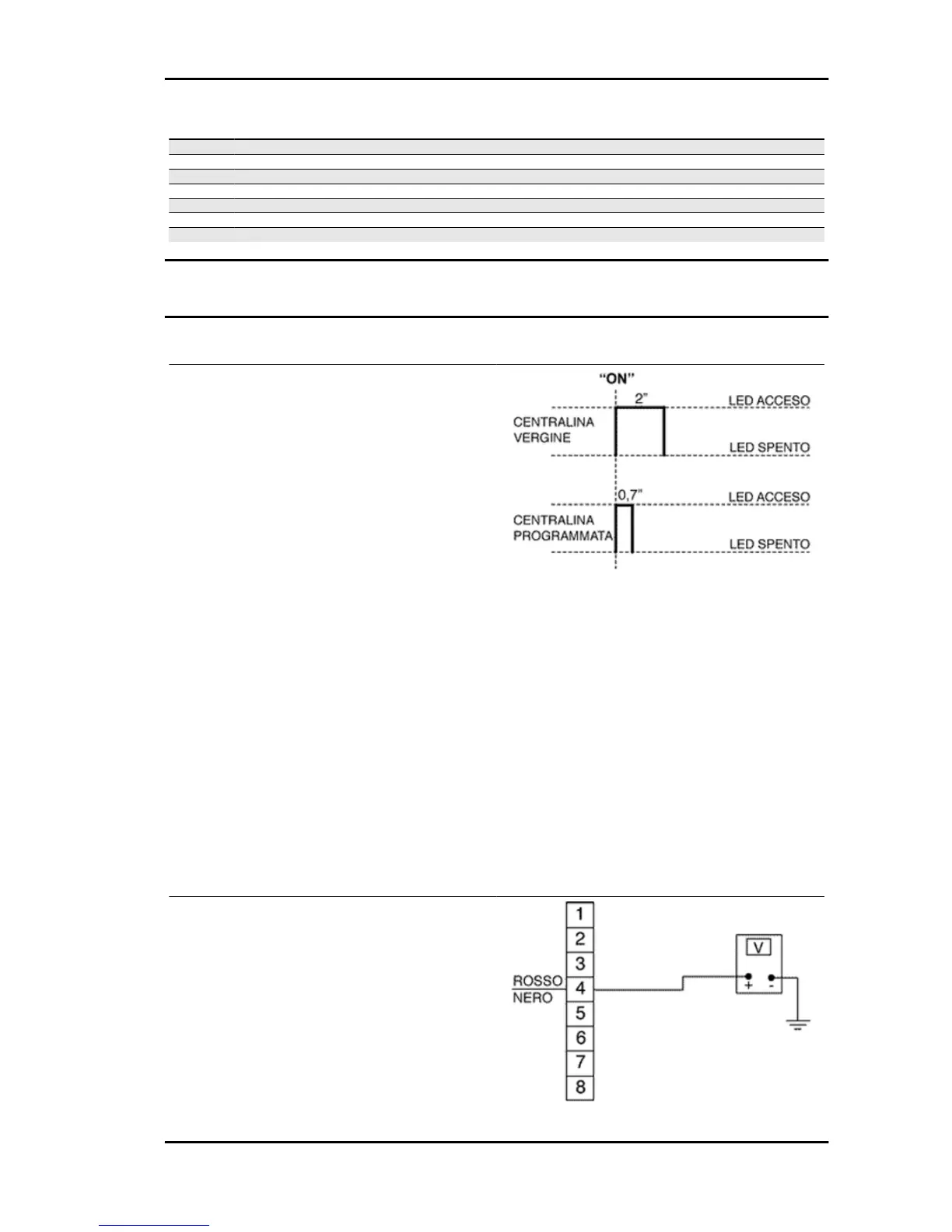

When the ignition switch is turned to «ON», the
deterring blinker function is deactivated. Subse-
quently, a flash confirms the switching to « ON».
The duration of the flash depends on the electronic
control unit program (see figure).
In case the LED turns off and remains so even
when switching over to «ON», check if:
- there is battery voltage
- 15A main fuse (No. 7) is in working order.
If the deterring LED remains off, check the control
unit power supply as follows:
- Disconnect the control unit connector. Check if:
B 125-250 Electrical system
ELE SYS - 85
