- There is battery voltage between terminal No. 4
(Red/Black) and the ground lead

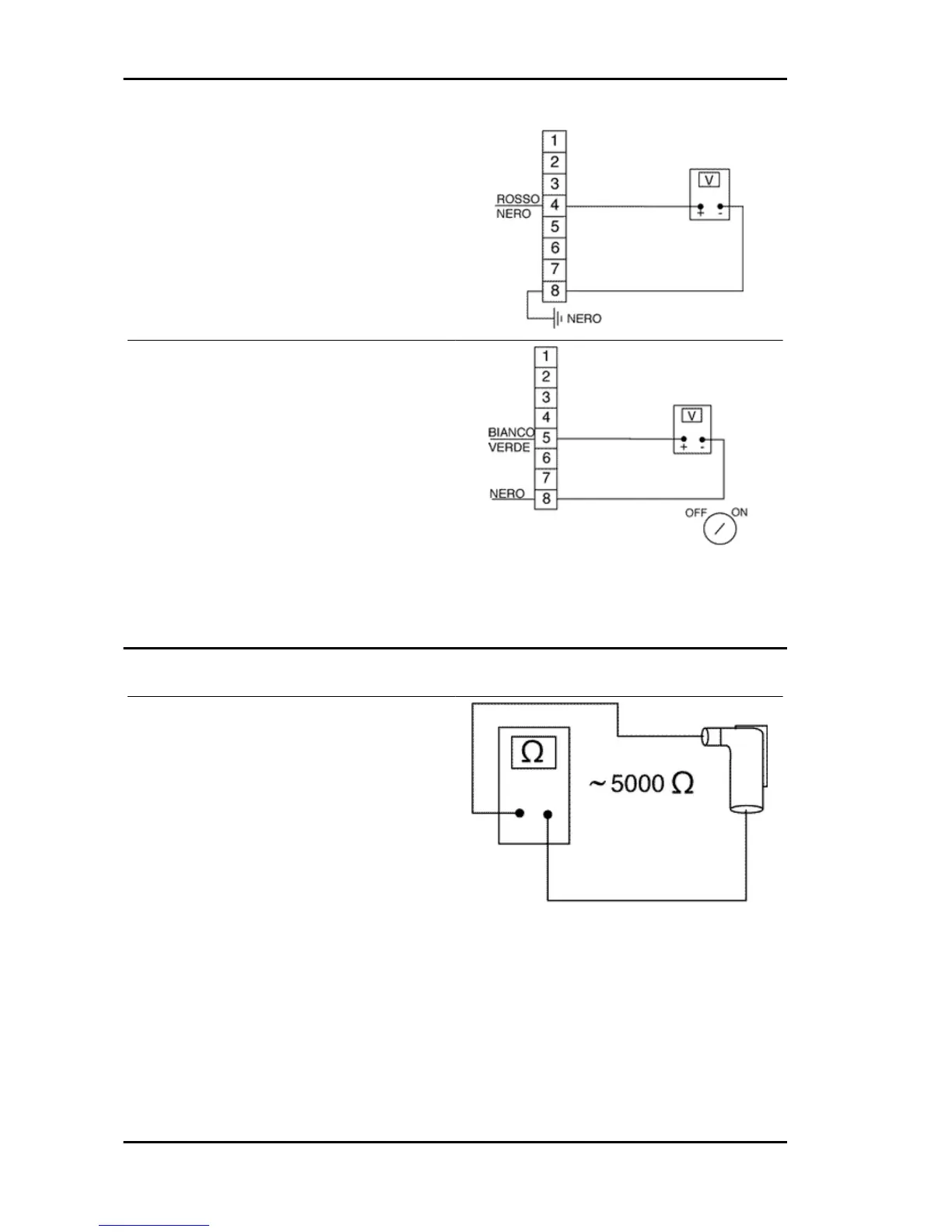

- There is battery voltage between the terminal No.
4 (Red/Black) and terminal No. 8 (Negative) as
shown in the figure.
- There is battery voltage between the terminals
No. 5 and No. 8 with the key switch set to «ON»,
the side stand folded up and the emergency cut-
off switch set to «RUN».
If no faults are found, replace the control unit; oth-
erwise, check the wiring and the following compo-
nents:
- Engine stop remote control;
- Emergency cut-off switch;
- Side stand contacts;
- Key switch contacts.
Virgin circuit
If the ignition system has not been programmed,
the engine can be started but it will run limited to
2000 rpm. When trying to accelerate, some evi-
dent loss of power may be felt.
Program the system with the MASTER (Brown)
and SERVICE (Black) keys as follows:
- Insert the MASTER key, turn it to "ON" and keep
it in that position for 2 seconds (limit values: 1 ÷ 3
seconds).
- Alternately insert all the available black keys and
turn each one of them to "ON" for 2 seconds.
- Insert the MASTER key again and turn it to "ON"
for 2 seconds.
The maximum time to change keys is 10 seconds.
A maximum of 7 (Black) service keys can be pro-
grammed at one time.
Electrical system B 125-250
ELE SYS - 86
