If no voltage is detected, check the wiring, the connections and the integrity of the main 15A fuse;
otherwise proceed as follows:

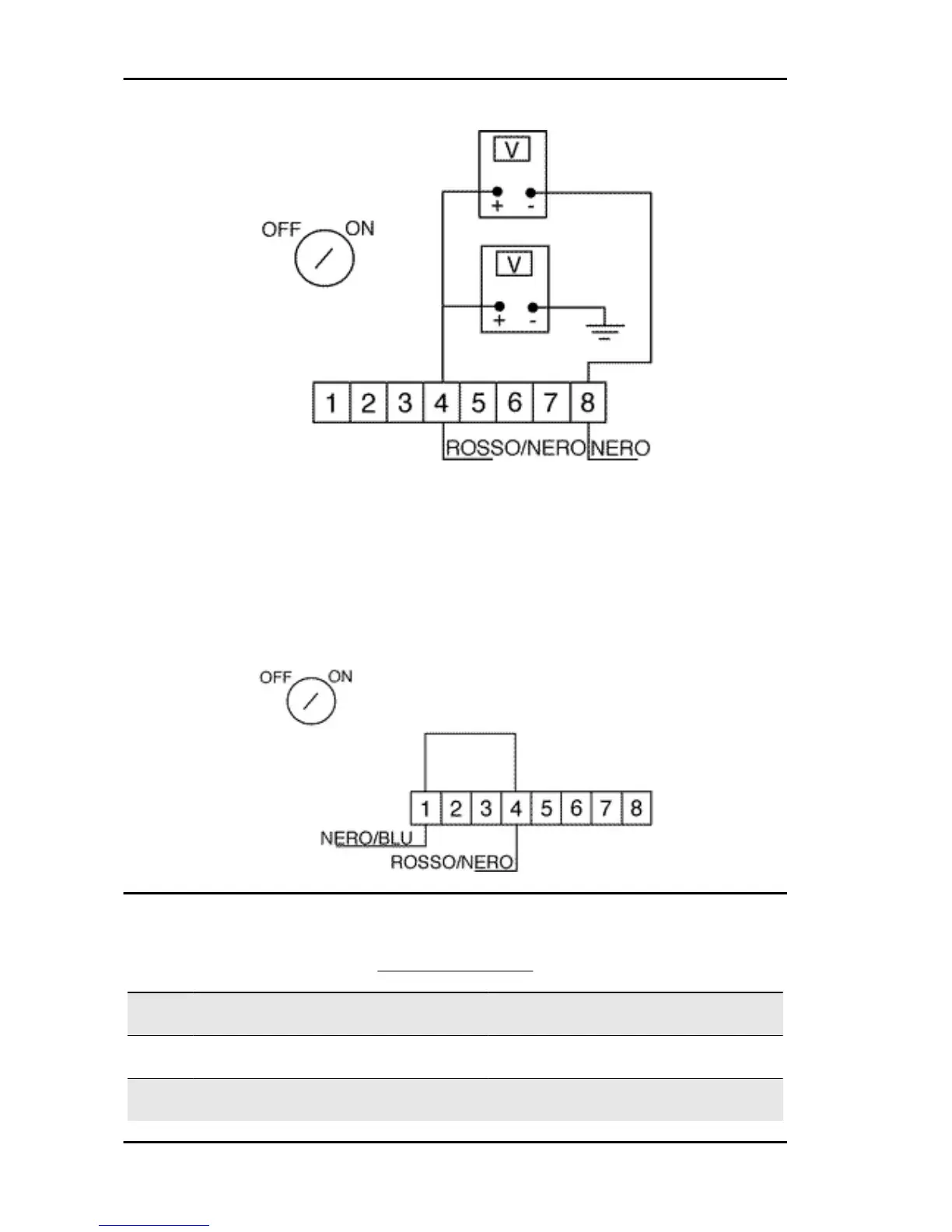

- Use a jumper to connect terminals no. 1 (black/blue) and no. 4 (red/black) (see figure) and, operating
the turn signal switch, alternating left and right hand-side, ensure that the turn signal lights light up.
- If so, the control unit is defective and must be replaced. Otherwise check the wiring between the control
unit and the turn signal switch, and then repeat the test
- If the wiring is intact and the turn signal lights still fail to operate correctly, replace the turn signal switch.
Lights list
LIGHT BULB TABLE
Specification
Desc./Quantity
1 High-beam light bulb Type: HALOGEN (H7)
Power: 12V - 55W
Quantity: 1
2 Low-beam bulb Type: HALOGEN (H1)
Power: 12V - 55W
Quantity: 1
3 Front tail light bulb Type: ALL GLASS
Power: 12V - 5W
Quantity: 2
Electrical system B 125-250
ELE SYS - 94
