NowwetakeonestepfurtherandperformthesameexperimentinTTTRmode,firstwithoutfilteringandthen
withfiltering.WeuseT3modebecauseitisfunctionallyrelatedtohistogrammingmode,inthatitalsoassumes
atypicallyperiodicsyncsignaland,moreimportanthere,theMultiHarpsoftwarepermitsloadingT3modefiles
directlyintothehistogramdisplay.WecoulddotheexperimentbywayofaregularTTTRmodemeasurement
(Seesection5.3.4)butfordidacticpurposesweshalldoitthroughthedialogforFilteredTTTRmode.
TheFilteredTTTRModedialogcanbereachedthroughthecorrespondingtoolbarbuttonshownhere
ontheright.ThedialogisconceptuallysimilartothatofregularTTTRmode.Uponclickingonthebut-
tonyouwillnoticeamomentofdelaywherethehardwareisre-configuredforthenewmeasurement

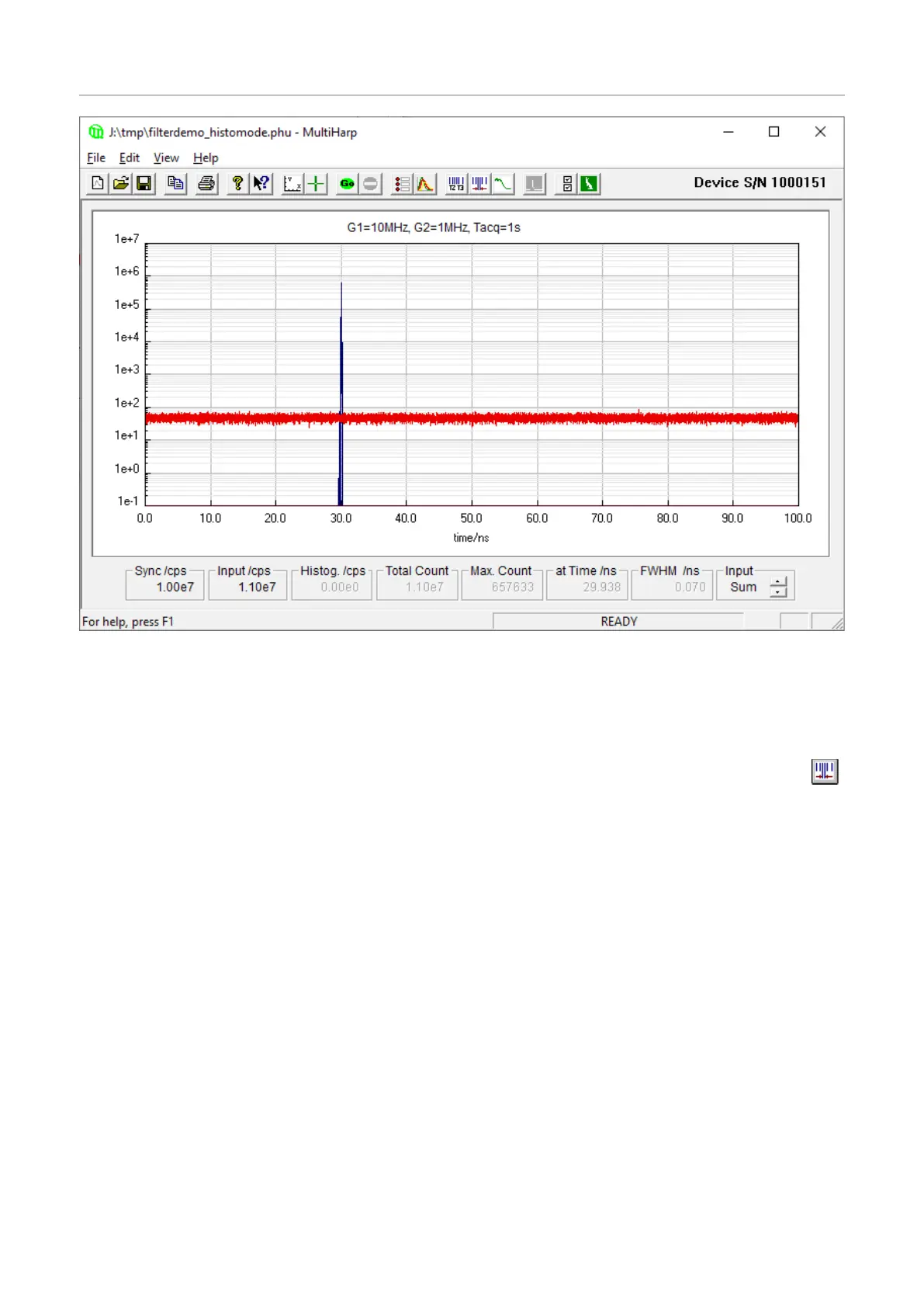

mode.Whenthisiscompletedthedialogwillappearsimilartothefigurefollowingbelow.
Page45
