Picotest M3500A - Page 12

12
[Step 3]

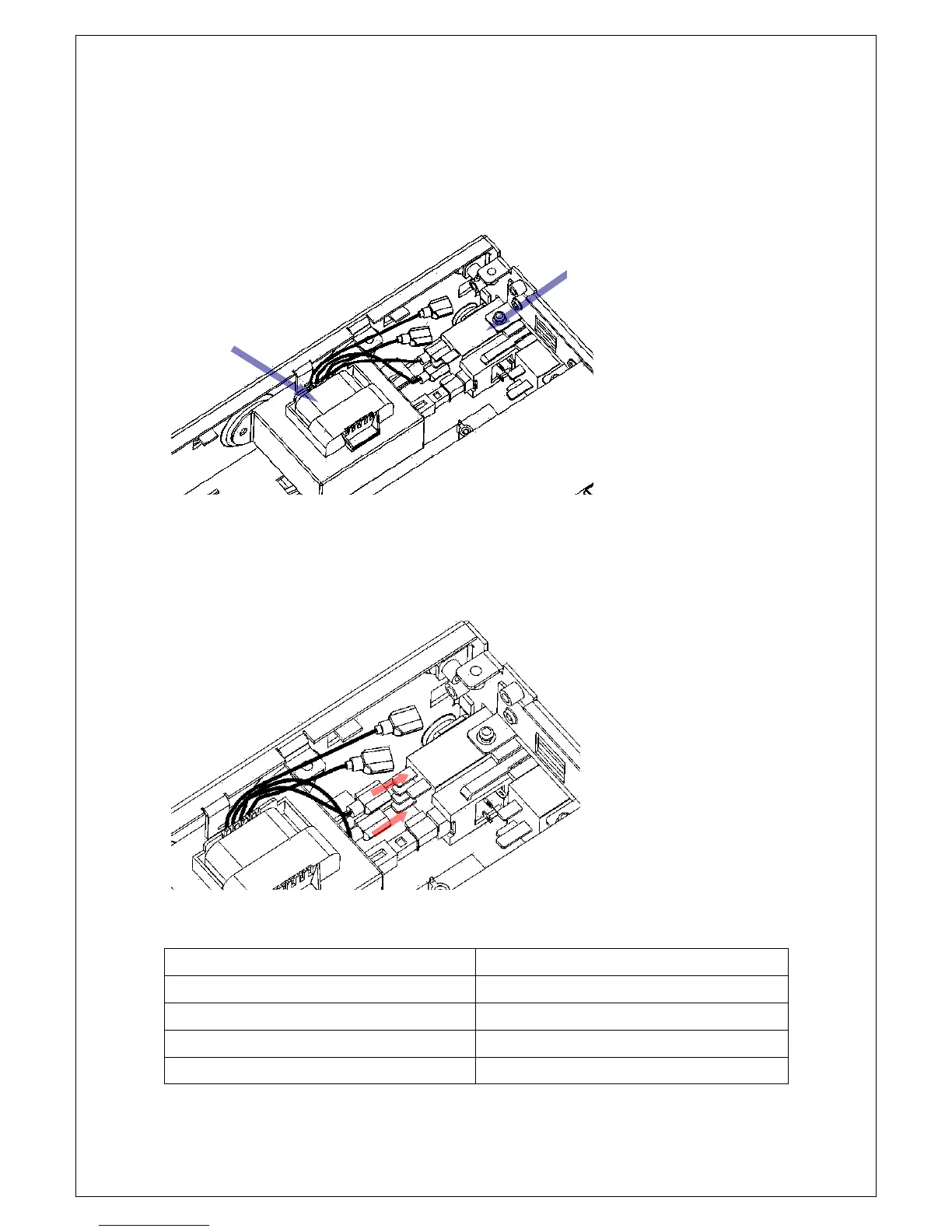

There are four wires in different colors on the transformer. Two of them
connect to the power entry according to the regular line voltage selections
for your country as shown in Figure 2-8.
Figure 2-8
[Step 4]
Please refer to the Table 2-1 to connect the wires for your need.
Figure 2-9
Power Line Voltage Wire color
100 Vac Brown
120 Vac Red
220 Vac Orange
240 Vac Yellow
Table 2-1
Power Entry
Transformer
