Picotest M3500A - Page 20

20

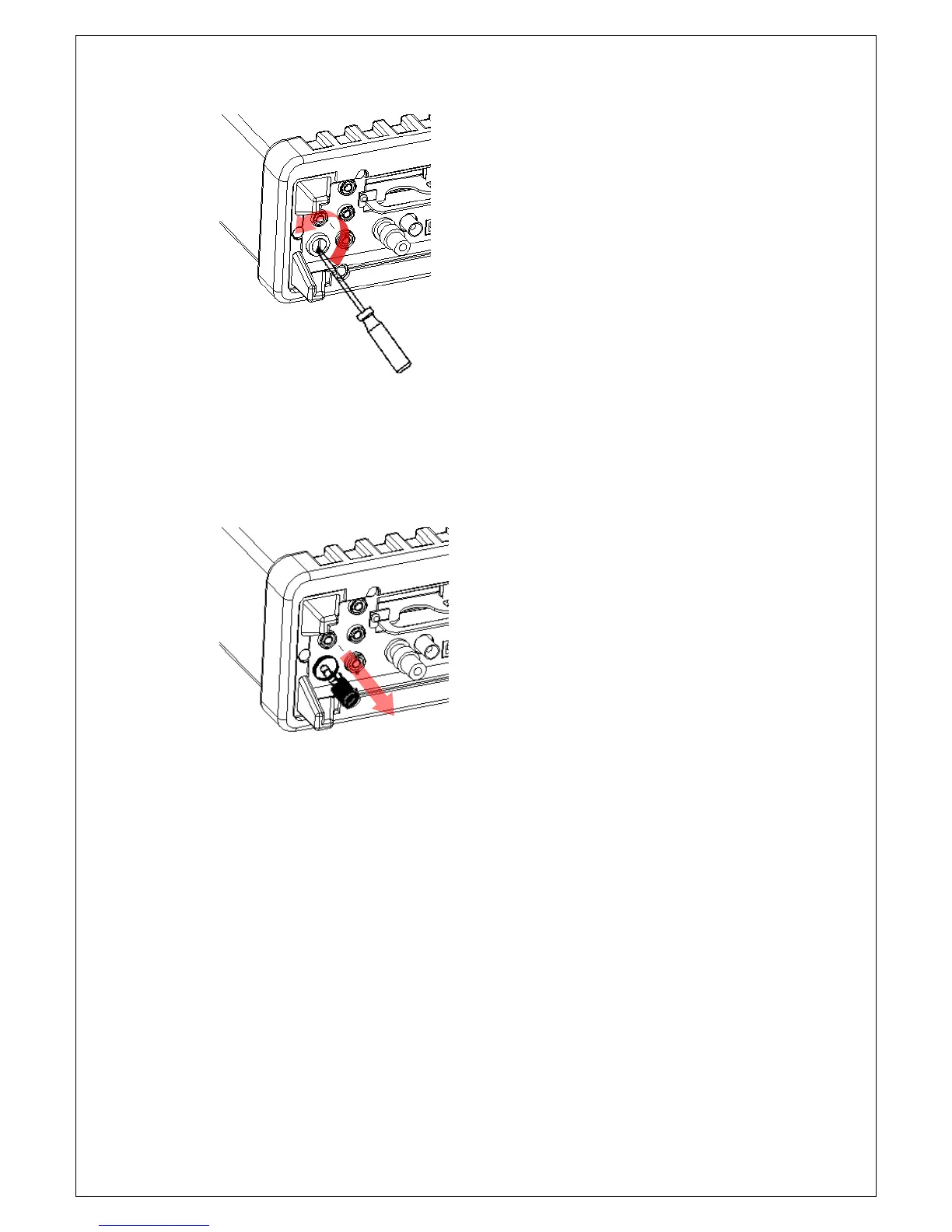

Figure2-20
[Step 3]
Pull out the terminal (fuse holder) gently and you will find the current input
fuse as shown in Figure 2-21.
Figure 2-21
[Step 4]
Remove the broken fuse and replace a new one with the same type or same
rating as shown in Figure 2-22.
Current input Fuse
