Pilz PNOZ s5 - Reset with Start-up Test; Reset and Start-up Test Timing

PNOZ s5
Operating Manual PNOZ s5
21397-EN-10
13

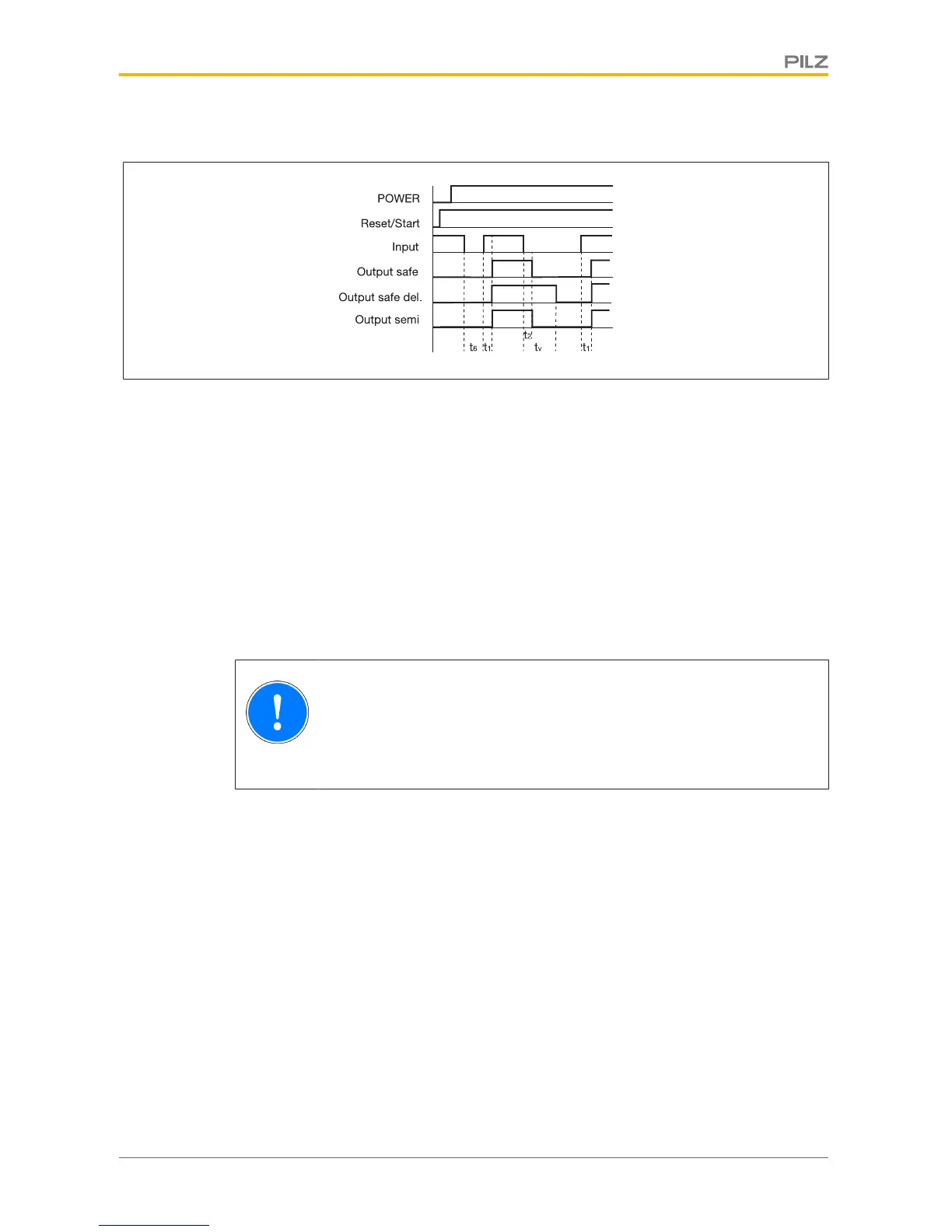

Reset with start-up test
Legend
} POWER: Supply voltage
} Start: Start circuit
} Input: Input circuits
} Output safe: Safety contacts, instantaneous
} Output safe del: Safety contacts, delayed
} Output semi: Semiconductor output
} t
1
: Switch-on delay
} t
2
: Delay-on de-energisation
} t
v
: Delay time
} t
6
: Recovery time
NOTICE
At the latest, the delay-on de-energisation safety contacts open after the set
delay time + 20 ms + 15% of the set value, even in the case of a component
failure.
