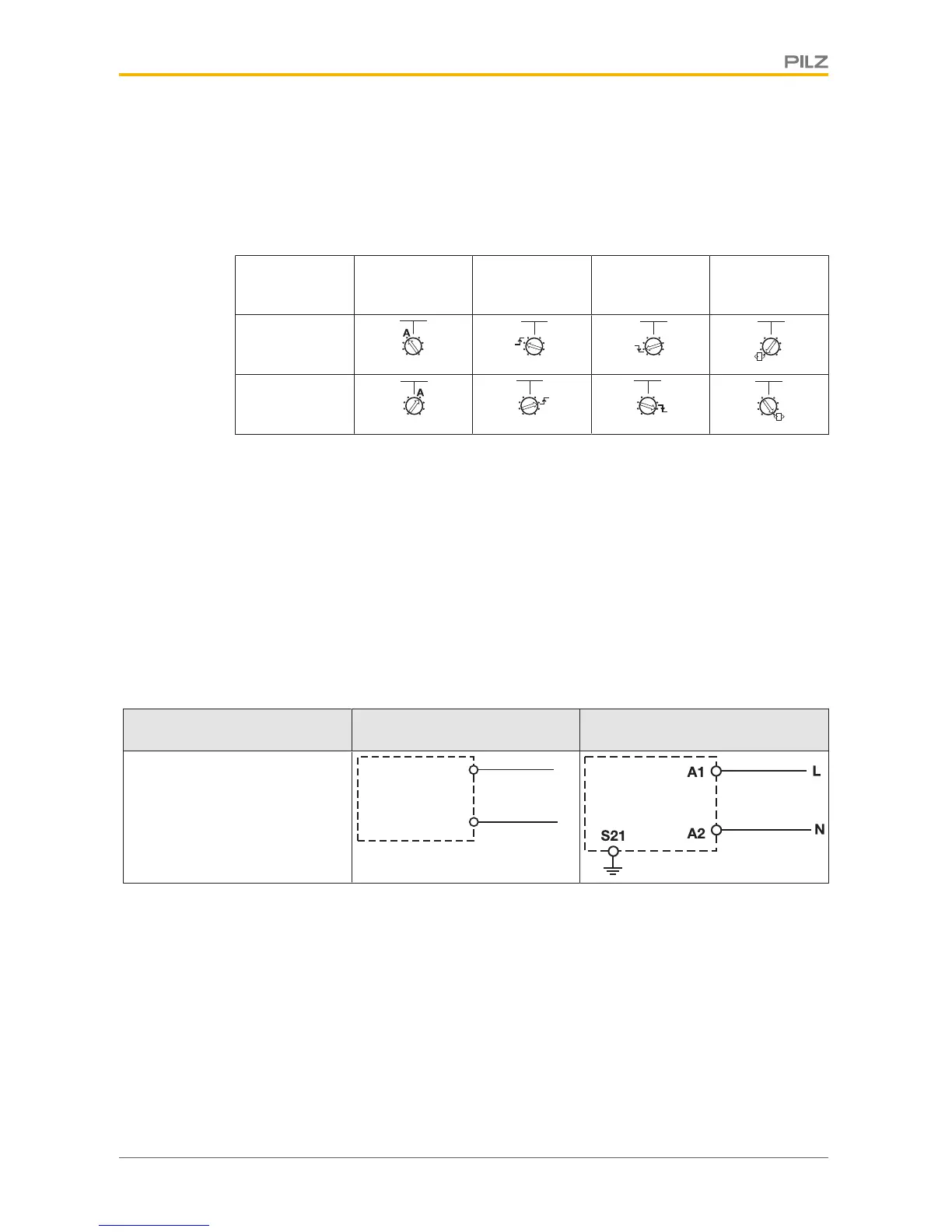

Set operating modes
} Switch off supply voltage.
} Select operating mode via the operating mode selector switch "mode".
} If the operating mode selector switch "mode" is in its start position (vertical position), an
error message will appear.
Operating mode
selector switch
"mode"
Automatic or
manual start
Monitored start
rising edge
Monitored start
falling edge
Automatic start
with start-up test
Without detec-
tion of shorts
across contacts
In2-
In2+
In2-
In2+
In2-
In2+
In2-
In2+
With detection of
shorts across
contacts
In2-
In2+
In2-
In2+
In2-
In2+
In2-
In2+
Set delay time
Time selector switch "t[s]"
Factor selector switch "n"
n x t[s] = Delay time
Example:
t = 4 s, n = 5
Delay time = 5 x 4 = 20 s
The min. delay time that can be set is (when t = 0): 0.04 s.
Connection
Supply voltage Unit types with UB 24 VDC
Unit types with UB 48 – 240 VAC/
DC
A1
L+
A2
L-
