Service life graph
The service life graphs indicate the number of cycles from which failures due to wear must
be expected. The wear is mainly caused by the electrical load; the mechanical load is negli-
gible.
Cycles x 1000
Switching current (A)

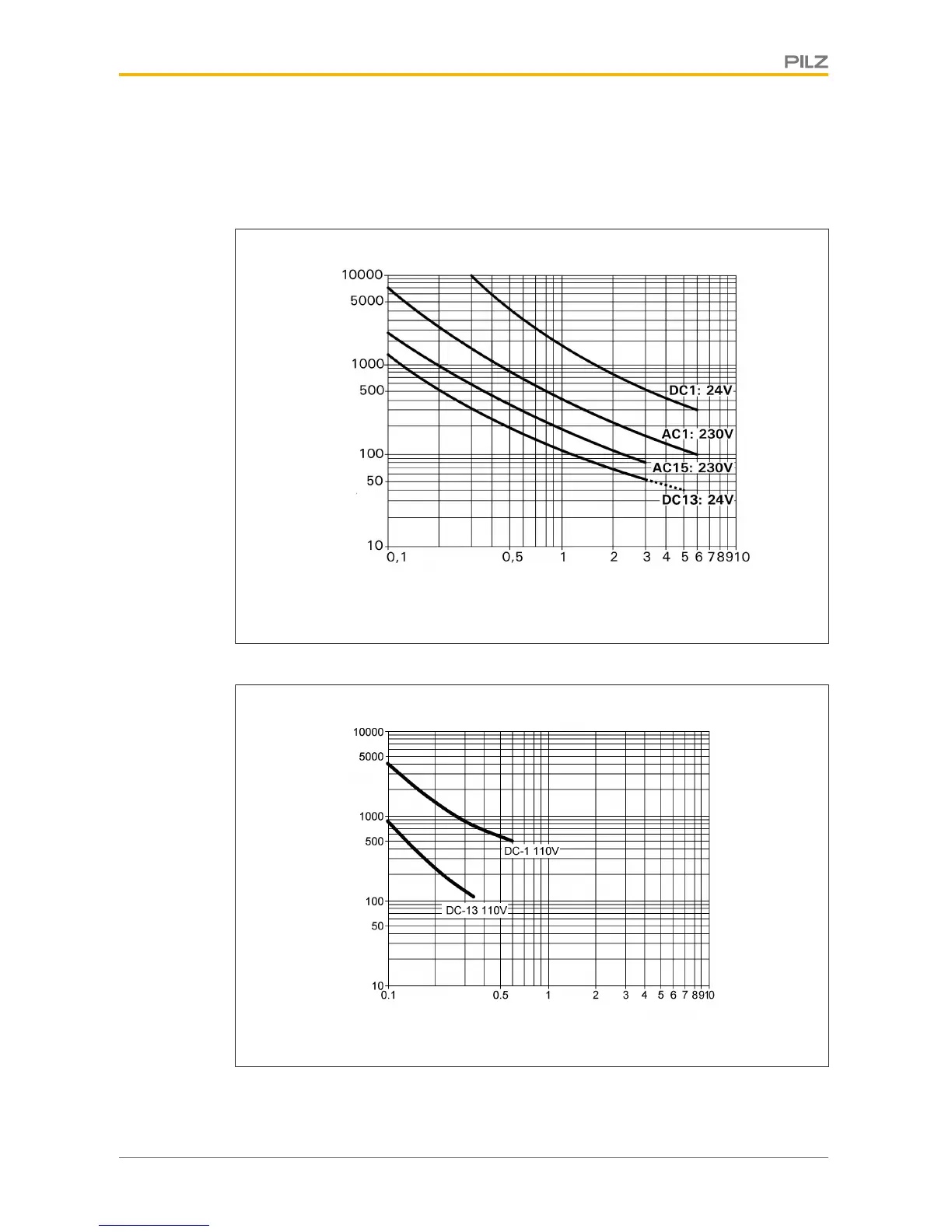

Fig.: Service life graphs at 24 V DC and 230 V AC
Number of cycles x 1000
Switching current (A)
Fig.: Service life graphs at 110 V DC
