RESET FAULT
Diagnostics: Position of rotary switch is not permitted or rotary switch was ad-
justed during operation.
} Remedy: Switch supply voltage off and then on again.
POWER, IN1, IN2, OUT, RESET, FAULT
Diagnostics: The operating mode selector switch "mode" is in its start position
(vertical position)
} Remedy: Switch off the supply voltage and set the required operating mode
on operating mode selector switch "mode".
Faults - malfunctions
} Contact malfunctions: If the contacts have welded, reactivation will not be possible after
the input circuit has opened.
} In the case of an error, the delay-on de-energisation contacts may open before the
delay time has elapsed.

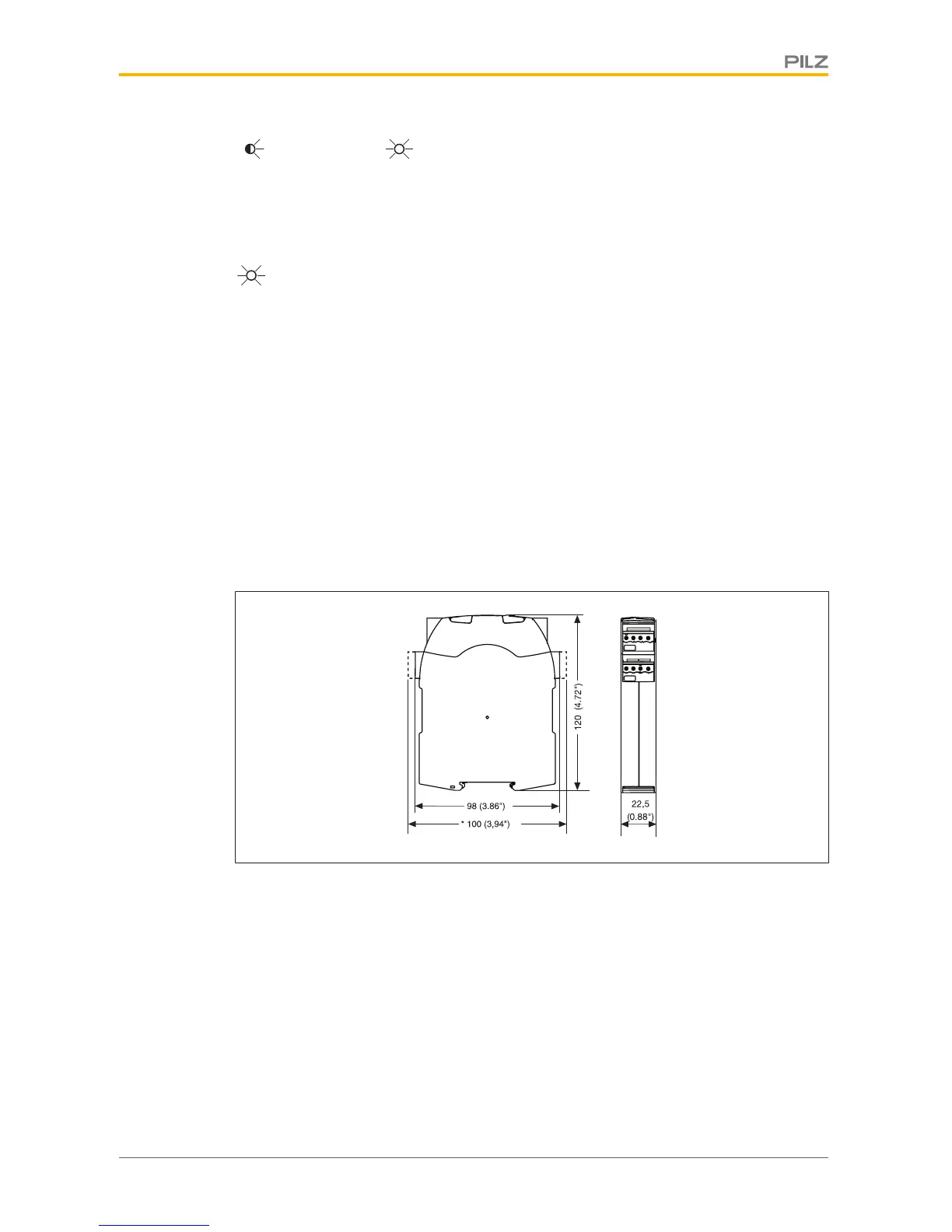

Dimensions in mm
*with spring-loaded terminals
