This function can be set in the RX unit as well as the TX unit via BCM. Two codes are
available.

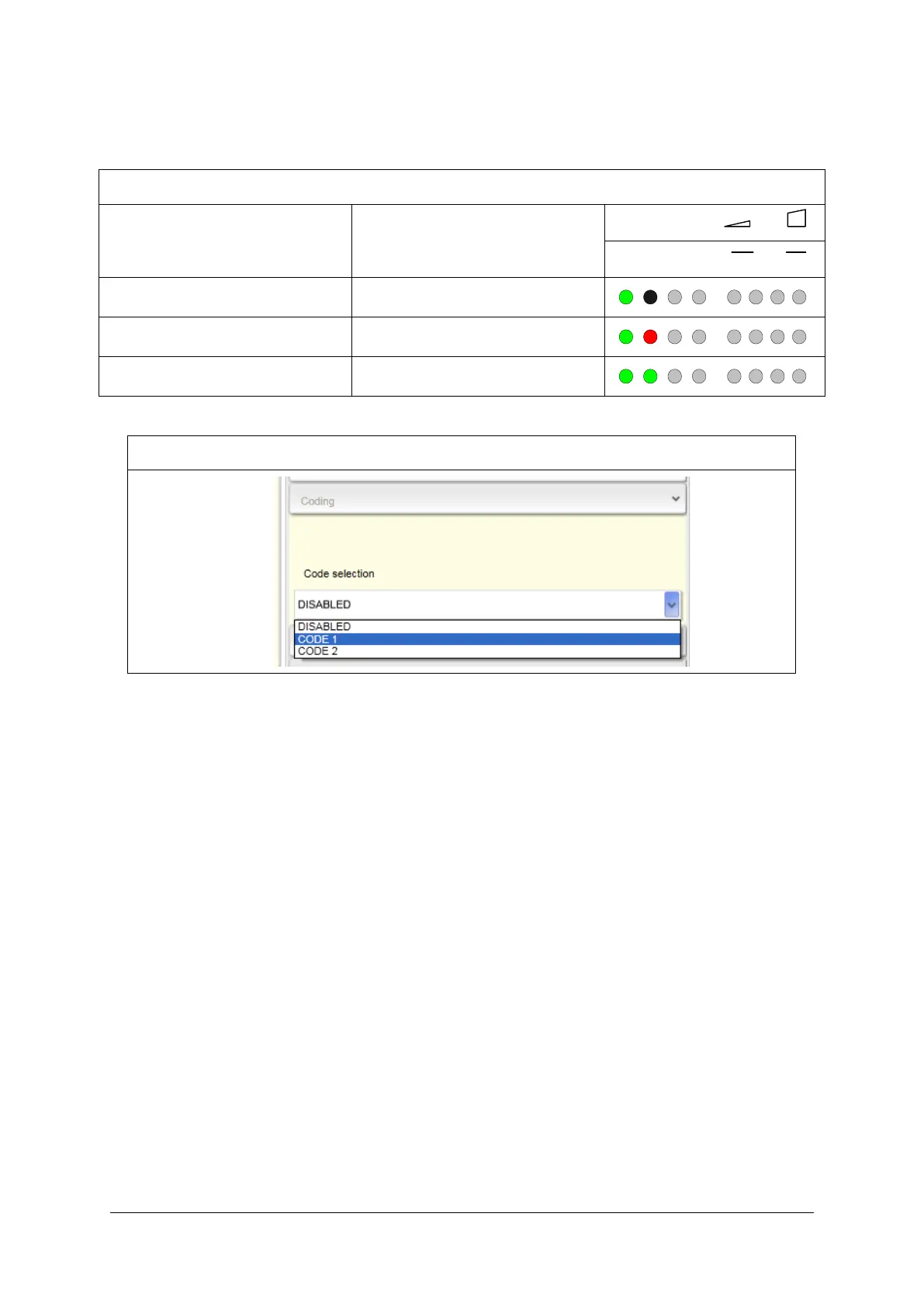

BCM configuration: Coding selection (TX and RX)
PWR OSSD EDM ACM
LEVEL
PWR TST SR LR
CODE
No Code LED 2 OFF
Code 1 LED 2 ON Red
Code 2 LED 2 ON Green
ACM configuration: Coding selection
