OPERATING MANUAL PSEN op4F/H-A series
Transmitter side (TX):
A
critical error cannot be eliminated via a RESET.
The light curtain must be switched on and off. If the error should persist, please contact Pilz
customer services.

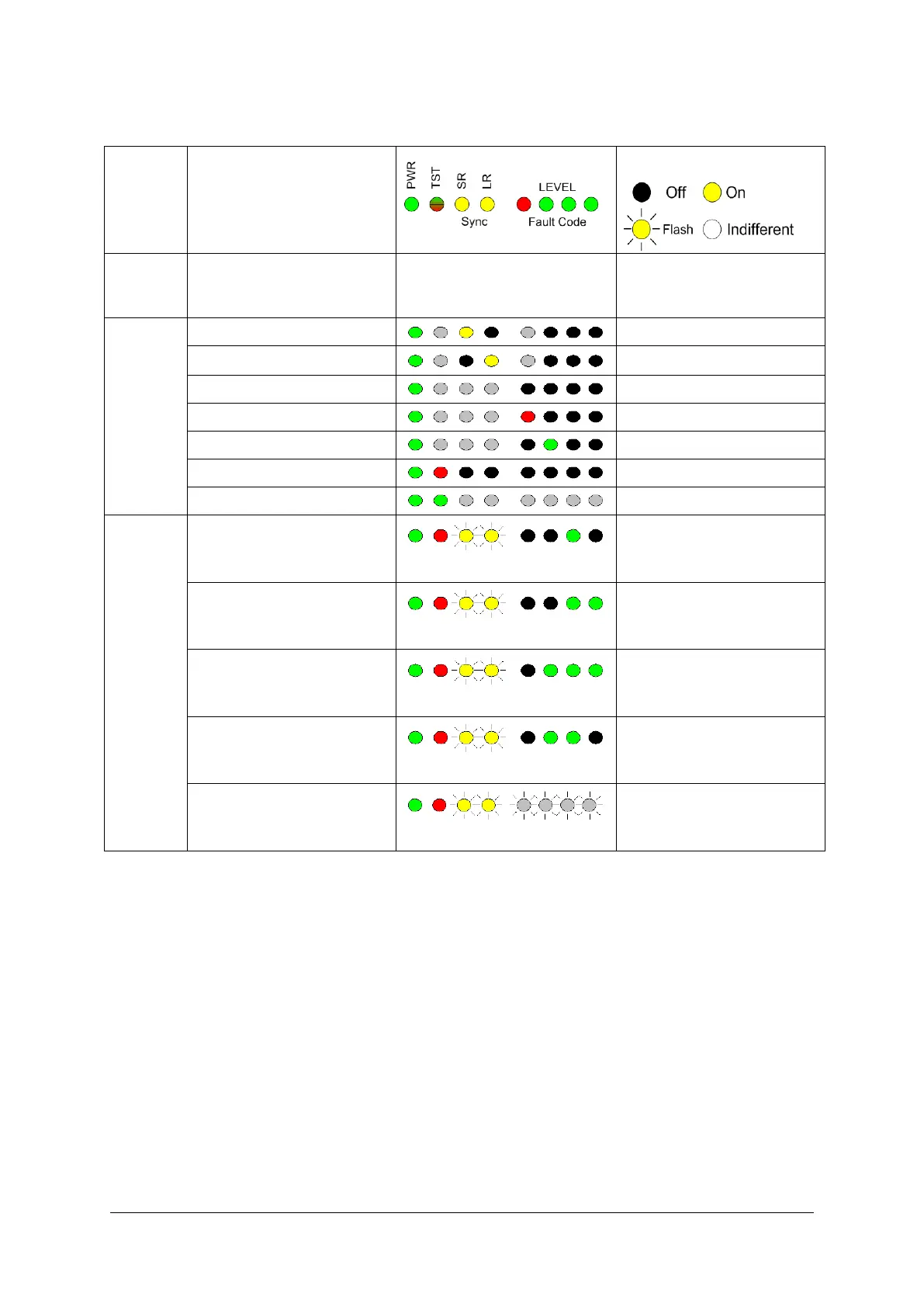

Meaning of LED
Operating
mode of
light
curtain
Information
LED DISPLAY
Suggested action
Normal
operating
mode
Light beams - reduced range
Light beams - long range
No code
Code 1
Code 2
Test
Check the wiring of the TEST.
Light beams
Error
Microprocessor error
Activate RESET.
If the problem should persist,
pl
ease contact Pilz customer
services.
Lens error
Activate RESET.
If the problem should persist,
pl
ease contact Pilz customer
services.
BCM configuration error
Perform basic configuration again.
If the problem should persist,
pl
ease contact Pilz customer
services.
Communication error
Activate RESET.
Check the cascading connection
and c
heck that the end cap is
installed correctly.
Critical error
Switch light curtain on/off.
If the problem should persist,
please contact Pilz customer
services.
