Installing the safety system PSS 3075-3 DP-S, PSS SB 3075-3,
PSS SB 3075-3 ETH-2 and PSS SB 3075-3 ETH-2 SE
Dimensions in mm (") excluding interfaces and operating controls :
H x W x D: 246.4 x 160.2 x 162 (9.70" x 6.31" x 6.38")

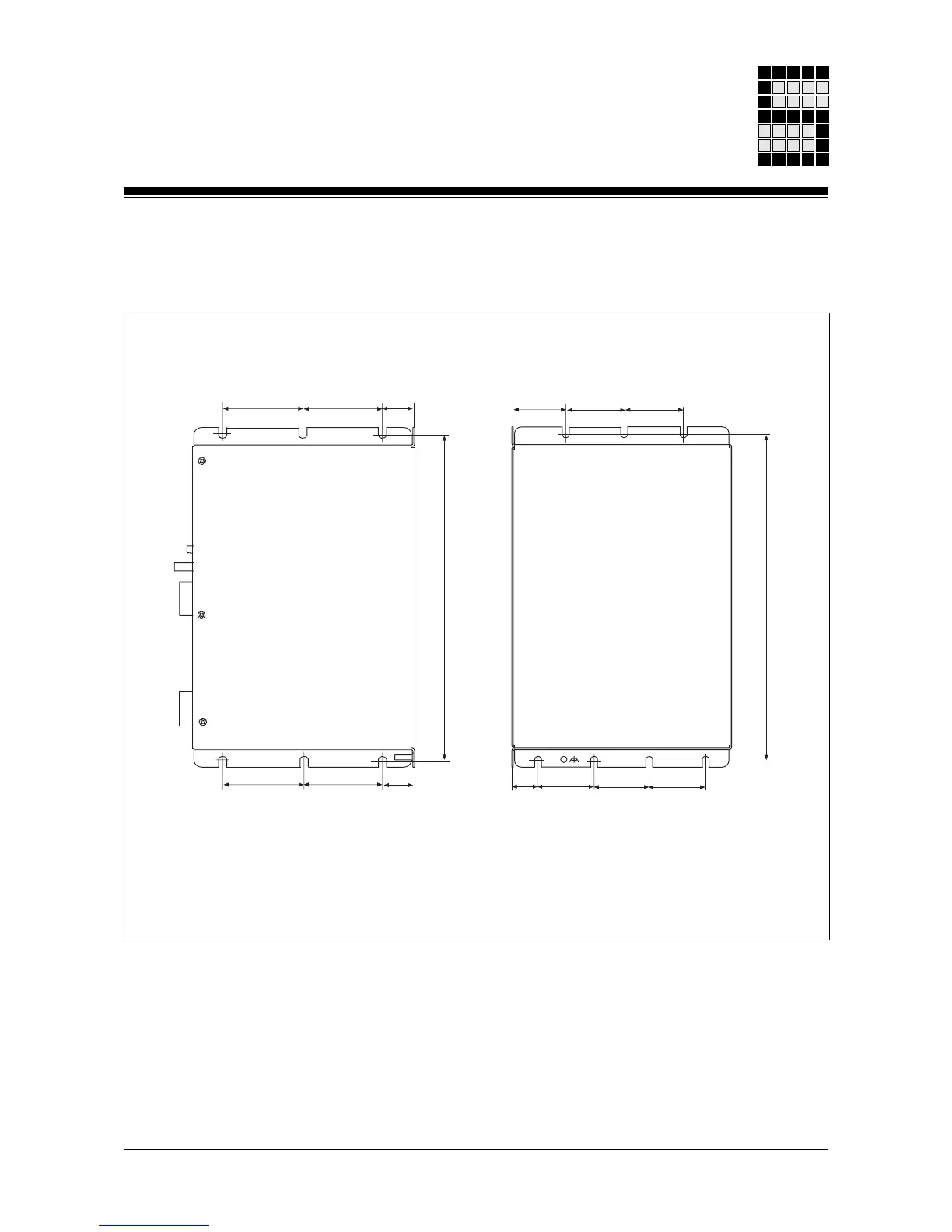

Fig. 5-2: Installation options for the programmable safety system PSS 3075-3 DP-S,
PSS SB 3075-3, PSS SB 3075-3 ETH-2 and PSS SB 3075-3 ETH-2 SE
Dimensions stated in mm (")
Option A:
Option B:
40
(1.57")
40
(1.57")
40
(1.57")
17
(0.67")
21
(0.83")
21
(0.83")
37
(1.46")
40
(1.57")
40
(1.57")
60
(2.36")
60
(2.36")
60
(2.36")
60
(2.36")
236,4 (9.31")
236,4 (9.31")
