Interfaces
8-8 Operating Manual: PSS 3075-3 Series
SafetyBUS p interface (“SafetyBUS p”)
Some unit types have a SafetyBUS p interface. Connection to SafetyBUS p
is via a male 9-pin D-Sub connector. Detailed information on SafetyBUS p
can be found in the SafetyBUS p manual.
Interfaces for standard bus connections
The standard bus interfaces are described in separate operating manuals.
The necessary operating manuals are supplied with each programmable
safety system in the PSS 3075-3 series, depending on the unit type.

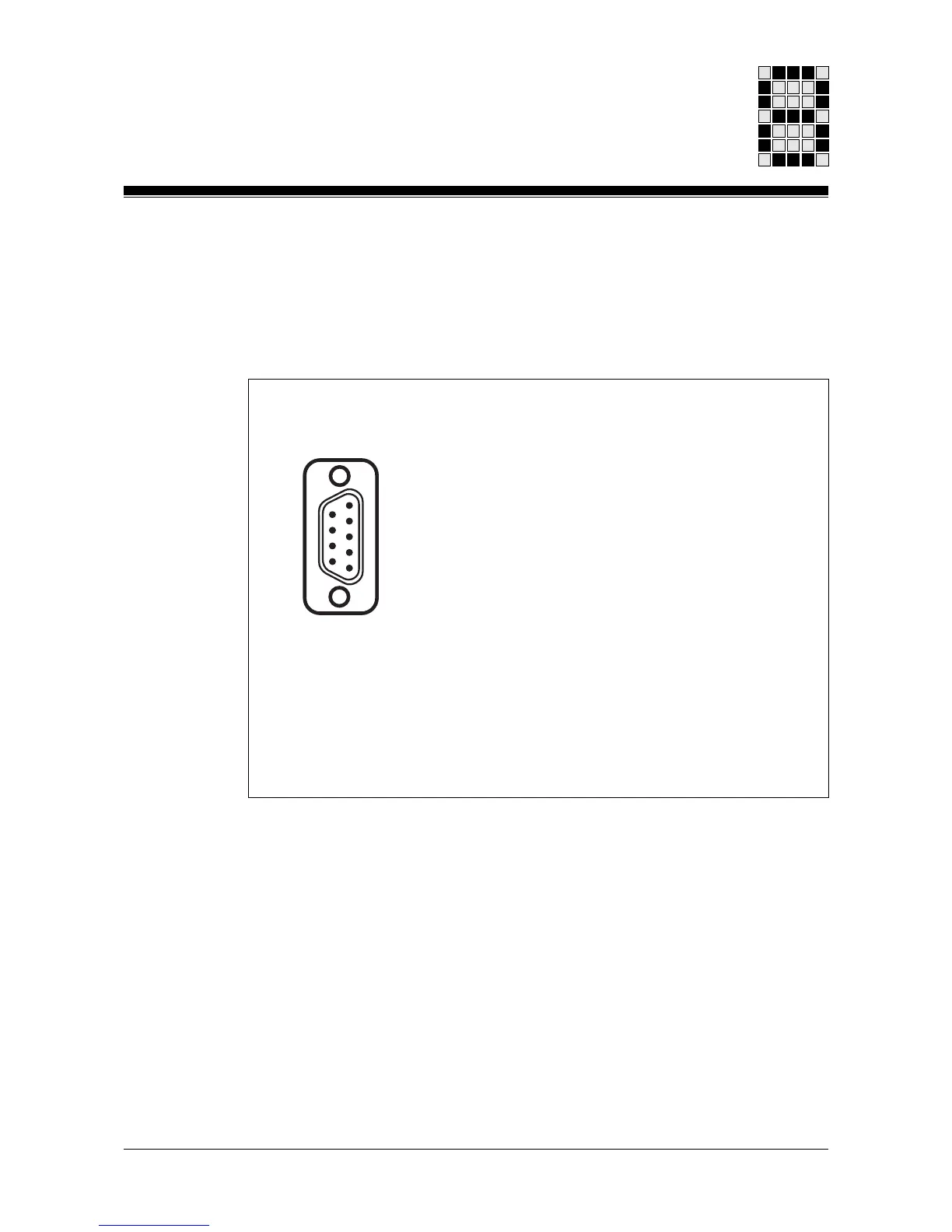

Fig. 8-6: Configuration of the SafetyBUS p interface
1: n.c.
2: CAN_L (brown)
3: CAN_GND (white)
4: n.c.
5: CAN_SHLD
6: n.c.
7: CAN_H (green)
8: Supply voltage for fibre-optic couplers
from Pilz
9: n.c.
n.c. = not connected
Male D-Sub connector
9-pin
5
1
6
9
