Captain-i - Installation Guide 13

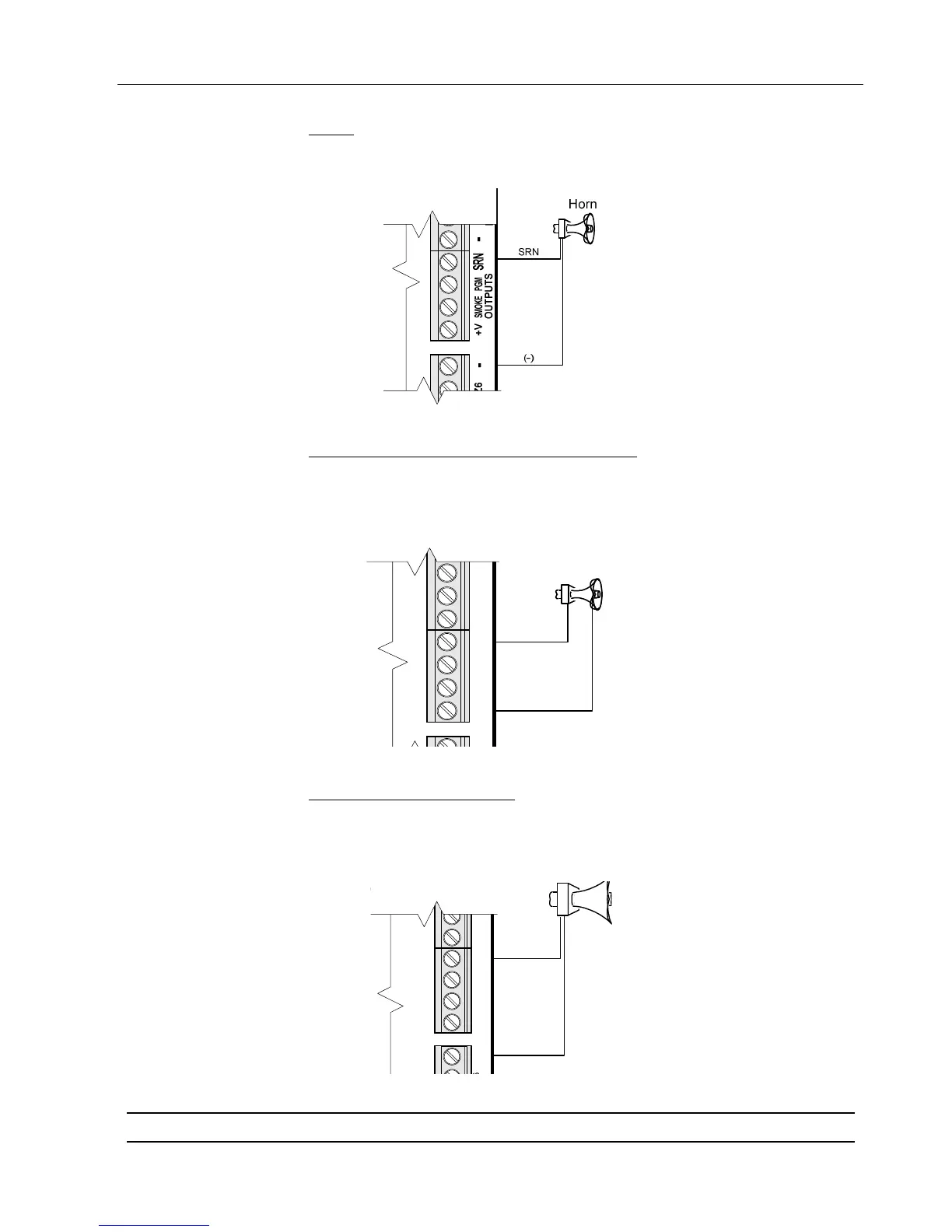

3.1.5.2 Horn
♦ Connect the horn to the SRN and common (-) terminals
♦ Program the siren tone (see section 5.4.1)
Horn (speaker siren)
3.1.5.3 Low current up to 200mA DC Siren
♦ Connect the siren’s GND end to the SRN terminal and siren’s power to the
(+)V terminal
♦ Program siren tone 9 (see section 5.4.1 on page 29)
Piezoelectric
siren
+V
SMOKEPGM
SRN
OUTPUTS
-
+V IN OUT
KEYPAD
DC Siren
3.1.5.4 High current DC Siren
♦ Connect the siren’s power end to the SRN terminal and the siren’s GND to the
common (-) terminal
♦ Program tone 9 for the siren as described in 5.4.1.
-
6
+V
SMOKEPGM
SRN
OUTPUTS
-
+V IN
O
KEYPAD
High Current Siren
Note: Unregulated siren consumes current from the control panel’s battery
