126
Mobile Cart: PDK-5014
Bracket
Plasma Display
Hexagonal bored bolts
(M8 × 20 mm)
Top side of Plasma Display

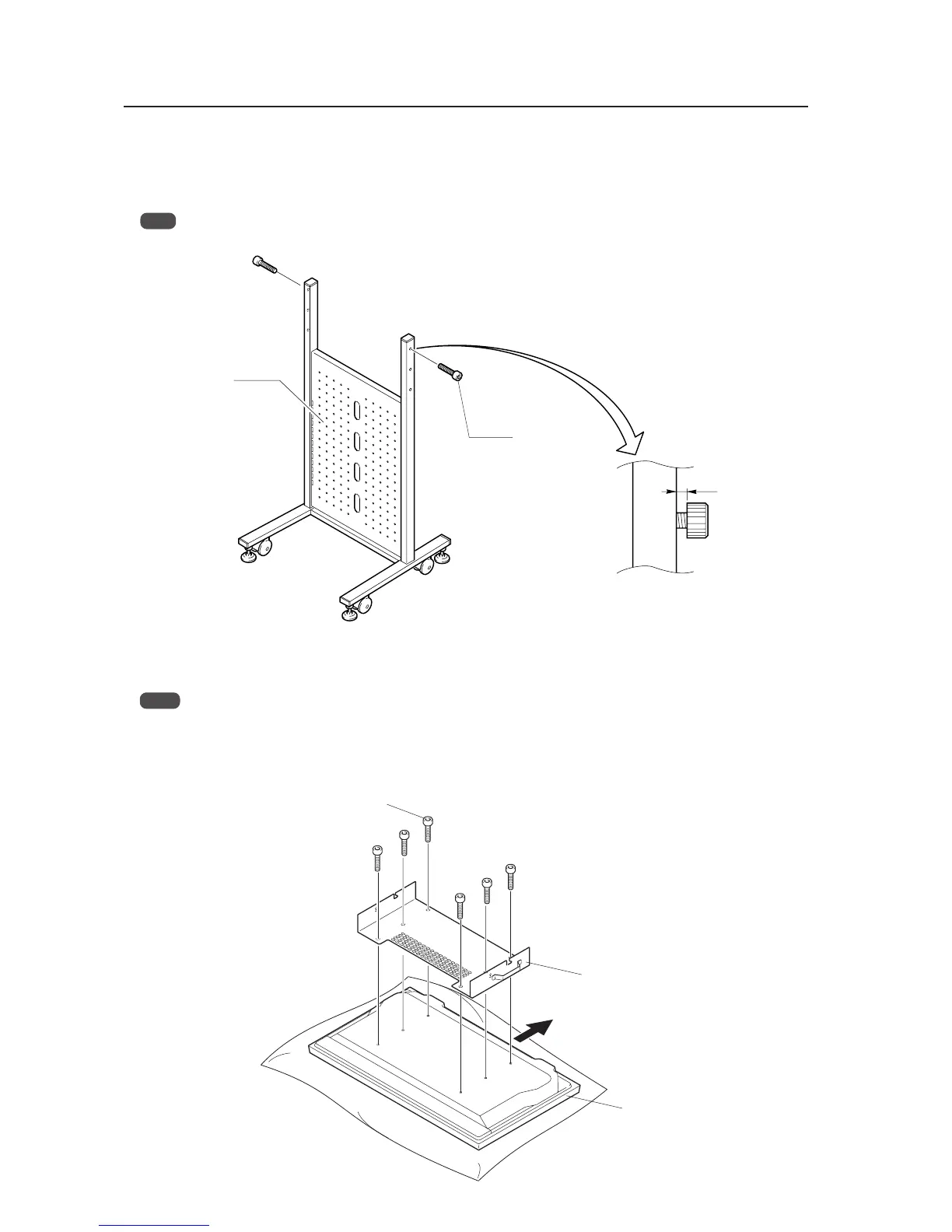

2 Attach bracket bolts to display stand
Attach the hexagonal bored bolts (M8 × 20 mm) to the display stand, being sure to leave a space of 5 to 6 millimeters
when doing so. These bolts may be attached at two different levels to allow a distance of 1350 mm or 1170 mm
from the floor to the center of the display panel.
Note
Do not place bracket bolts in the third set of screw holes from the top. These screw holes are used in Step 4 below.
Display stand
Hexagonal bored
bolts (M8 × 20 mm)
5 mm to 6 mm
3 Attach bracket to Plasma Display
Using the hexagonal bored bolts (M8 × 20 mm), attach the bracket to the rear of the Plasma Display by screwing the
bolts into the screw holes as the figure.
Note
• The Plasma Display should be placed on a blanket or other soft surface to avoid scratching or otherwise damaging
the surface of the display.
• For safety, alternately tighten each bolt two times or more until they are firmly fixed in place.
[507CMX : 427CMX]
To Next Page
