Integrator Mode
The ‘MIRROR MODE: XY’ setting is useful when the panel is hung upside down from the ceiling. With the display
suspended from the PDK-5012 mount, run the bundled cables up toward the ceiling.
Note
• To reverse an up-down setting, set ‘MIRROR MODE’ to ‘XY’ or ‘Y’.
• When using the PDK-5012 ceiling mount, pay attention to the operating temperature conditions (Refer to section
4.8, “Ceiling Mount Unit: PDK-5012” (pg. 116)).
Factory setting: OFF
1 Enter the integrator mode.
(Refer to section 5.4.1, “About the Integrator Mode” (pg. 214).)
2 Select ‘OPTION’.
3 Place the cursor on ‘MIRROR MODE’ then press the [SET]
button to change the setting.

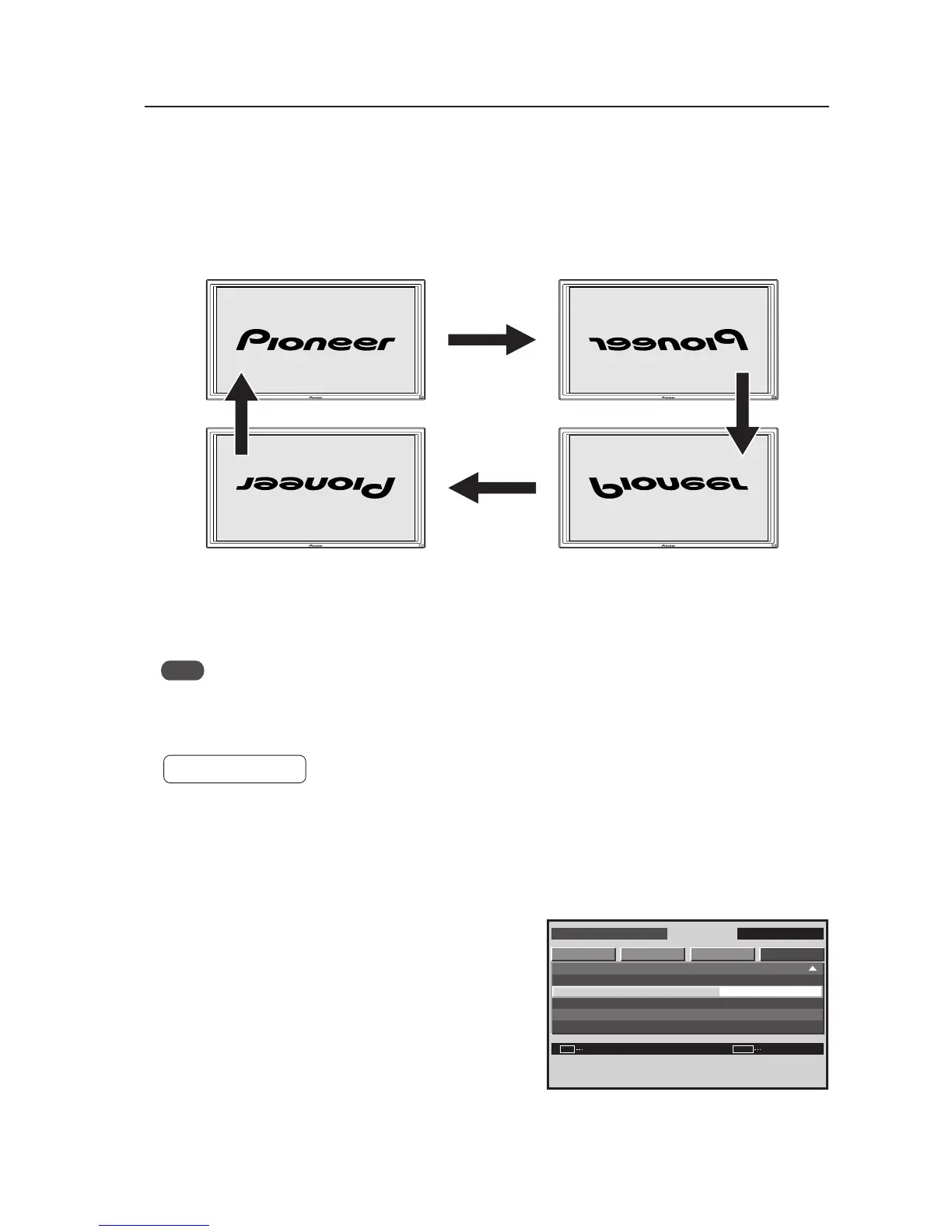

22) MIRROR MODE Setting
This function reverses the image displayed on the screen in various ways.
For normal reproduction: Set to ‘MIRROR MODE: OFF’
For left-right reversed reproduction: Set to ‘MIRROR MODE: X’
For up-down reversed reproduction: Set to ‘MIRROR MODE: Y’
For up-down, left-right reproduction: Set to ‘MIRROR MODE: XY’
Screen 3
Up-down reversal
Normal operating state
Left-right reversal
Up-down, left-right reversal
[MIRROR MODE: OFF]
[MIRROR MODE: XY]
[MIRROR MODE: X]
[MIRROR MODE: Y]
INTEGRATOR INPUT1
CHANGE
SCREEN SETUP OPTION
PWR. ON MODE
SE AMLE SS SW
M I RROR MODE
MULT I SCREEN SET
F UNCT I ON RESET
:
SET EXITMENU
X
REPEAT T I MER
