Pioneer PDP-507CMX User Manual

89
Video Card: PDA-5003/PDA-5004
Connection to a personal
computer
Connection method differs depending on the computer
type. When connecting, please thoroughly read the
computer’s operating instructions.
Before making connections, be sure to make sure that
the personal computer’s power and display’s main
power is off.
For the PC input signals and screen sizes that the
display is compatible with, please refer to the Plasma
Display’s Operating Instructions.

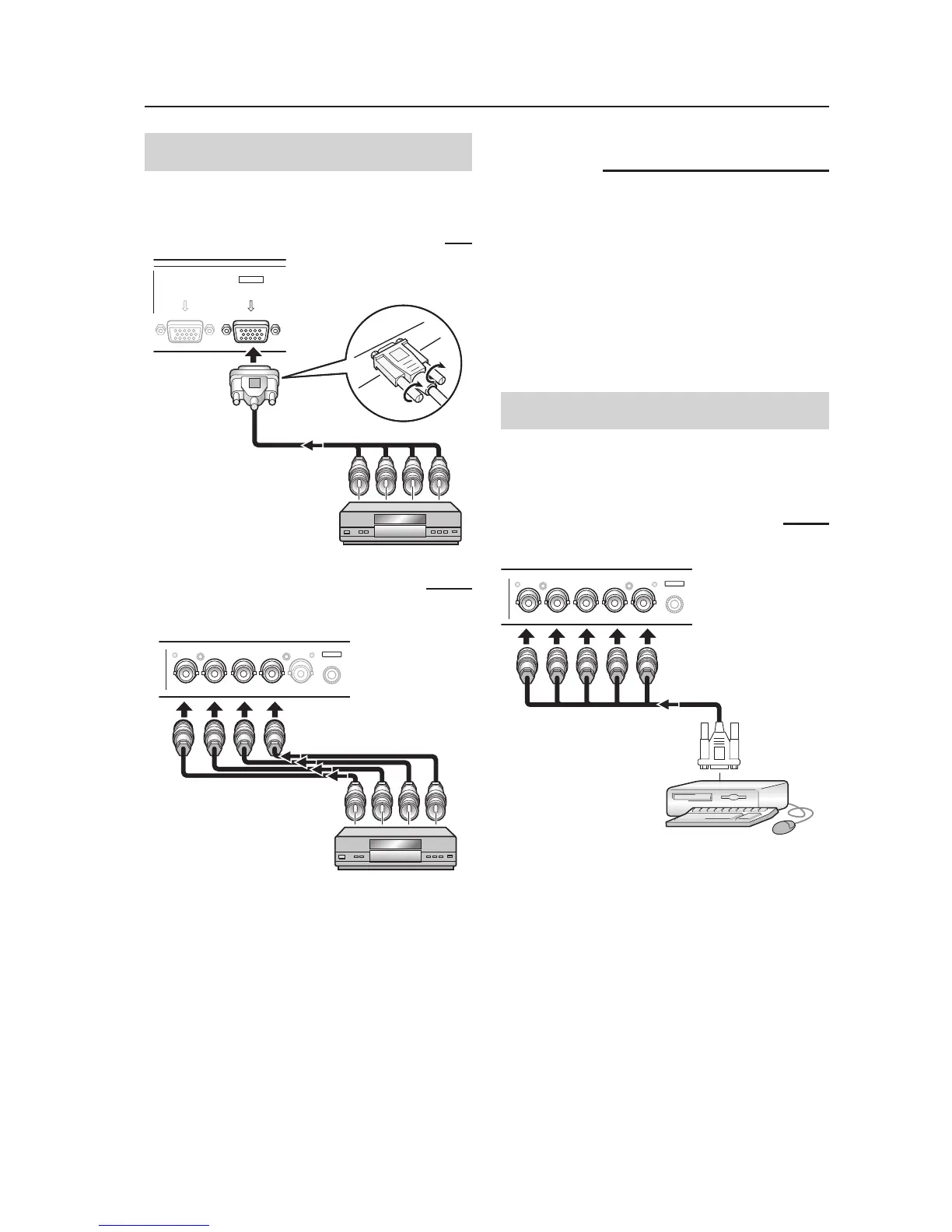

Connection of separate SYNC analog RGB
source
Make separate SYNC connections for a personal
computer that has RGB output separated into 5 output
signals: green, blue, red, horizontal synchronization
signal, and vertical synchronization signal.
When connecting to ANALOG RGB (INPUT5)
[Connections for PDA-5003]
BR VD HD (H/V SYNC) G(ON SYNC)
ANALOG RGB
INPUT5
When using INPUT5, set the impedance selector
switch to match the output impedance of the
connected computer’s synchronization signal.
When the output impedance of the sync signal is below
75 Ω remove the video card and set the impedance
selector switch to 75 Ω.
On-screen setup is necessary after connection.
Connection of composite SYNC analog RGB
source
Make composite SYNC connections for a component
with output that has the vertical synchronization signal
layered on top of the horizontal synchronization signal.
When connecting to ANALOG RGB IN (INPUT1)
ANALOG RGB OUT
(D-Sub)
ANALOG RGB IN
(D-Sub)
INPUT1
On-screen setup is necessary after connection.
When connecting to ANALOG RGB (INPUT5)
[Connections for PDA-5003]
BR VD HD (H/V SYNC) G(ON SYNC)
ANALOG RGB
INPUT5
When using INPUT5, set the impedance selector
switch to match the output impedance of the
connected component’s synchronization signal.
When the output impedance of the sync signal is below
75 Ω remove the video card and set the impedance
selector switch to 75 Ω.
On-screen setup is necessary after connection.
Note
When making composite SYNC connections, do not connect
anything to the VD jack. If connected to, the picture may not
be displayed properly.
[507CMX : 427CMX]
