Integrator Mode
13) Assigning an ID
This option assigns the ID necessary to adjust only the designated display in a video wall or to make an adjustment
using an RS-232C command. For details see 5.5 RS-232C Adjustment (pg. 262).
Factory setting: ALL
1 Enter the integrator mode.
(Refer to section 5.4.1, About the Integrator Mode (pg. 214).)
2 Select OPTION.
3 Place the cursor on ID NO. SET then press the [SET]
button.
4 Press the [2/3] buttons to change the settings.
Each time a [2/3] button is pressed, the setting changes
as shown below.
ALL ............... ID number cannot be set so the panel can
be operated from all remote controls.
01H to FFH ... The ID number is set to the designated
number.
Display ID numbers may match the ID number that is displayed when the remote controls ID NO.
SET button is pressed. The remote controls [ID NO. SET], [CLEAR] buttons are operational.
Press the [SET] button to return to screen 3.
The ID NO. SET settings are common for all inputs.
7 The Remote Control ID
When several Plasma Displays are installed at a single location, it is possible to operate only specified Plasma
Displays with the remote control. Set the following options:
Factory setting: ALL
1 Register panel ID numbers through the integrator menu.
2 Separately register the ID numbers for remote control use
with the [ID NO. SET] button on the remote control.
Press the [ID NO. SET] button to display screen 2.
Each time a [2/3] button is pressed, the setting changes
as shown below.

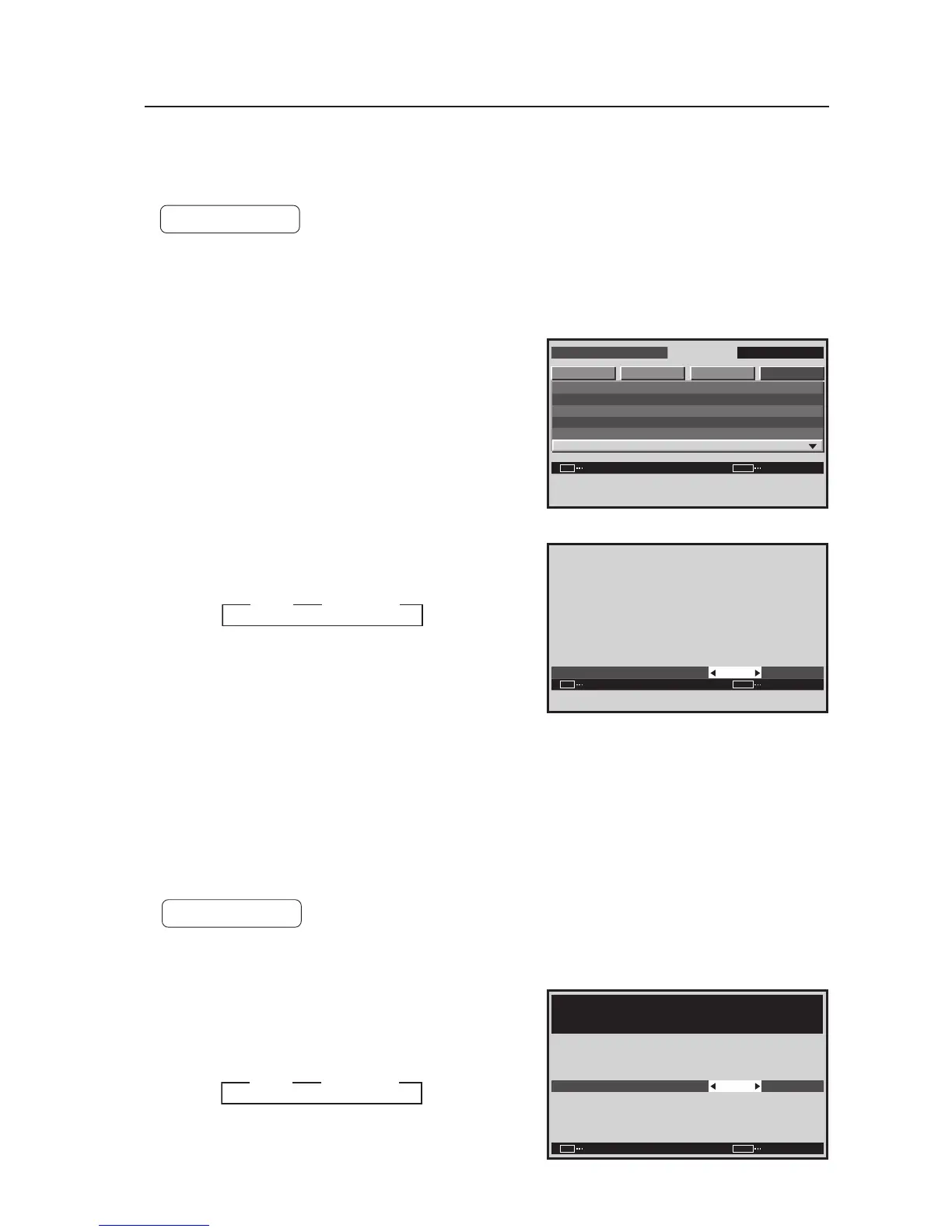

INTEGRATOR INPUT1
ENTER
SCREEN SETUP OPTIONPICTURE
SET EXITMENU
PROGRAM T I MER
SCREEN MASK
S I DE MASK
V I DEO WAL L
BAUD RATE
I D NO. SET
:
:
:
GREEN
01H
1 2 00BPS
Screen 3
3 ALL 2 3 01H to FFH 2
ID NO. SET
:
SET SET EXITMENU
01H
Screen 4
ID NUMBER
:
SET SET EXITMENU
ALL
ID SELECT
POSITION: 1
Screen 2
3 ALL 2 3 01H to FFH 2
