Speaker System: PDP-S56-LR [427CMX]
4.12.3 Installation on the Plasma Display
1) Installation procedure
Install the speaker system according to the steps (1)
through (4).
Notes
• The speakers are designed specifically for the left
(L) and right (R) sides of the Plasma Display. When
mounting them on the display, refer to the letters
(“L” and “R”) indicated on the speakers’ hooks.
• This speaker is of an antimagnetic design; however,
depending on its placement such as bringing the
speaker into the vicinity of a monitor other than a
Plasma Display, the speaker may cause irregular
noise or other effects. Should this occur, please move
the speaker away from the monitor.

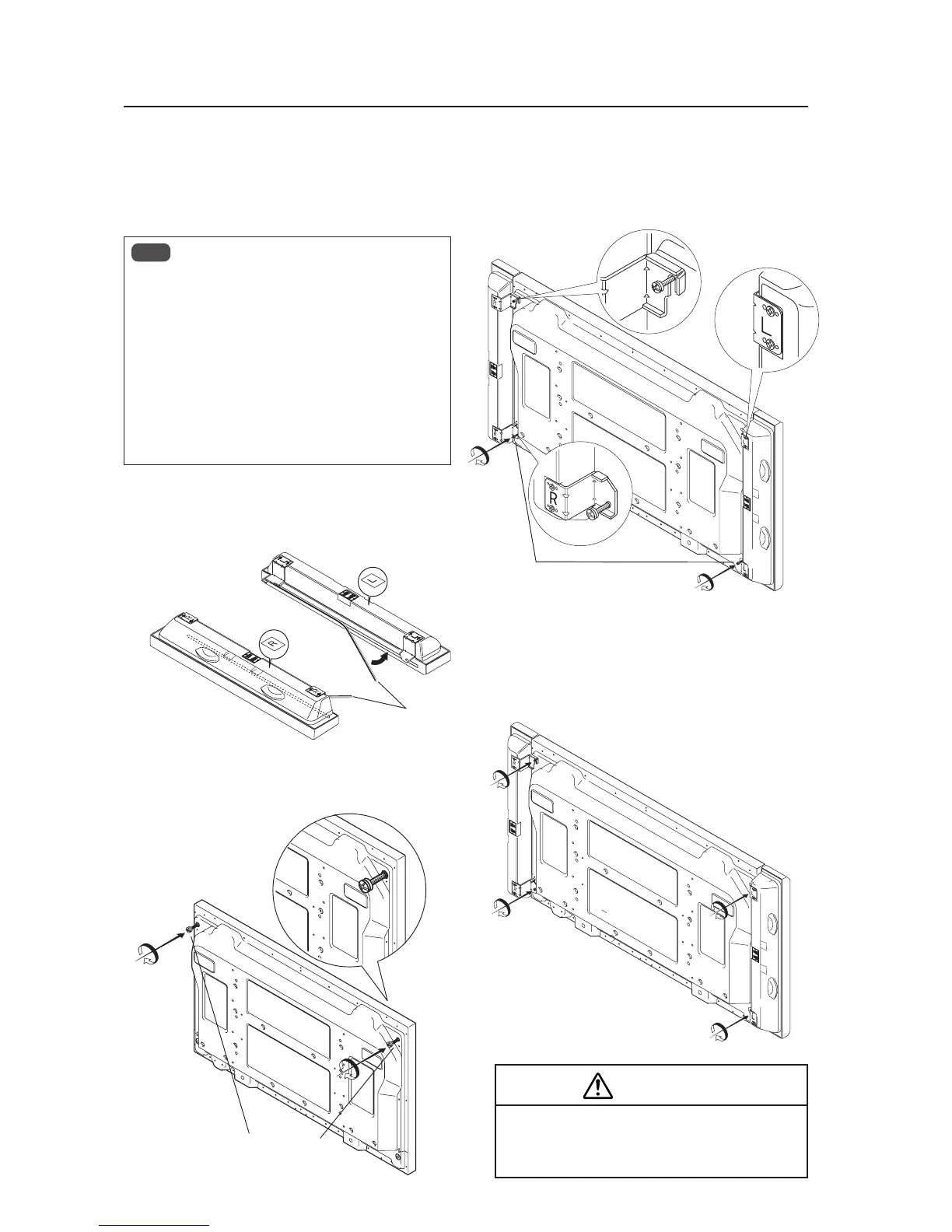

(1) Remove the seals from the cushions and then attach
the cushions to the sides of the speakers in the
locations indicated in the diagram below.
(2) Screw the M8 screws loosely into the screw holes
located at the top of the Plasma Display (two locations).
(3) Fit the hooks at the top of the speakers over the screws
just inserted, then align the holes in the hooks of the
speakers over the screw holes at the bottom of the
Plasma Display and use the M8 screws to screw
loosely into place.
(4) Tighten the screws just inserted firmly into place (four
locations).
* Tighten the screws while pushing the speakers lightly
against the Plasma Display. Check to be sure that all
four screws have been screwed firmly into place.
Cushions
Screws (M8)
Warning
Never hold the speakers when speakers are
attached to the monitor to move the monitor. Doing
so might result in the monitor falling, and this in
turn might result in bodily injury.
Screws (M8)
