24
Installation Conditions

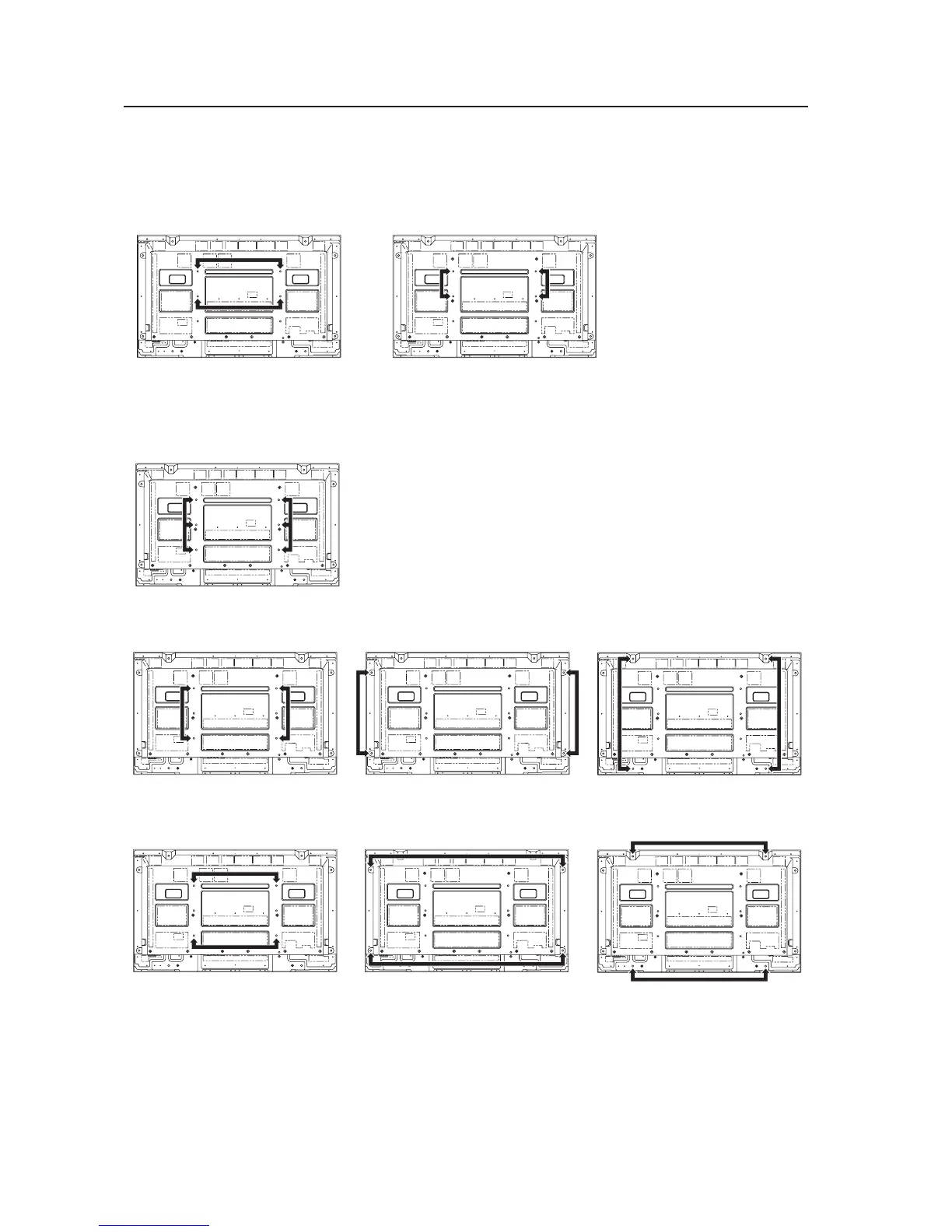

This unit is designed to be mounted using four bolt holes. For additional safety, we recommend securing it at four or six
points on opposite sides of the horizontal and vertical center lines, as shown in the drawing below.
Poor methods for securing
Suggested methods for securing
Secured at four points (with mounting hardware attached to the top and bottom)
*Attach using M8x4.
Secured at four points (with mounting hardware attached to the sides)
*Attach using M8x4.
Take proper precautions to prevent pinching the power cord or signal cables.
Secured at six points
*Attach using M8x6.
[507CMX]
