266

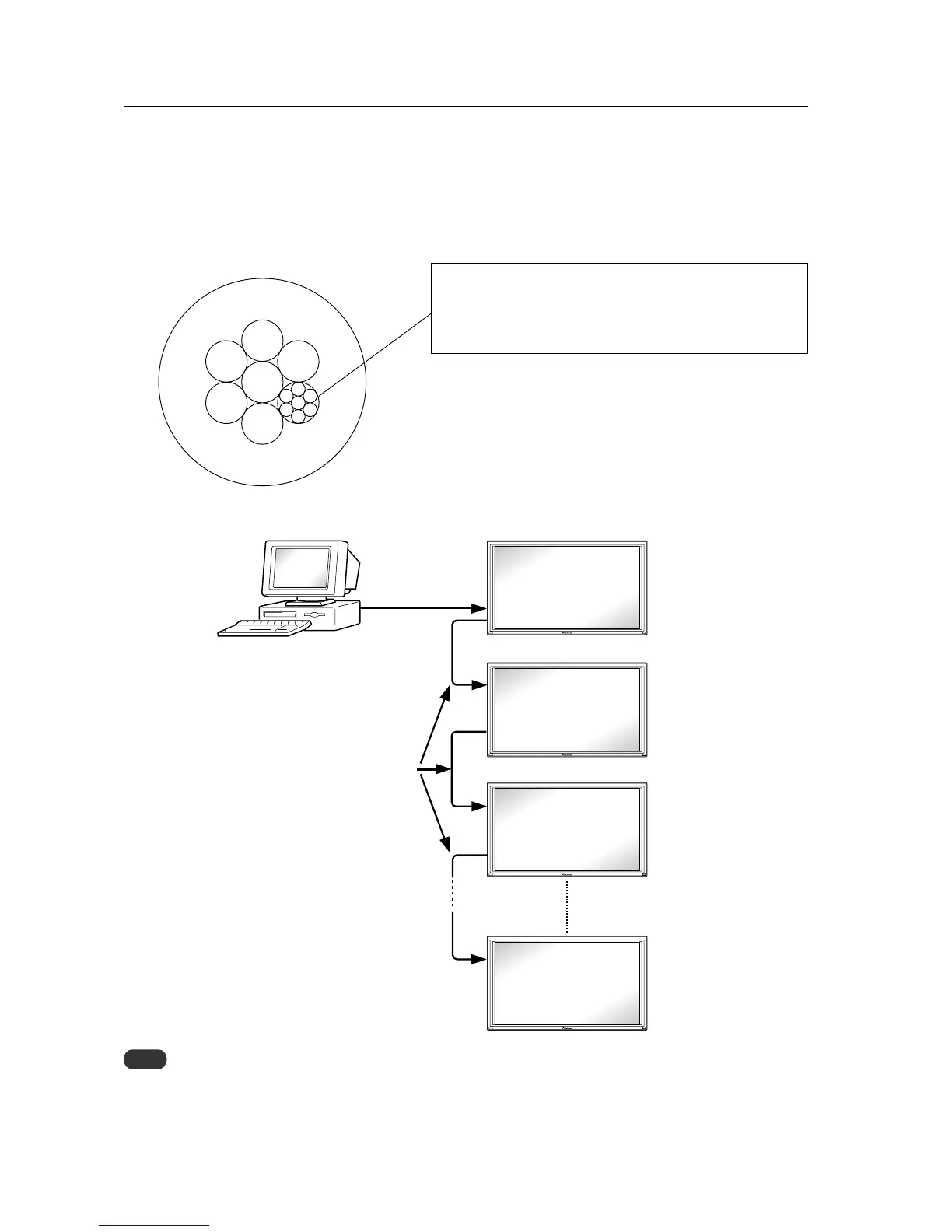

Under the connection conditions shown below, use a combination cable for up to 16 panels.
Conditions: 1 Length of RS-232C cable connecting PC to Plasma Display: 5 m
2 Combination cable length: 5 m each
3 Wire specifications for linking cable: Mini Din 6-pin straight (7 strand cable)
For one strand, suitable for AWG28:
Cross-section area = 0.08 mm
2
≠
7 strands × π r
2
= 7 × 3.14 × 0.06
2
= 0.079 mm
2
≠ 0.08 mm
2
Note
For details on the number of displays that can be connected in series using the video OUT terminal (INPUT1, 4), refer to
section 2.3, “Controls and Connectors” (pg. 12).
PC
RS-232C
Combination cable 5m
Plasma Display
1
2
3
#
OUT
IN
OUT
IN
OUT
IN
5m
RS-232C Adjustment
To Next Page
