41
[507CMX]
Cation : Due to possible heat issues, we do not recommend installing the panel in narrow, enclosed areas.
✩ Operating Temperature Restrictions
• Ambient temperature: 0 °C to 40 °C
• The same operating temperature restrictions apply to the speaker system (PDP-S53-LR).
✩ Operating Temperature Restrictions for Upside-Down Installations
* Upside-down mounting is unavailable when embedding this device in a wall.

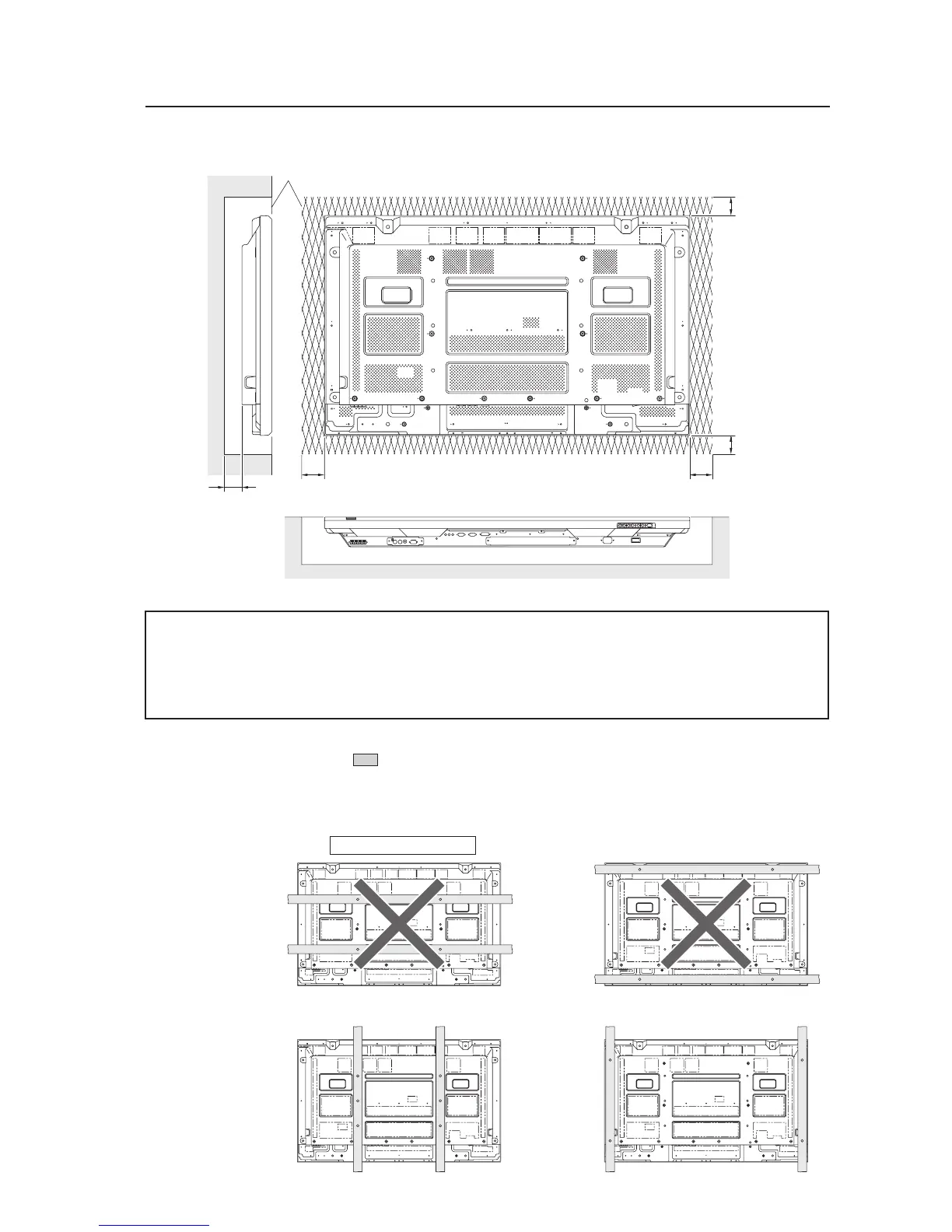

Special Installation (Embedding in the wall)
(2) Embedding in walls with no space provided behind the unit.
Panting (Punching) net (numerical aperture 50 % or over)
100 mm or
more
100 mm or
more
100 mm or
more
100 mm or
more
50 mm or
more
Methods of Securing: Basic methods of securing are shown below. Avoid blocking or covering areas aside from those
indicated by . The methods indicated by a large “X” must not be used.
Before attaching the unit to fittings, double-check that the thickness and height of the fittings
and the number of bolts is correct.
(Also refer to “3.5.1 Mounting to fittings” (pg. 35).)
Installation is not possible
To Next Page
