Cation : Due to possible heat issues, we do not recommend installing the panel in narrow, enclosed areas.
✩ Operating Temperature Restrictions
(*1)
• Ambient temperature: 0 °C to 35 °C
*1
For this installation, set the ‘FAN CONTROL’ to ‘MAX’ as shown in “5.4.3 Adjustment and Setting in the Integrator Mode 14)
Cooling Fan Control Setting” (pg. 235).
Special Installation (Place product upright and flush, embedded in the wall)

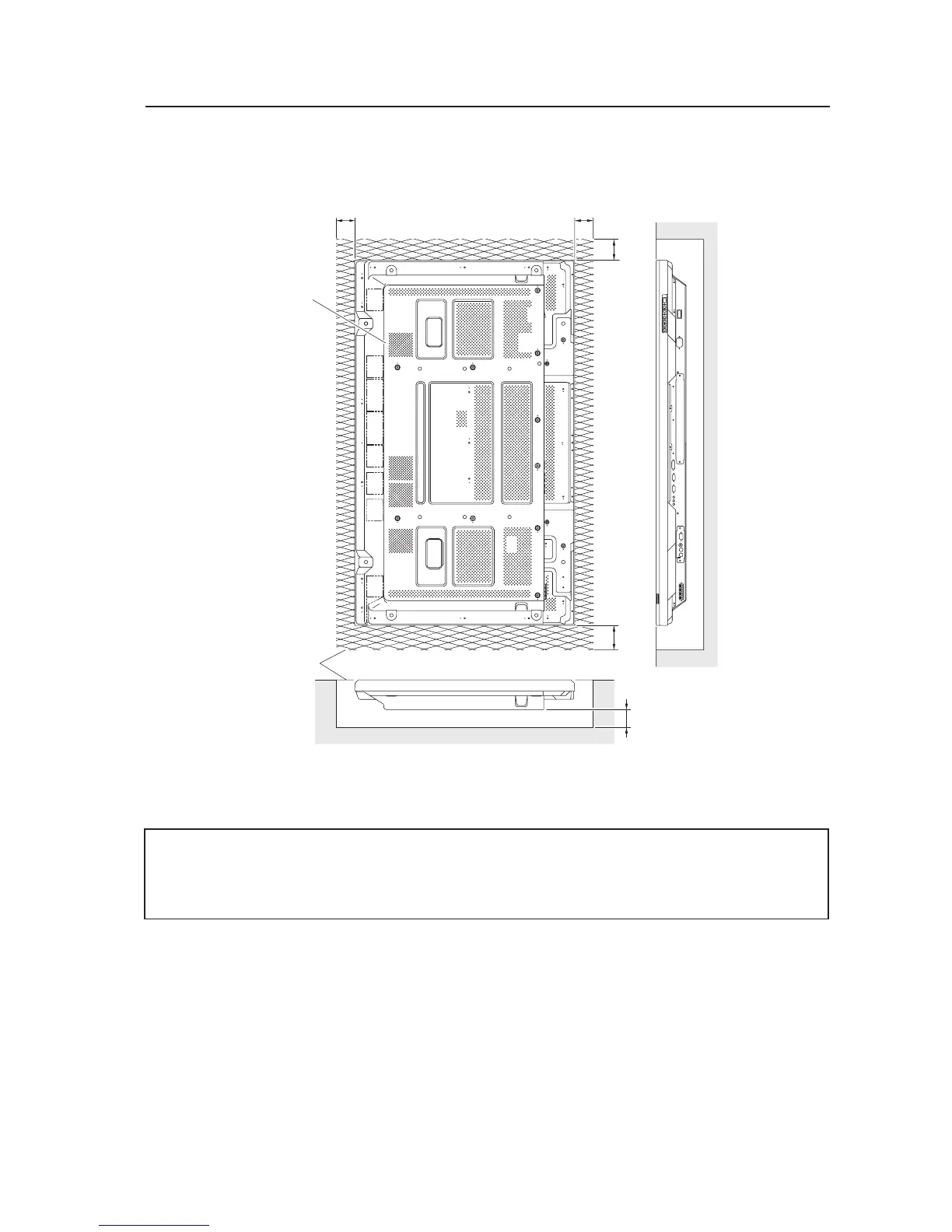

(2) Embedding in walls with no space provided behind the unit
Panting (Punching) net
(numerical aperture 50 %
or over)
100 mm or
more
100 mm or
more
100 mm or
more
100 mm or
more
50 mm or
more
Attach so that the
fan is on the left
side when viewed
from the rear.
