[427CMX]Special Installation (Hanging on the wall lengthwise)

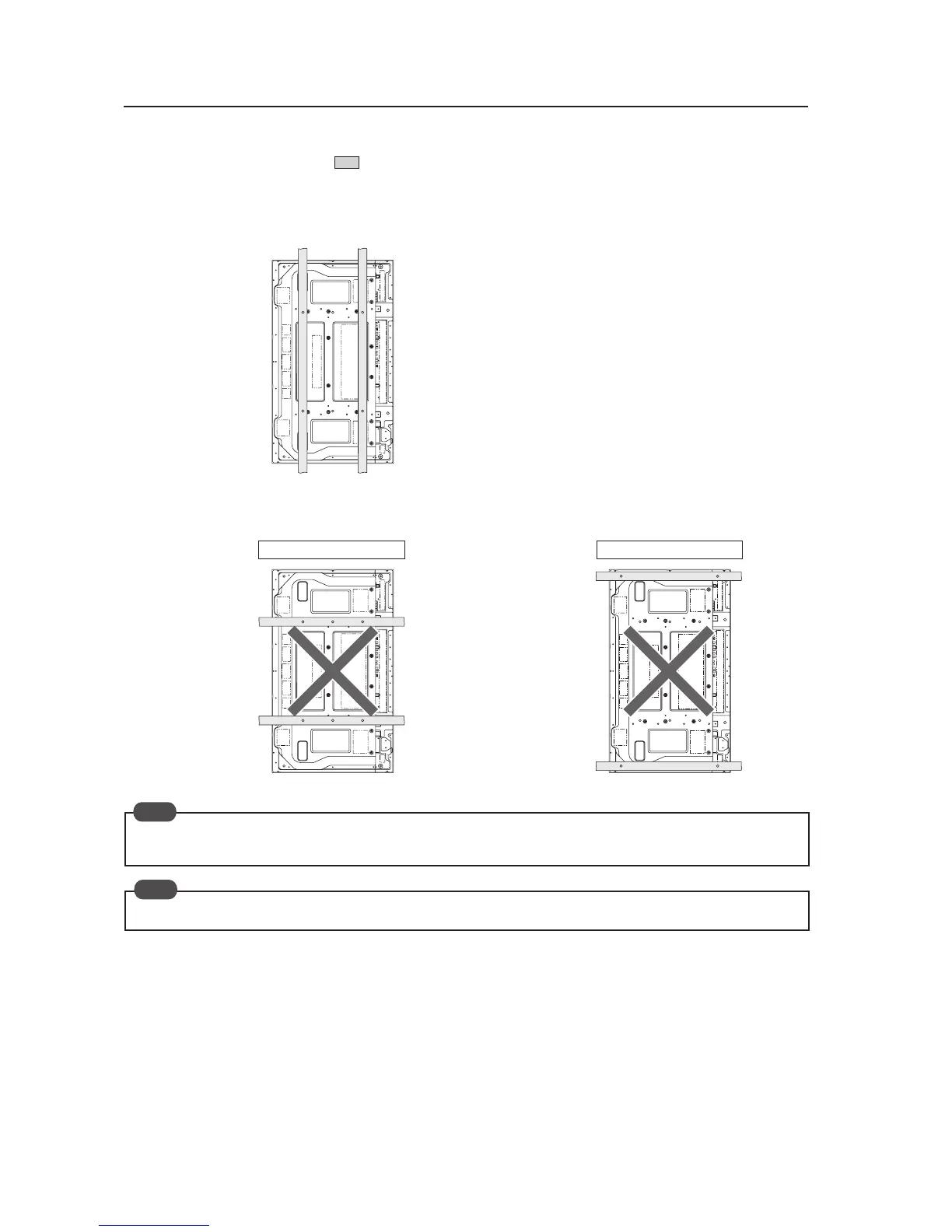

Methods of Securing: Basic methods of securing are shown below. Avoid blocking or covering areas aside from those
indicated by . The method indicated by a large “X” must not be used.
Before attaching the unit to fittings, double-check that the thickness and height of the fittings
and the number of bolts is correct.
(Also refer to “3.6.1 Mounting to fittings” (pg. 55).)
Heat air is drawn from the interior of the unit by fans. Before installation, consider the heat resistance of the wall or
other surface behind the unit. Exhaust temperatures can be 30 °C higher than the outside temperature.
For wall-mounting, do not bundle the cables in a way that block vents.
Note
Note
Installation is not possible
Installation is not possible
To Next Page
