Pioneer PDP-507CMX User Manual

85
Video Card: PDA-5003/PDA-5004

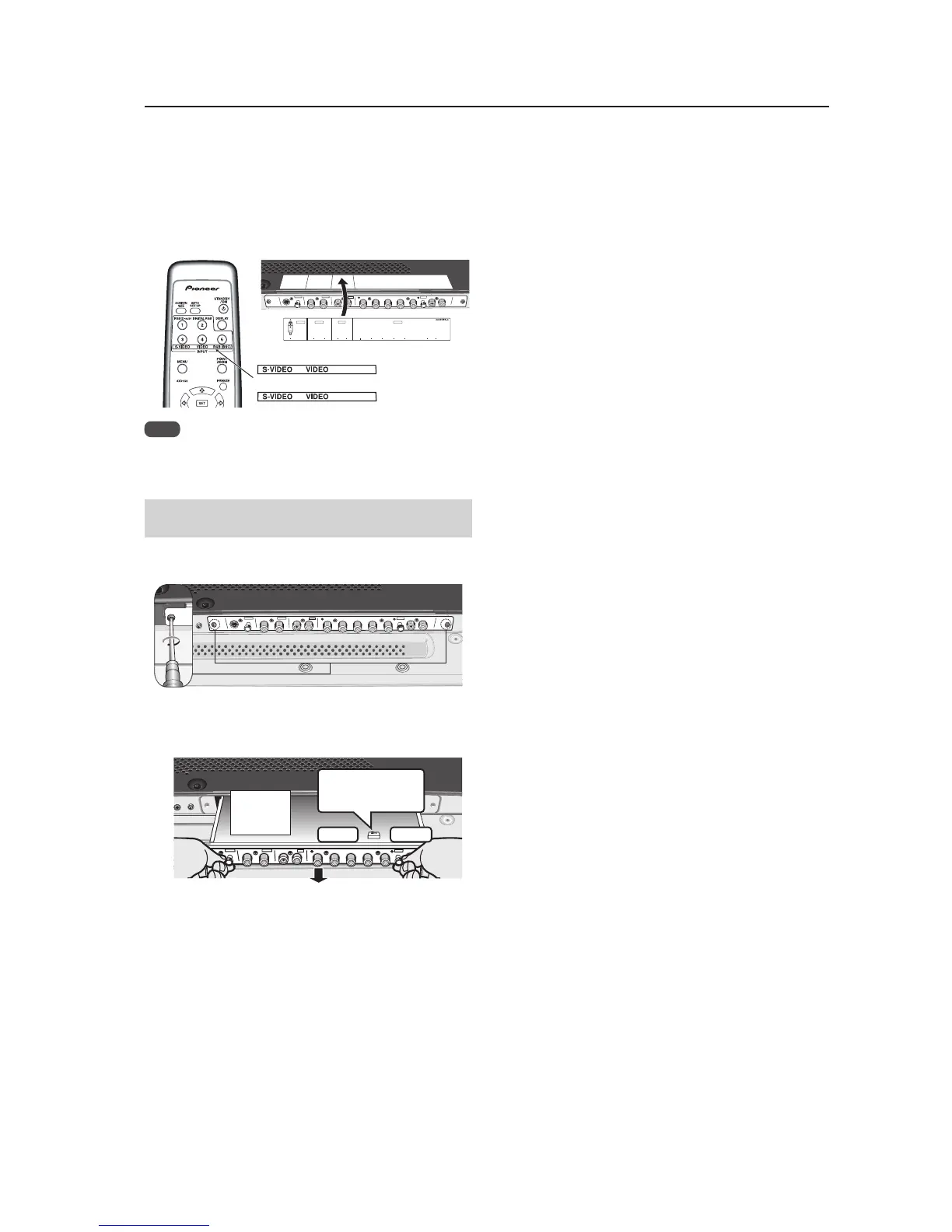

4 Affix the accessory connector indicator label to the
Plasma Display then affix the remote control label
to the remote control that is furnished with the
Plasma Display.
Notes
Note
Use a soft cloth to gently wipe away any dust or soiling
from the surface before affixing the label.
Video Card Removal (Be careful not to insert
and remove it frequently).
1 Remove the two screws holding the video card.
AUDIO INPUT5
INPUT 3/4 AUDIO
VIDEO
ANALOG RGB
HD (H/V SYNC)
S-VIDEO INPUT3 INPUT4
2 Holding the inside tabs, pull the video card straight
out.
AUDIO INPUT5
INPUT 3/4 AUDIO
VIDEO
ANALOG RGB
HD (H/V SYNC)
S-VIDEO INPUT3 INPUT4
Impedance
selector switch
75 Ω
2.2 kΩ
Device
mounting
surface
AUDIO INPUT5
INPUT 3/4 AUDIO
VIDEO
ANALOG RGB
HD (H/V SYNC)
S-VIDEO INPUT3 INPUT4
INPUT3
S-VIDEO
VIDEO INPUT3
/ 4 ANALOG RGB AUDIO
(ON SYNC) (H/V SYNC)
IN OUT R L RLGBRHDVD
INPUT4 INPUT5AUDIO
RGB (BNC)
COMPONENT
PDA-5003
PDA-5004
[507CMX : 427CMX]
