91
Video Card: PDA-5003/PDA-5004

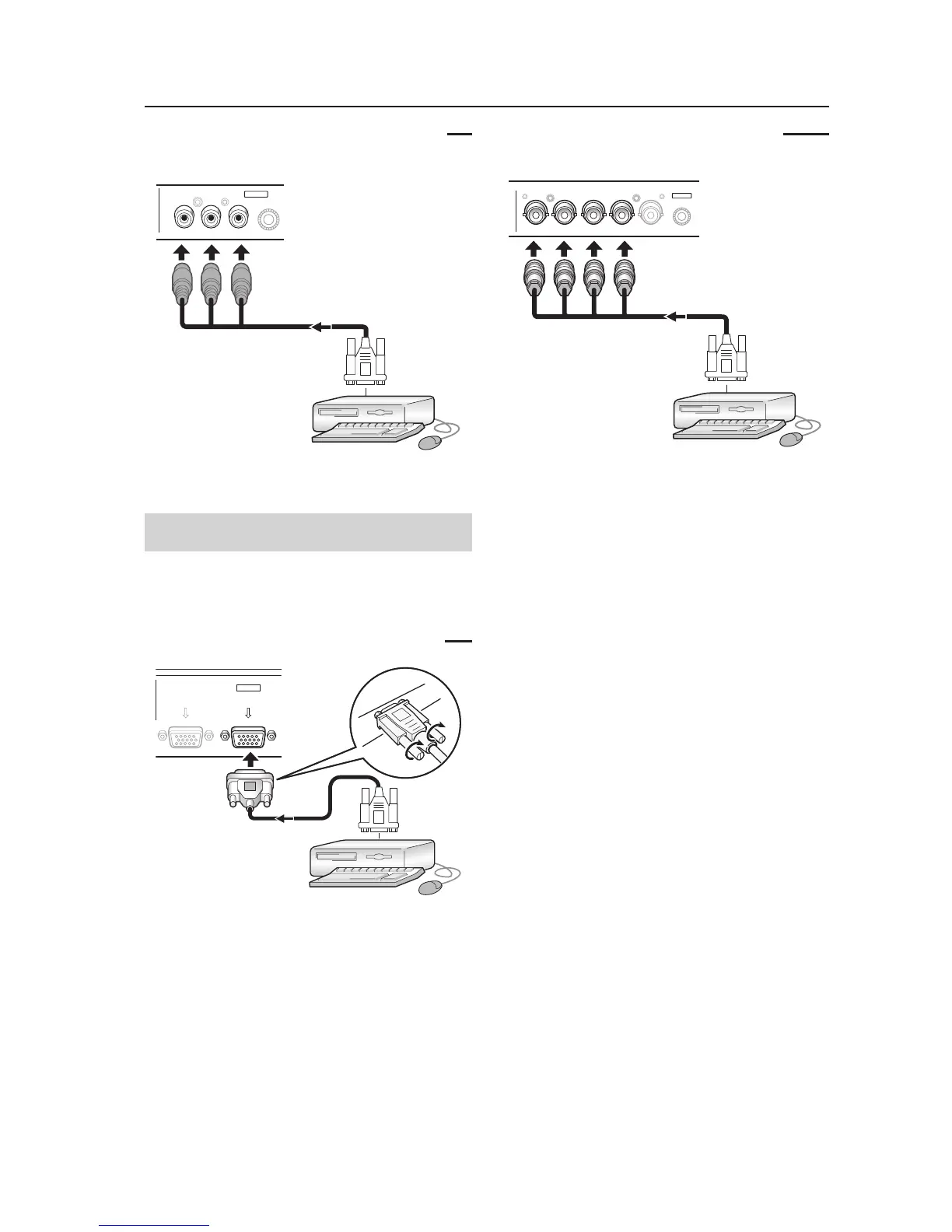

When connecting to COMPONENT VIDEO (INPUT5)
[Connections for PDA-5004]
Y Pb/Cb Pr/Cr
INPUT5
COMPONENT
VIDEO
On-screen setup is necessary after connection.
Connection of composite SYNC analog RGB
source
Make composite SYNC connections for a personal
computer with output that has the vertical
synchronization signal layered on top of the horizontal
synchronization signal.
When connecting to ANALOG RGB IN (INPUT1)
ANALOG RGB OUT
(D-Sub)
ANALOG RGB IN
(D-Sub)
INPUT1
On-screen setup is necessary after connection.
When connecting to ANALOG RGB (INPUT5)
[Connections for PDA-5003]
BR VD
HD (H/V SYNC)
G(ON SYNC)
ANALOG RGB
INPUT5
When using INPUT5, set the impedance selector
switch to match the output impedance of the
connected computer’s synchronization signal.
When the output impedance of the sync signal is below
75 Ω remove the video card and set the impedance
selector switch to 75 Ω.
On-screen setup is necessary after connection.
Notes
÷ When making composite SYNC connections, do not connect
anything to the VD jack. If connected to, the picture may not
be displayed properly.
÷ Some types of computer devices manufactured by Apple
Computer, Inc. are equipped with both G ON SYNC and
composite SYNC outputs. This type of component should
be connected using the G ON SYNC connection.
[507CMX : 427CMX]
To Next Page
