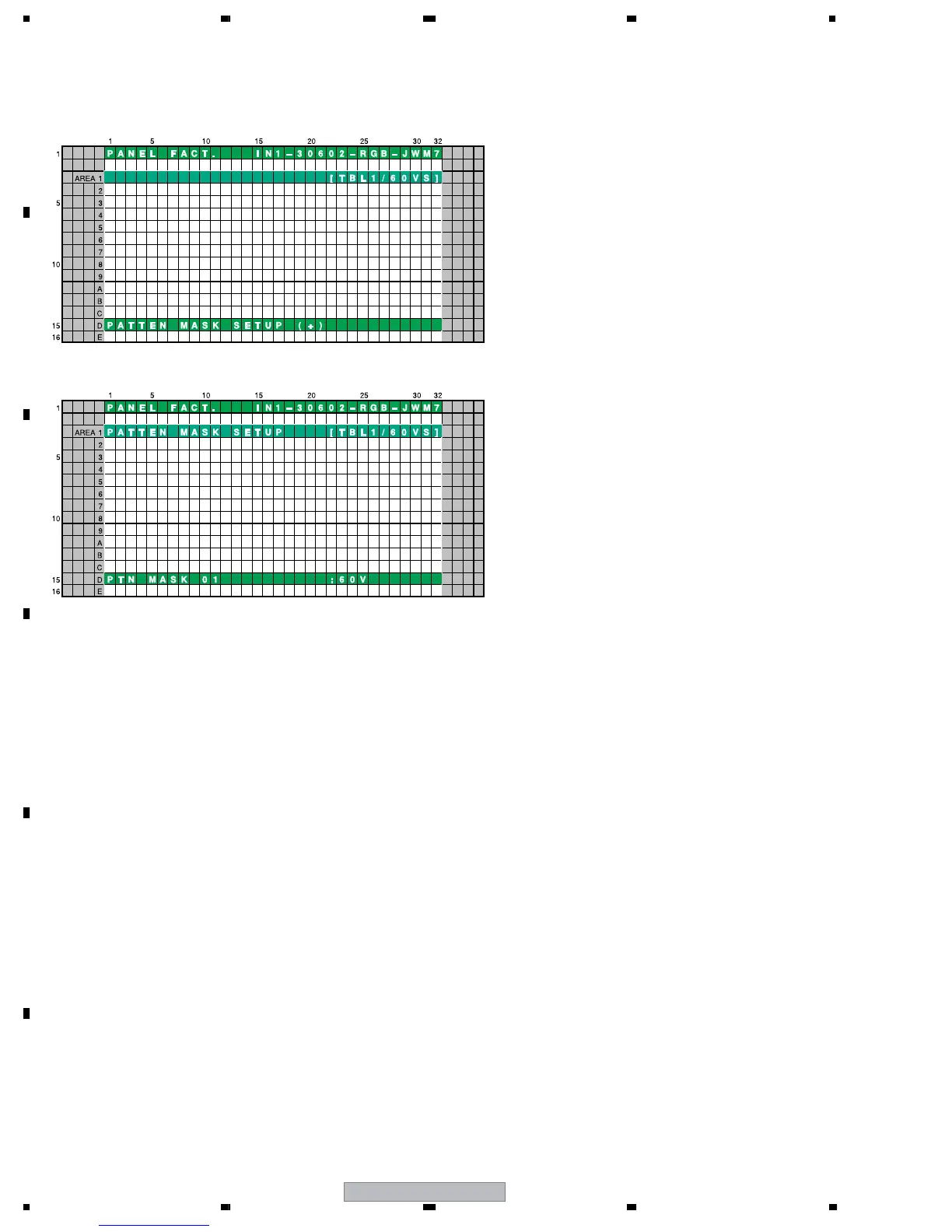

8.2.2.10 PATTEN MASK SETUP (+)

<DOWN> : Shifting to COMBI MASK SETUP (+)

<UP> : Shifting to RASTER MASK SETUP (+)

<SET> : Shifting to the next nested layer

• The MASK indication sequence can be changed among 48V, 50V, 60V, 72V, 75V, 60P, and 70P, using the Right or

Left key. The selected sequence and the ABL/WB table are retained until the mask is turned off.

• 48 V and 60 P are deleted from the sequence, and represented by 50 V and 60 V, respectively. The ABL/WB table is

changed to the PC table.

<DOWN> : Shifting to the next MASK

<UP> : Shifting to the previous MASK

<RIGHT> : Changing MASK sequence (+)

<LEFT> : Changing MASK sequence (-)

<SET> : Determining the adjustment/setting

value and shifting to the upper layer

7 Key operation

• This menu set the PATTEN MASK and the drive sequence at PATTEN MASK state.
