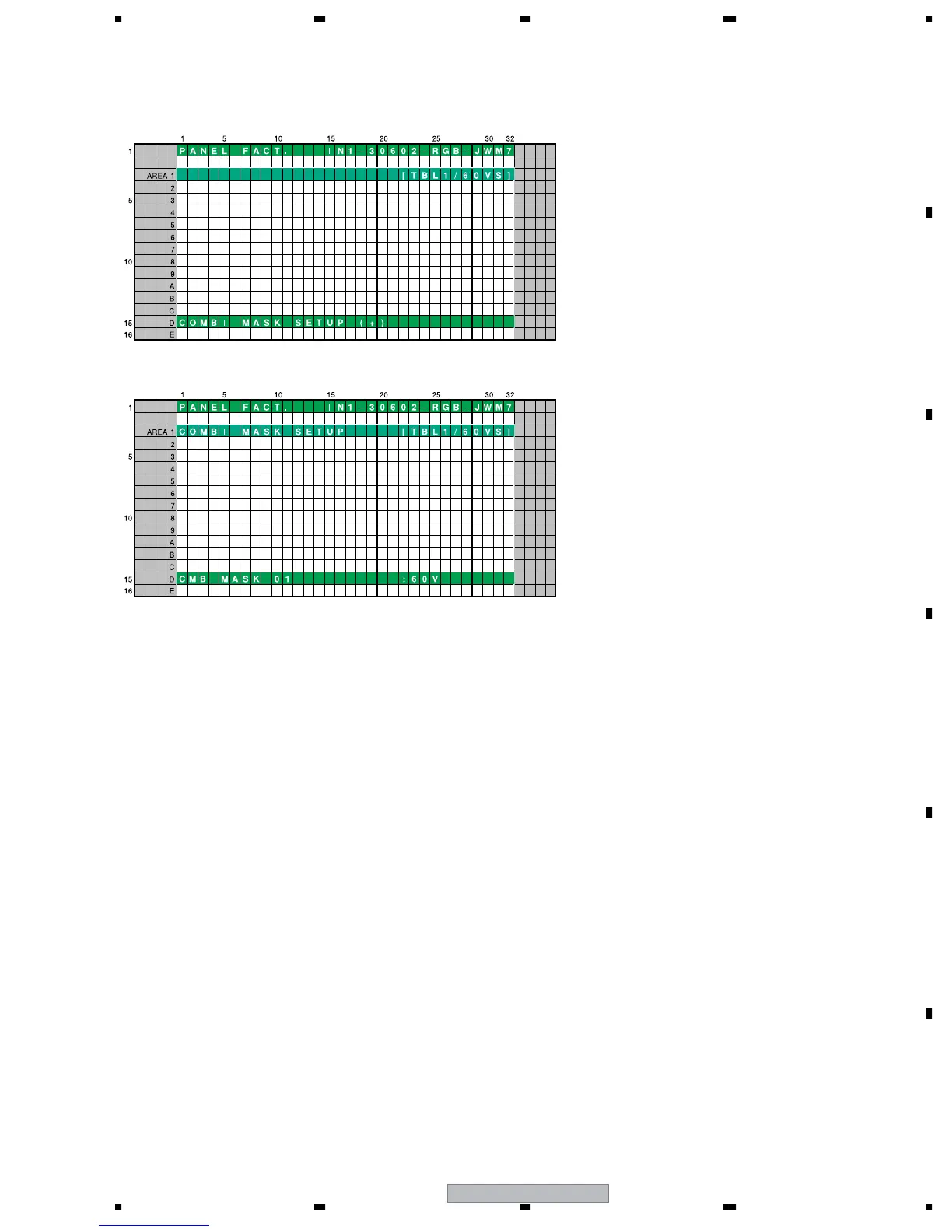

8.2.2.11 COMBI MASK SETUP (+)
<DOWN> : Shifting to PANEL INFORMATION
<UP> : Shifting to PATTEN MASK SETUP
(+)
<SET> : Shifting to the next nested layer
The MASK indication sequence can be changed among 48V, 50V, 60V, 72V, 75V, 60P, and 70P, using the Right or
Left key. The selected sequence and the ABL/WB table are retained until the mask is turned off.
48 V and 60 P are deleted from the sequence, and represented by 50 V and 60 V, respectively. The ABL/WB table is
changed to the PC table.
<DOWN> : Shifting to the next MASK
<UP> : Shifting to the previous MASK
<RIGHT> : Changing MASK sequence (+)
<LEFT> : Changing MASK sequence (-)
<SET> : Determining the adjustment/setting
value and shifting to the upper layer
7 Key operation
7 Key operation
• This menu set the COMBI MASK and the drive sequence at COMBI MASK state.
