Pioneer SC430 - Page 19

19
FX-MG8156ZT,MG8156ZT-91,MG8317ZT,MG8317ZT-91

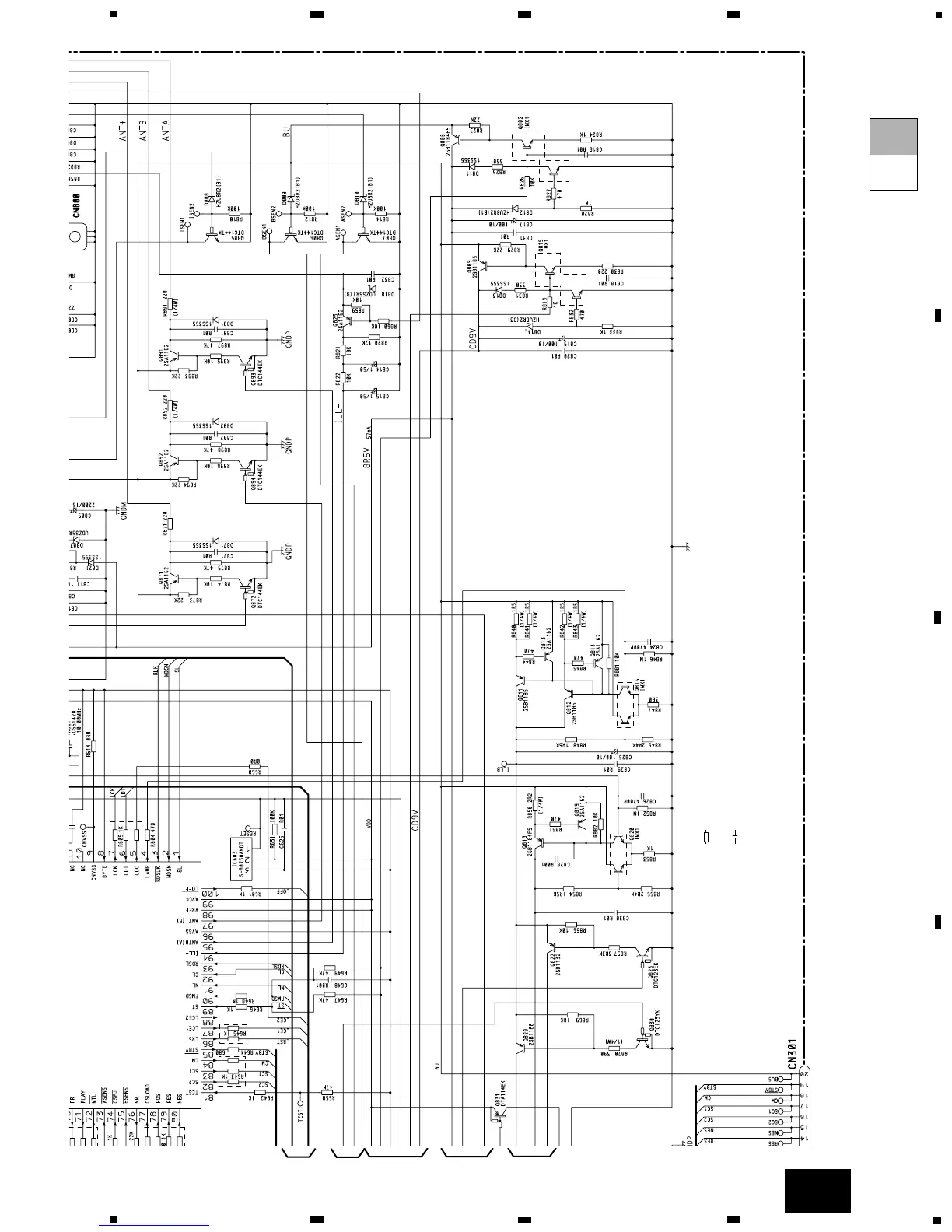

SYSTEM CONTROLLER
RESET
BACKUP SENSE
ACC SENSE
ILLUMINATION SENSE
CD9V REGULATOR AUDIO +B REGULATOR
ANTENNA POWER SWITCH
14
25
36
14
25
36
1
4
2
5
3
6
1
4
2
5
3
6
ILLUMINATION 8V REGULATORLCD BACK LIGHT POWER REGULATOR
CD ILLUMINATION SWITCH
ILLUMINATION SWITCH
ANTENNA CONTROL SWITCH
Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022
←
←
The > mark found on some component parts indicates
the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
5
6
7
8
A
B
C
D
5
6
7
8
A-a
A-b
A-b
5 7 8
6
9
