Pioneer SC430 - EXPLANATION

95
FX-MG8156ZT,MG8156ZT-91,MG8317ZT,MG8317ZT-91
7.3 EXPLANATION

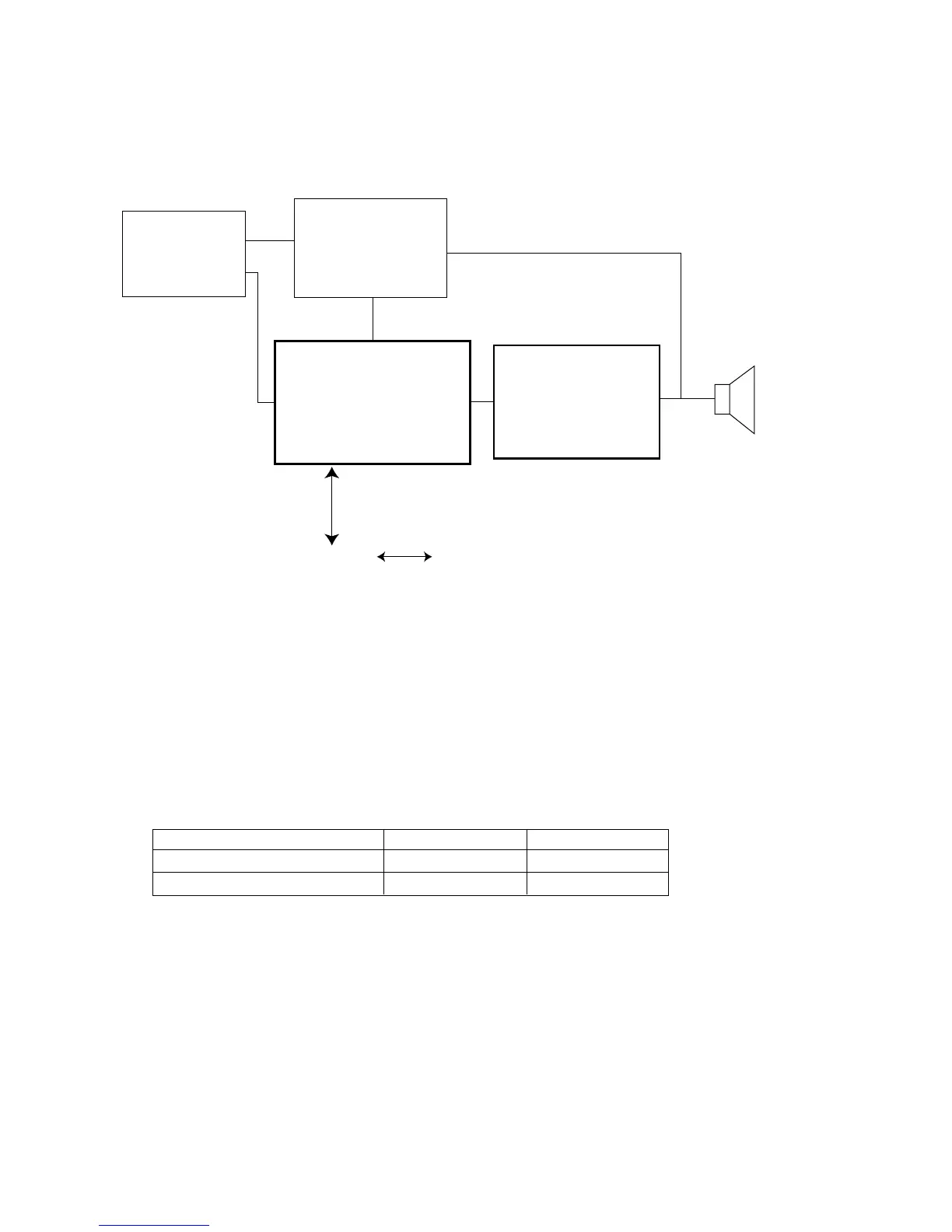

7.3.1 SYSTEM BLOCK DIAGRAM
EMV
(Other makers)
NAVI ECU
(North America,
Europe, Australia :
Other makers)
FX-MG8156ZT/EW
FX-MG8317ZT/EW
AMP
8ch DSP
GM-8117ZT/E
[or MARK LEVINSON]
Front:80Wx2.2Ω
Rear:29Wx2.6Ω
Sq, Tw:43Wx2.4Ω
Wf:80Wx2.2Ω
[or MARK LEVINSON]
Gateway ECU
Audio door
MD changer (Europe trade edition)
Steering SW
- EMV, NAVI, and TV TU depends on the model.
- MD changers are available for the European models.(Dealer options)
- Amplifier has the sound exchange function between left and right
when received BUS information from the gateway.
H/U
Special 2DIN G1 3in1
Destination H/U Amplifier
Europe FX-MG8317ZT/EW GM-8117ZT/E
Europe MARK LEVINSON FX-MG8156ZT/EW MARK LEVINSON
Product combination
