Pioneer SC430 - Disassembly; Removing the Case; Removing the Grille Assy; Removing the Chassis

83
FX-MG8156ZT,MG8156ZT-91,MG8317ZT,MG8317ZT-91

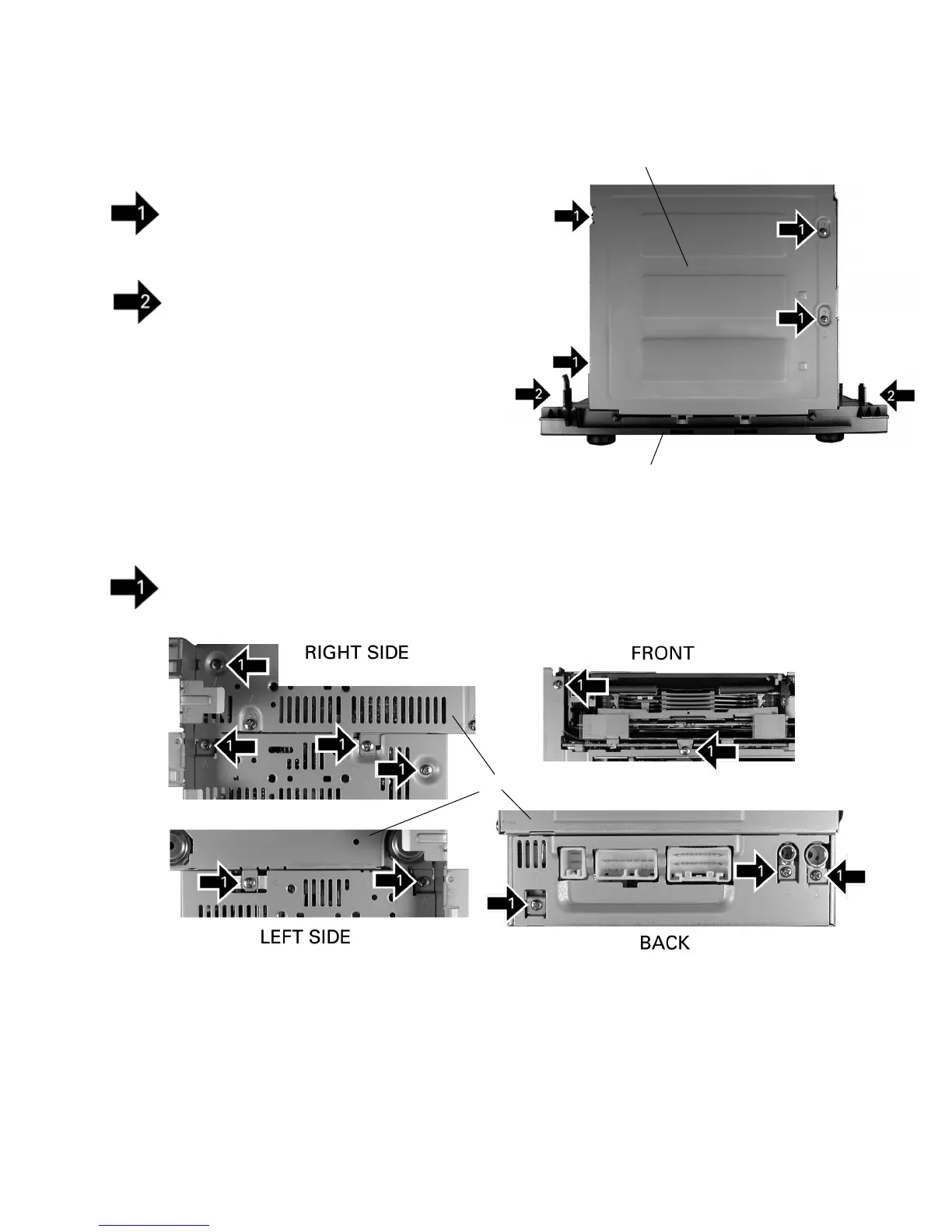

- Removing the Chassis (Fig.2)
Remove the eleven screws and then remove the Chassis.
- Removing the Case (Fig.1)
Remove the four screws and then remove the Case.
-
Removing the Grille Assy (Fig.1)
Remove the two screws.
Disconnect the connector and then remove the Grille Assy.
Fig.1
7.1.2 DISASSEMBLY
Fig.2
Case
Grille Assy
Chassis
