Pioneer XV-E51 - Page 13

XV-EV51
13
5 678
56
7
8
C
D
F
A
B
E

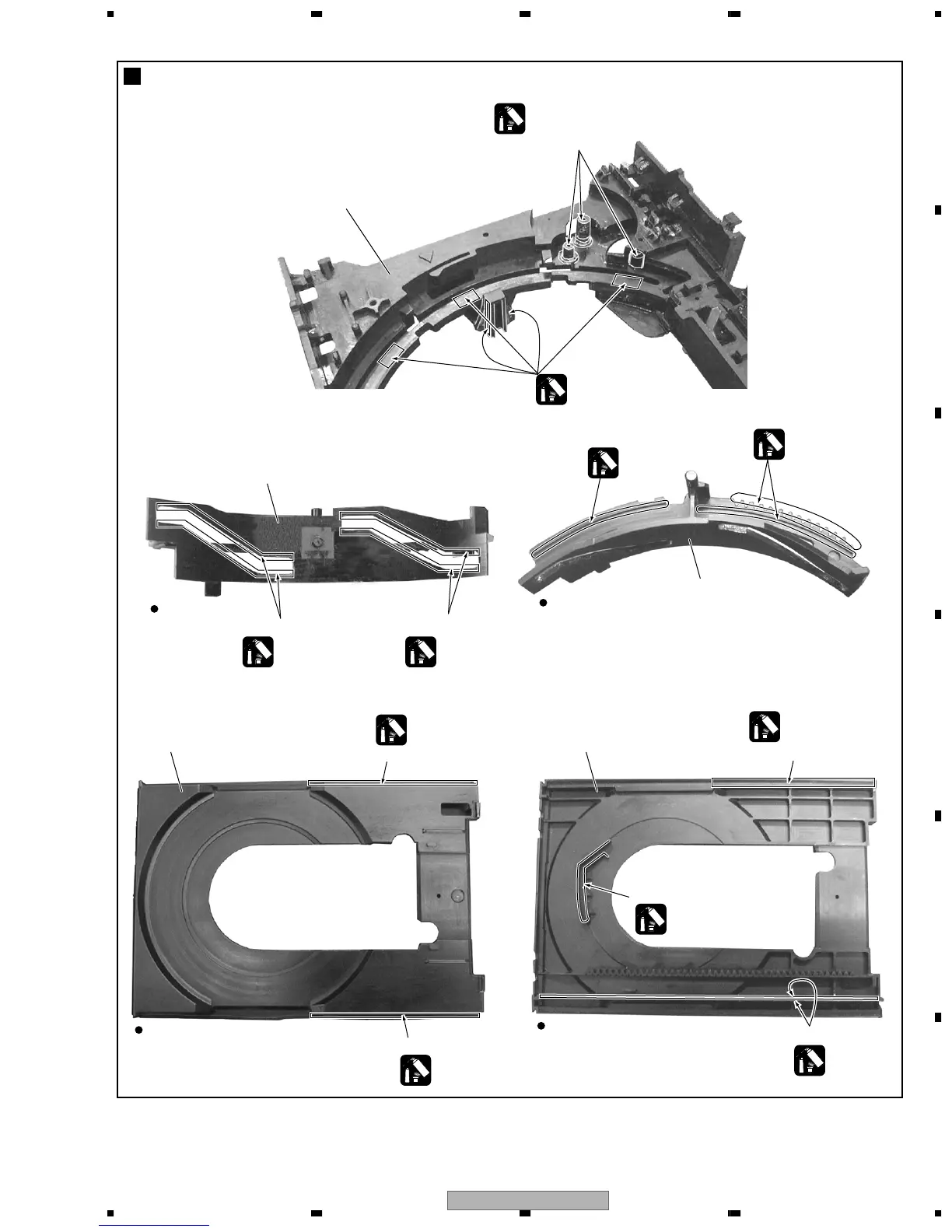

Application of Lubricant
No. 11
Loading Base
Lubricating Oil
GYA1001
Around the shaft
Concave of unevenness
Concave of unevenness
Concave of unevenness
No. 13
Drive Cam
No. 13
Drive Cam
No. 23
Tray
No. 23
Tray
Top View
Rear View
Top View
Bottom View
Daifree
GEM1036
Daifree
GEM1036
Daifree
GEM1036
Daifree
GEM1036
Daifree
GEM1036
Side of the rib
Inner side of a ditch
Inner side of a ditch
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
Inner side of a ditch
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
